MCU-Link Debug Probe

MCU-LINK Active

Roll over image to zoom in

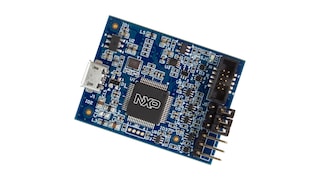

Jointly developed by NXP and Embedded Artists, MCU-Link is a powerful and cost effective debug probe that can be used seamlessly with MCUXpresso IDE, and is also compatible with 3rd party IDEs that support CMSIS-DAP protocol. MCU-Link also includes a USB to UART bridge feature (VCOM) that can be used to provide a serial connection between the target MCU and a host computer. MCU-Link is based on the LPC55S69 microcontroller, and features a high-speed USB interface for high performance debug.

MCU-Link is compatible with Windows 10 and 11, MacOS and Linux. A free utility from NXP, also included with the LinkServer package, provides an easy way to install firmware updates.
