i.MX RT1020 Crossover MCUs are based on the Arm® Cortex®-M7 core for real-time microcontroller (MCU) performance and high integration for industrial and IoT applications.

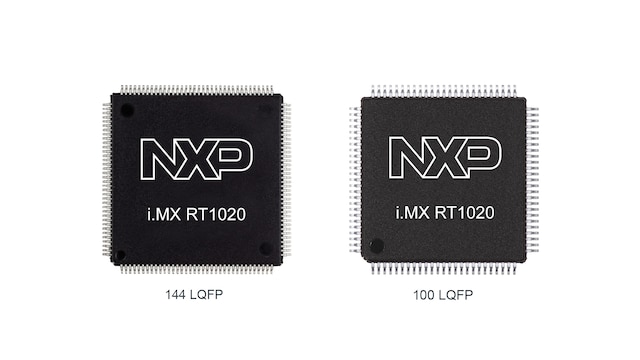

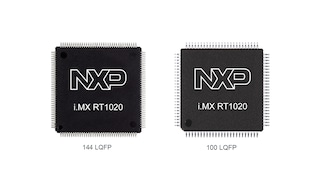

The i.MX RT1020 Arm® Cortex®-M7 operates at up to 500 MHz with 256 KB on-chip RAM that can be configured as Tightly-Coupled Memory or general purpose. This real-time MCU family offers various memory interfaces and a wide range of connectivity interfaces including UART, SPI, I²C, USB, 10/100M Ethernet and CAN. 144 LQFP and 100 LQFP packages for low-cost PCB designs.
The i.MX RT1020 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.
i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
i.MX RT1015 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 500 MHz
i.MX RT1040 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 600 MHz and Extended Temperature Range
2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4 Tri-Radio Solution
i.MX RT1024: Crossover MCU with Arm® Cortex®-M7
4 results
Include 0 NRND
Part | Order | CAD Model | Status | Core: Number of cores (SPEC) | Core Type | Operating Frequency [Max] (MHz) | SRAM (kB) | CAN | I2C | UART | USB Controllers | PWM | Junction Temperature (Min to Max) (℃) | Package Type | Package Pitch (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1 | Arm Cortex-M7 | 400 | 256 | 2 | 4 | 8 | 1 | 2 | -40 to 105 | LQFP100 | 0.5 | |||
Active | 1 | Arm Cortex-M7 | 400 | 256 | 2 | 4 | 8 | 1 | 2 | -40 to 105 | LQFP144 | 0.5 | |||
Active | 1 | Arm Cortex-M7 | 500 | 256 | 2 | 4 | 8 | 1 | 2 | 0 to 95 | LQFP100 | 0.5 | |||
Active | 1 | Arm Cortex-M7 | 500 | 256 | 2 | 4 | 8 | 1 | 2 | 0 to 95 | LQFP144 | 0.5 |
