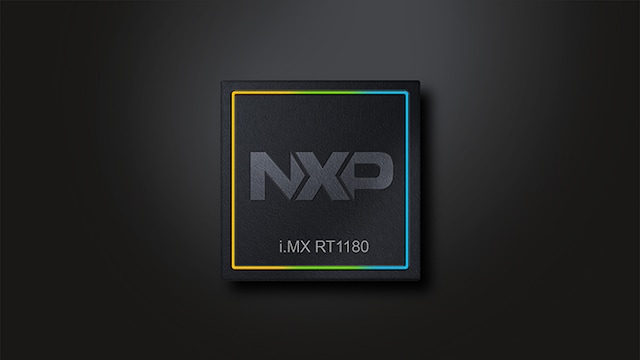

i.MX RT1180 Crossover MCUs are dual-core, real-time microcontrollers (MCUs) featuring an Arm^® Cortex^®-M7 and Arm^® Cortex^®M33 for high performance and real-time functionality. The i.MX RT1180 includes an integrated Gbps time-sensitive networking (TSN) switch and EtherCAT SubDevice Controller making it ideal for industrial applications.

The i.MX RT1180 CM7 operates at up to 800 MHz and the Arm Cortex-M33 up to 240 MHz with 1.5 MB on-chip RAM. The family supports multiple protocols, bridging communications between real-time Ethernet and Industry 4.0 systems. The i.MX RT1180 offers advanced security with the integrated EdgeLock^® Secure Enclave.

The i.MX RT1180 family is supported by the MCUXpresso developer experience, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.

Reference Manual

Application Notes

Product Details

Block Diagram

i.MX RT1180 Crossover MCU

Get diagram PDF

Features

Multicore Processing

Arm Cortex-M7 at 800 MHz and Arm Cortex-M33 at 240 MHz

Optional: single core Arm Cortex-M33

Software and Tools

MCUXpresso developer experience
- Selection of IDE choices
- Pin, clock, peripheral, security and memory config tools
- Security programming and provisioning tools
- Software development kit (SDK)
Zephyr RTOS support

Networking

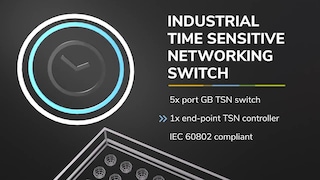

First real-time microcontroller (MCU) with an integrated Gbps time-sensitive network (TSN) switch supporting multiple protocols bridging communications between existing systems and Industry 4.0

Real-time industrial Ethernet protocols such as Profinet, Ethernet/IP, EtherCAT, CC-Link IE Field, HSR and more
Latest generation of TSN standards compliant to IEC 60802 for industrial automation
TSN based protocols such as OPC UA Pub-Sub, Profinet over TSN and CC-Link IE TSN

Up to 5 Gbps ports including 4x ports on the TSN switch (Layer 2) and 1x port on the TSN endpoint controller
L2 management with advanced flow control features including port counters, filters and more

Advanced Security

First crossover MCU with an integrated EdgeLock^® Secure Enclave

Preconfigured, self-managed, autonomous security subsystem, easing complexity of implementing robust, system-wide security for networked, industrial IoT applications

Providing component level foundation for IEC 62443 system compliance
Root of trust requirements in complex networked systems with secure boot, secure key mechanism and high performance crypto
System-level physical tamper monitoring with secure RTC and 10 tamper pins

On-Chip Memory

Up to 1.5 MB SRAM (ECC protected) with 512 KB of TCM for Arm Cortex-M7 and 256 KB of TCM for Arm Cortex-M33

Analog

High-speed 16-bit analog to digital converters
Advanced timer/PWM and delta-sigma demodulators

Temperature and Qualifications

Robust extended industrial qualification (-40°C to 125°C)

Packaging

289 MAPBGA, 14 x 14 mm, 0.8 mm pitch
144 MAPBGA, 10 x10 mm, 0.8 mm pitch
