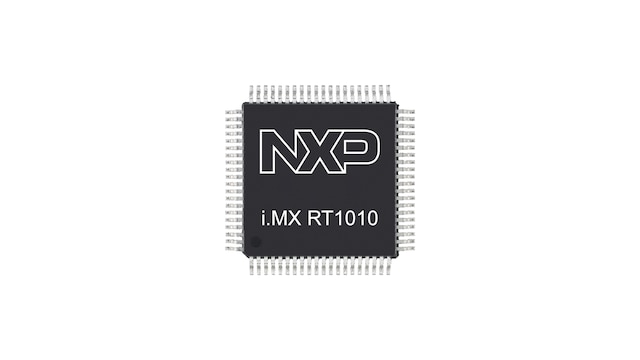

i.MX RT1010 Crossover MCUs are based on the Arm® Cortex®-M7 core for real-time performance and high integration for Industrial and IoT applications.
The i.MX RT1010 Arm® Cortex®-M7 operates at up to 500 MHz with 128 KB on-chip RAM that can be configured as Tightly-Coupled Memory or general-purpose. The family offers various memory interfaces and a wide range of connectivity interfaces including UART, SPI, I²C, and USB. 80 LQFP packages included for low-cost PCB designs.
The i.MX RT1010 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.
i.MX RT1020: Crossover MCU with Arm® Cortex®-M7

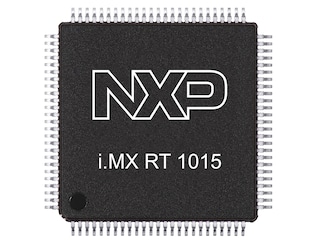

i.MX RT1015 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 500 MHz
2 results
Include 0 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Core Type | Operating Frequency [Max] (MHz) | SRAM (kB) | Serial Communication | USB Controllers | Security | PWM [Number, bits] | ADC [Number, bits] | Supply Voltage [Min to Max] (V) | PWM | Junction Temperature (Min to Max) (℃) | Package Type | Package Pitch (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 10K @ US$1.69 | 1 x Arm Cortex-M7 | 400 | 128 | 2 x I²C, 2 x SPI, 4 x UART | 1 | AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG | 4 x 16 | 1 x 12 | 3 to 3.6 | 4 | -40 to 105 | LQFP80 | 0.5 | |||
Active | 10K @ US$1.49 | 1 x Arm Cortex-M7 | 500 | 128 | 2 x I²C, 2 x SPI, 4 x UART | 1 | AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG | 4 x 16 | 1 x 12 | 3 to 3.6 | 4 | 0 to 95 | LQFP80 | 0.5 |
