i.MX RT1040 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 600 MHz and Extended Temperature Range

i.MX-RT1040 Active

Roll over image to zoom in

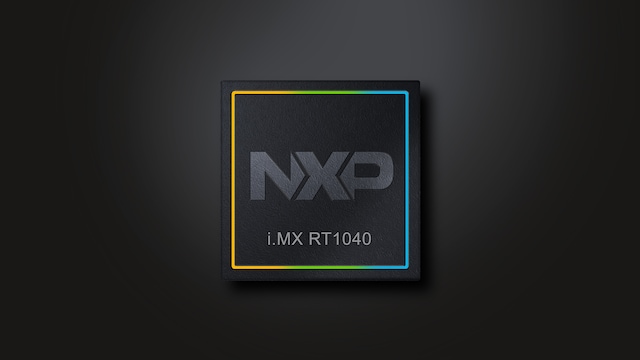

i.MX RT1040 Crossover MCUs are based on the Arm® Cortex®-M7 core for real-time performance and high integration for Industrial and IoT applications.

The i.MX RT1040 Arm® Cortex®-M7 operates at up to 600 MHz with 1MB on-chip RAM that can be configured as Tightly-Coupled Memory or general-purpose. The family offers various memory interfaces and a wide range of connectivity interfaces including UART, SPI, I²C, USB and CAN. The new i.MX RT1046 provides additional flexibility with 169 BGA compact package and an extended temperature range up to 125°C and the new i.MX RT1043 extends SRAM memory size up to 1 MB with LCD support.

The i.MX RT1040 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs, and secure provisioning and configuration tools to enable rapid development

Block Diagram

i.MX RT104x MCU

i.MX RT1040 Block Diagram
Get diagram PDF

Features

Performance

  • Arm Cortex-M7 @ 600 MHz
  • 3020 CoreMark / 1284 DMIPS
  • Real-Time, Low-Latency Response as Low as 20 ns
  • Low Dynamic Power with an Integrated DC-DC Converter
  • Low-Power Run Modes at 24 MHz

Software and Tools

  • MCUXpresso ecosystem support
    • Selection of IDE choices
    • Pin, clock, peripheral, security and memory Config tools
    • Security programming and provisioning tools
    • Software Development Kit
  • Zephyr RTOS support

Memory

  • Up to 512KB OCRAM + 512KB TCM(configurable to SRAM)
  • Extensive External Memory Interface Options
  • NAND, eMMC, QuadSPI NOR Flash and Parallel NOR Flash

Graphics

  • Advanced Multimedia for GUI and Enhanced HMI
    • 2D Graphics Acceleration Engine
    • LCD Display Controller (Up to WXGA 1366x768)
    • 3x I²S for High-Performance, Multichannel Audio

Packaging

  • MAPBGA169 9x9mm, 0.65mm pitch
  • MAPBGA169 11x11mm, 0.8mm pitch
  • MAPBGA169 7x7mm, 0.50mm pitch (New)

Temperature and Qualifications

  • Robust Extended Industrial Temperature Range -40 °C to +125oC

Wireless Connectivity Interface

  • Wi-Fi®, Bluetooth®, Bluetooth Low Energy, ZigBee® and Thread™

More

Buy/Parametrics

10 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Core: Number of cores (SPEC)

Core Type

Operating Frequency [Max] (MHz)

SRAM (kB)

CAN

I2C

UART

USB Controllers

PWM

Junction Temperature (Min to Max) (℃)

Debug & Trace

Package Type

Package Pitch (mm)

MIMXRT1041DFP6B
Data Sheet
—

Active

1

Arm Cortex-M7

600

512

2

4

8

1

4

0 to 95

JTAG

LFBGA169

0.65

MIMXRT1041XFP5B
Data Sheet
—

Active

1

Arm Cortex-M7

528

512

2

4

8

1

4

-40 to 125

JTAG

LFBGA169

0.65

MIMXRT1041XJM5B
Data Sheet
—

Active

1

Arm Cortex-M7

528

512

2

4

8

1

4

-40 to 125

JTAG

LFBGA169

0.8

MIMXRT1042DFP6B
Data Sheet
—

Active

1

Arm Cortex-M7

600

512

2

4

8

1

4

0 to 95

JTAG

LFBGA169

0.65

MIMXRT1042XFP5B
Data Sheet
—

Active

1

Arm Cortex-M7

528

512

2

4

8

1

4

-40 to 125

JTAG

LFBGA169

0.65

MIMXRT1042XJM5B
Data Sheet

Active

1

Arm Cortex-M7

528

512

2

4

8

1

4

-40 to 125

JTAG

LFBGA169

0.8

MIMXRT1043DFP6B
Data Sheet

Active

1

Arm Cortex-M7

600

1024

2

4

8

1

4

0 to 95

JTAG

LFBGA169

0.65

MIMXRT1043XFP5B
Data Sheet

Active

1

Arm Cortex-M7

528

1024

2

4

8

1

4

-40 to 125

JTAG

LFBGA169

0.65

MIMXRT1046DFQ6B
Data Sheet

Active

1

Arm Cortex-M7

600

1024

2

4

8

1

4

0 to 95

JTAG

LFBGA169

0.5

MIMXRT1046XFQ5B
Data Sheet

Active

1

Arm Cortex-M7

528

1024

2

4

8

1

4

-40 to 125

JTAG

LFBGA169

0.5
