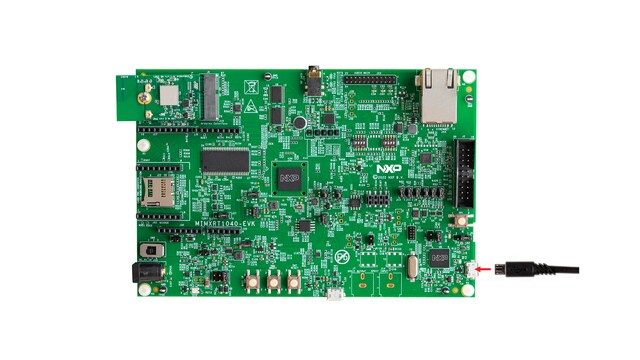

i.MX RT1040 Evaluation Kit

MIMXRT1040-EVK Active

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1040: i.MX RT1040 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 600 MHz and Extended Temperature Range

Sensors

Accelerometers

  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

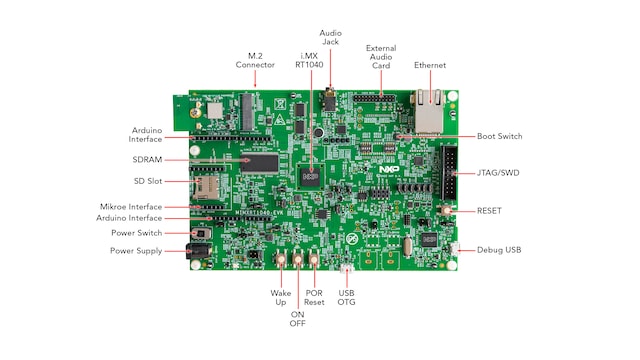

Features

Audio

  • WM8960 stereo audio codec
  • 4-pole audio headphone + microphone jack
  • External speaker connection points
  • Microphone
  • S/PDIF connector
  • Audio expansion connector

Board Memory

  • 256 Mb SDRAM memory (Winbond W9825G6KH)
  • 64 Mb QSPI Flash (Winbond W25Q64JVSSIQ)
  • TF socket for SD card

Connectivity

  • MURATA Type 1XK Ultra Small Dual band Wi-Fi 11a/b/g/n + Bluetooth 5.2 Module powered by NXP IW416
  • Micro USB host and OTG connectors
  • Ethernet (10/100 M) PHY and RJ45 connector
  • CAN/CAN-FD transceiver (NXP TJA1057GT/3)

Debug Capabilities

  • LPC-Link2 debug high speed USB probe with VCOM port
  • J-Link firmware option
  • SWO trace support
  • JTAG/SWD debug connector to allow debug of target microcontroller using an external probe

Expansion Connectors

  • Arduino UNO R3 expansion header
  • MikroE Click expansion header
  • I²C expansion connector
  • Audio expansion connector

Processor

  • MIMXRT1042XJ M5B processor

Sensors

  • NXP FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

User Interface

  • Parallel LCD display connector
  • Wake up / User button
  • User LED

Buy Options

MIMXRT1040-EVK-Image

Click to expand

  • $90.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 15
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
RK043FN66HS-CTG-Image

Click to expand

  • $44.80 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 15
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
AUD-EXP-42448-Image

Click to expand

  • $44.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
