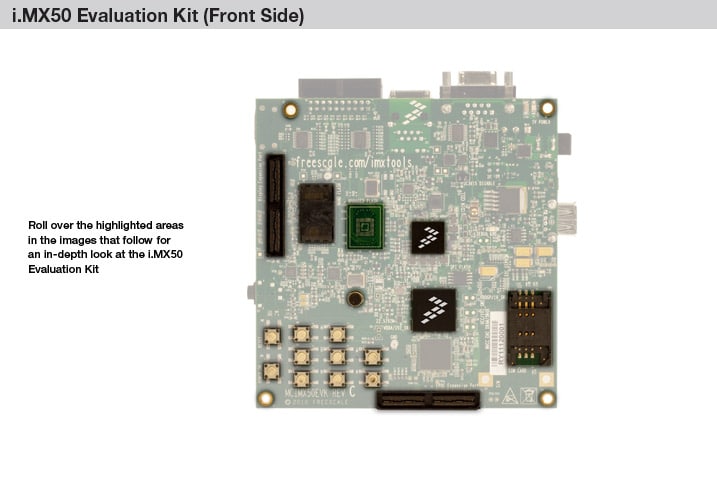

i.MX50 Evaluation Kit

IMX50EVK Active

Roll over image to zoom in

The i.MX 50 evaluation kit (EVK) offers developers a cost effective platform to develop, debug, and demonstrate their i.MX50 processor based solution.

  • The EVK supports all of the features of the i.MX50 family in a single-board design.
  • Developers can get started for under $500 and directly output via the HDMI connector, or purchase the optional LCD or optional EPD boards for maximum display flexibility.
  • Features readily available design files and board support packages (BSPs) with optimized drivers.
  • Like other i.MX solutions, the i.MX50 EVK is supported by a rich ecosystem and a community of developers at imxcommunity.org .

Product Details

Supported Devices

Processors and Microcontrollers

i.MX Mature Processors

  • i.MX502: Multimedia Applications Processors - LCD Controller, Arm® Cortex®-A8 Core
  • i.MX503: Multimedia Applications Processors - OpenVG™ 2D Graphics Acceleration Core, Sophisticated User Interface, Arm® Cortex®-A8 Core
  • i.MX507: Multimedia Applications Processors - Low Power Optimization, Integrated Electronic Paper Display (EPD), Arm® Cortex®-A8 Core

Power Management

PMICs

  • MC34708: Power Management for i.MX50/53 Processors

Audio

Audio Converters

Features

Processor subsystem

  • i.MX 50 800 MHz Arm® Cortex™-A8 processor
  • NXP® MC34708 PMIC

Memory

  • 512 MB LPDDR2 memory
  • Socket for raw NAND Flash (48-TSOP)
  • Footprint for managed NAND (eMMC/eSD)
  • SPI flash
  • Two secure digital (SD)/multimedia card (MMC) sockets

Connectivity

  • USB host connectors
  • Micro USB OTG connector
  • Ethernet (10/100T) connector
  • SIM card socket
  • Mini PCIe connector

Display

  • Parallel WVGA LCD add-on card via expansion connector
  • EPD add-on card via expansion connector
  • HDMI digital video output connector

Audio

  • NXP SGTL5000 audio codec
  • Audio HP jack
  • External speaker connection
  • Microphone

Debug

  • JTAG connector
  • One console UART

More

Buy Options

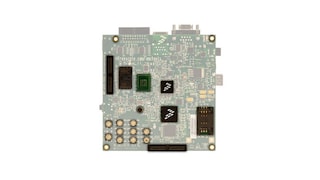

MCIMX50EVK-Image

Click to expand

  • MCIMX50EVK
    Active

  • Evaluation Kit, Hardware, i.MX50, Linux.

  • For a quantity of 1
Order from distributors
MX50EBOOKDC1-Image

Click to expand

  • MX50EBOOKDC1
    Active

  • Accessory Board, Hardware, i.MX50, E-Ink Daughter Card.

  • For a quantity of 1
Order from distributors
MCIMX50EVK11-Image

Click to expand

  • MCIMX50EVK11
    Active

  • Evaluation Kit, Hardware, i.MX50 rev 1.1, Linux.

  • For a quantity of 1
Order from distributors
IMXEBOOKDC2-Image

Click to expand

  • For a quantity of 1
Order from distributors
