i.MX35 Product Development Kit (PDK)

IMX35PDK Active

Roll over image to zoom in

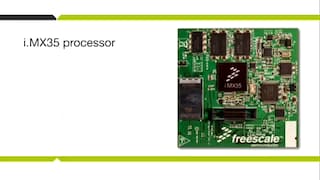

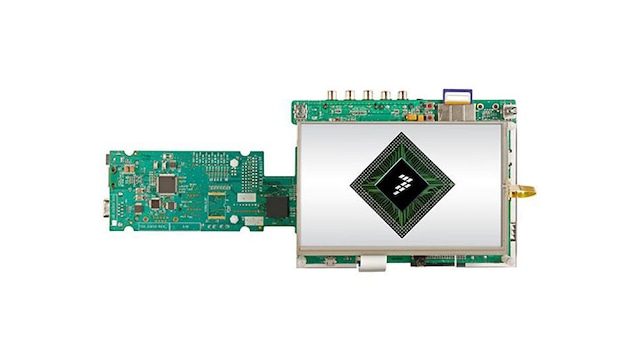

The i.MX35 Product Development Kit (PDK) provides an innovative three stack hardware platform and robust software solution to enable engineers to develop with the i.MX35 processor.

Based on the powerful Arm1136® core, the i.MX35 processor delivers a high-performance, low-power, cost-effective solution for a variety of devices, including those that require an open OS and a robust user interface such as automotive infotainment, portable navigation devices and human machine interface (HMI) applications.

Building on the success of the i.MX31 and i.MX27 PDKs, this comprehensive hardware and software development kit allows customers faster time to market by providing maximum re-use.

Supported Devices

Processors and Microcontrollers

i.MX Mature Processors

  • i.MX351: Multimedia Applications Processors - Audio Connectivity, Automotive Applications
  • i.MX353: Multimedia Applications Processors - Connectivity, Arm11™ Core
  • i.MX355: Multimedia Applications Processors Based on Arm11™ Core
  • i.MX356: Multimedia Applications Processors - Arm11™ Core, Vector Graphics Hardware Accelerator
  • i.MX357: Multimedia Applications Processors - LCD Controller, OpenVG™, Camera Interface, Arm11™ Core

Power Management

PMICs

  • MC13892: Power Management IC (PMIC) for i.MX35/51

Audio

Audio Converters

Features

General Features

  • Modular hardware enabling multiple connectivity technologies
  • Optimized development software for Linux®, Windows® Embedded CE 6.0 and open operating systems
  • Out-of-box experience, complete with demonstration software and performance data
  • Maximum performance and power savings
  • Complete "Design. Debug. Demo." capability as simple as 1,2,3
  • $1,500 USD

i.MX35 Applications Processor Module

  • Arm11™
  • Memory
    • 256 MB NAND FLASH
    • 64 MB NOR FLASH
    • 2 GB NAND FLASH
  • Power Management (PMIC MC13982) + Power Circuitry
  • Audio codec (SGTL 5000)

Debug Module (Software Development)

  • Debug ethernet port
  • Debug serial port
  • JTAG
  • Reset, interrupt, boot switches
  • Debug LEDs
  • CodeTest interface
  • Power source
  • Current / power monitoring

Personality Module (Demo-Ready)

  • User I/O
  • 7" TFT WVGA screen display with touchscreen
  • CMOS image sensor
  • U/I connector for display / keypad
  • Auxiliary video input for display from external video source
  • CAN connector
  • Two USB ports
  • 10/100 ethernet port
  • MLB interface
  • SD card, ATA, HDD interfaces

More
