The i.MX 8M Plus EVK provides a platform for comprehensive evaluation of the i.MX 8M Plus Quad/Dual and i.MX 8M Plus QuadLite applications processors. It delivers high performance with power efficiency, machine learning and voice and vision capabilities, advanced multimedia interfaces and Wi-Fi/BT for connectivity out-of-the box.

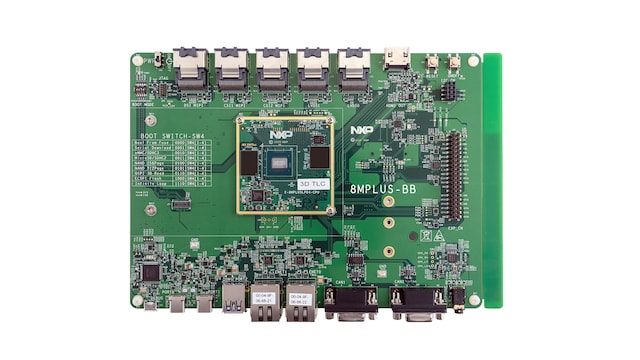

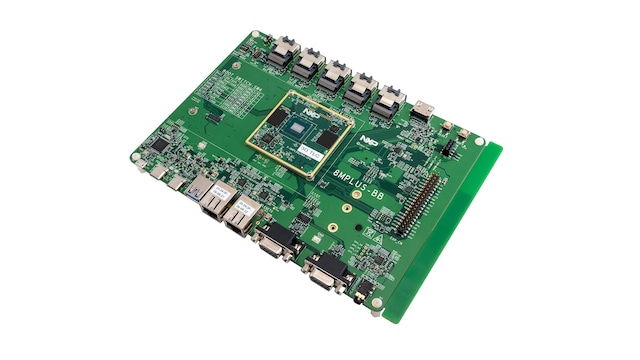

The two-board solution consists of a compact 2.3”x2.3” compute module and a larger base board that brings out the broad connectivity that is needed for product evaluation. The compute module is a proven, compact reference to accelerate your own design.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

IMX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53, Machine Learning, Vision, Multimedia and Industrial IoT

Features

Processor

i.MX 8M Plus Quad applications processor
4x Arm^® Cortex-A53 up to 1.8 GHz
1x Arm^® Cortex-M7 up to 800 MHz
Cadence^® Tensilica^® HiFi4 DSP up to 800 MHz
Neural Processing Unit

Memory

6 GB LPDDR4
32 GB eMMC 5.1
32 MB QSPI NOR

Display and Camera Interfaces

1x MIPI-DSI interface (Mini-SAS connector)
1x LVDS interface (Mini-SAS connector)
2x MIPI-CSI interfaces (Mini-SAS connector)
1x HDMI 2.0a connector with eARC

Wireless

AzureWave AW-CM276MA (NXP 88W8997): Wi-Fi 5 (802.11ac) 2x2 dual-band (2.4/5GHz) and Bluetooth 5.1

Audio

Audio DAC
Microphone/headphone jacks

Connectivity

2x 10/100/1000 Ethernet port (1x w/ TSN)
USB 3.0 Type C for Power
USB 3.0 Type A
USB 3.0 Type C
PCIe M.2 interface
2x CAN DB9 Female connectors

Debug

JTAG Connector

Tools and OS support

Linux
Android
FreeRTOS

Buy Options

Click to expand

8MPLUSLPD4-EVK
Active
Evaluation Kit for the i.MX 8M Plus Applications Processor.

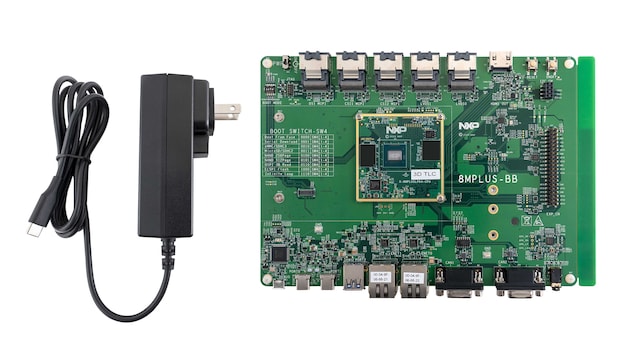

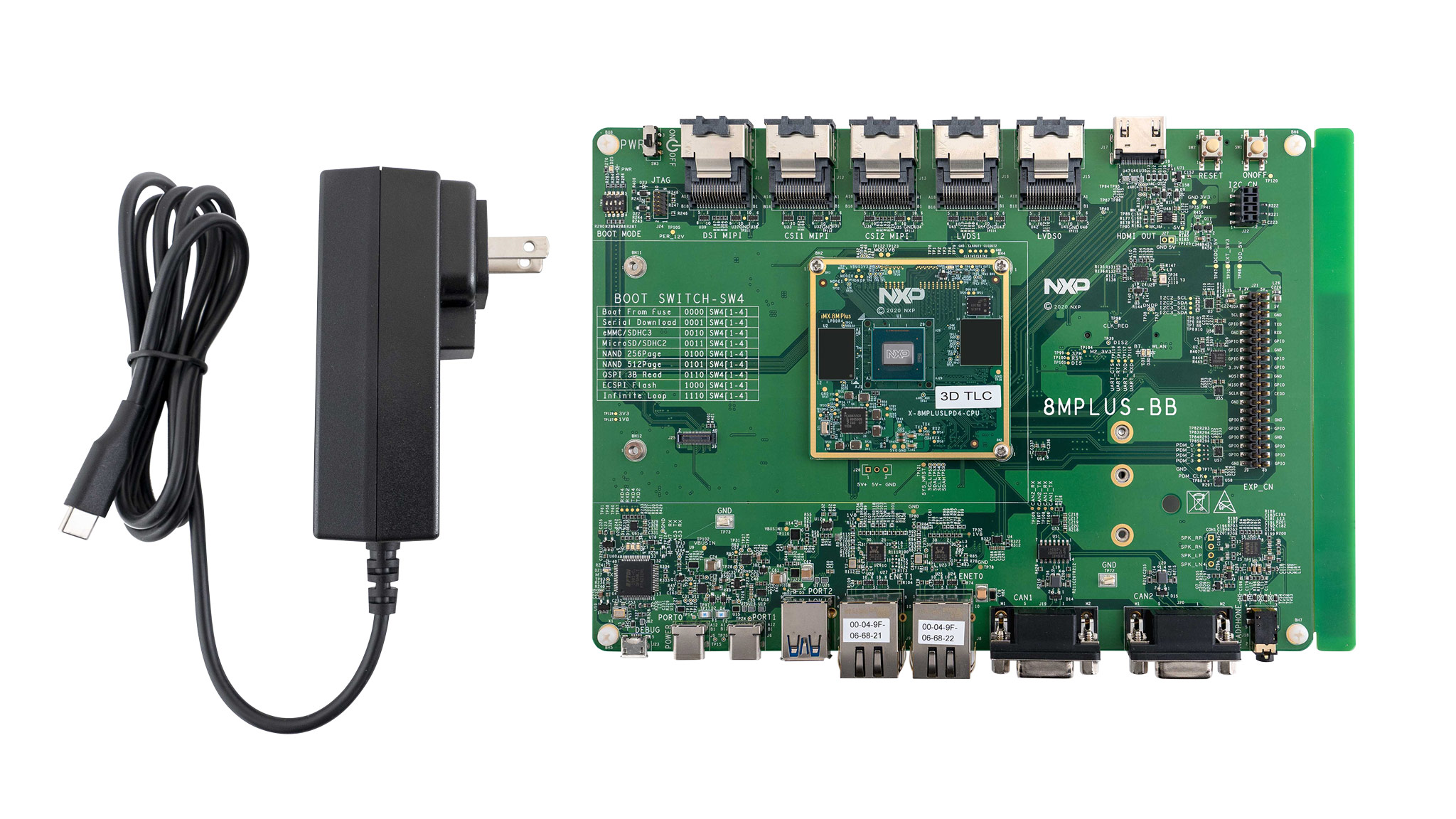

Kit contains:
- i.MX 8M Plus CPU module
- Base board
- USB 3.0 to Type C cable.
- USB A to micro B cable
- USB Type C power supply

- Availability: In Stock
- Inventory: 15
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Related Hardware

Quick reference to our board types.

2 hardware offerings

Evaluation and Development Boards

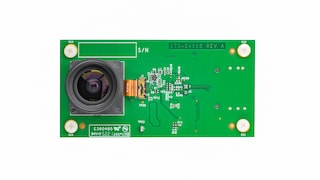

4K MIPI CMOS Camera ModuleActive

4K-MIPI-CMOS-CAMERA-MODULESimilar
Evaluation and Development Boards

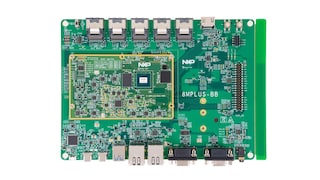

i.MX 8M Plus Evaluation Kit Enabling Power MeasurementActive
