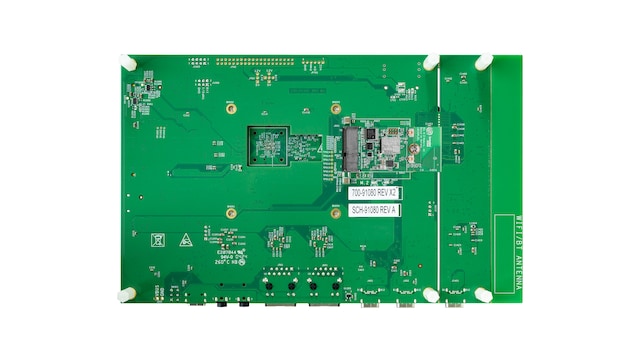

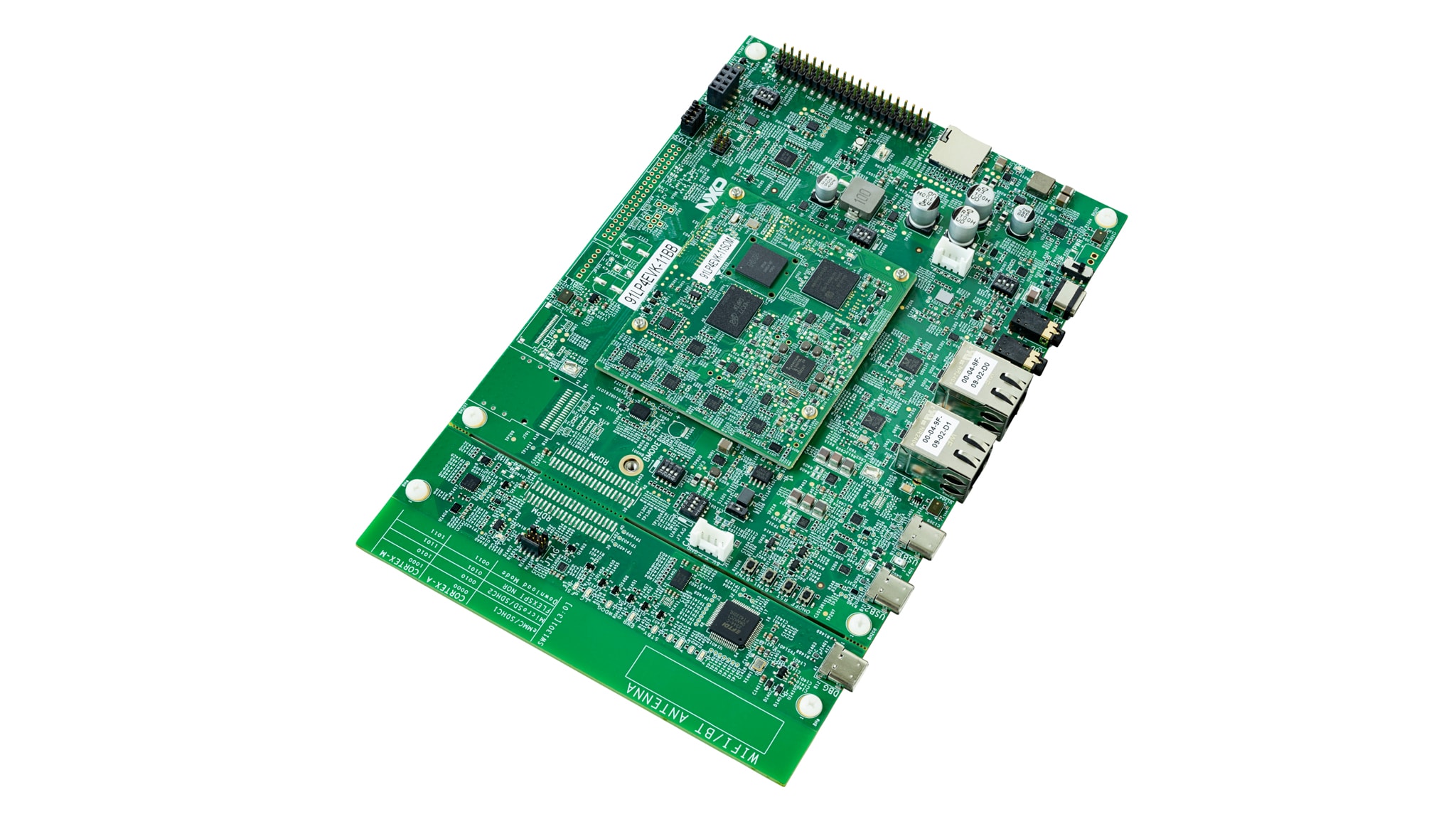

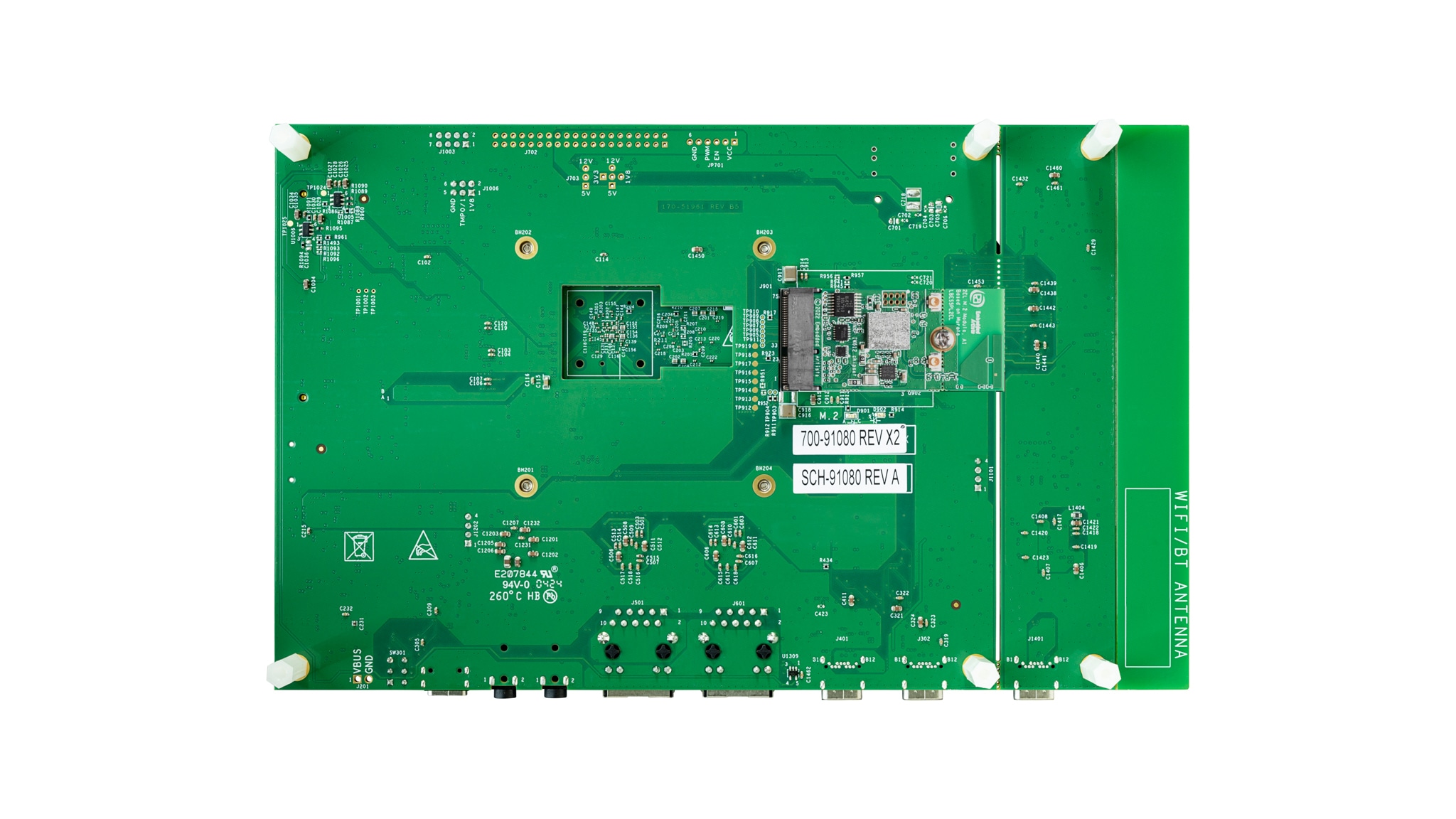

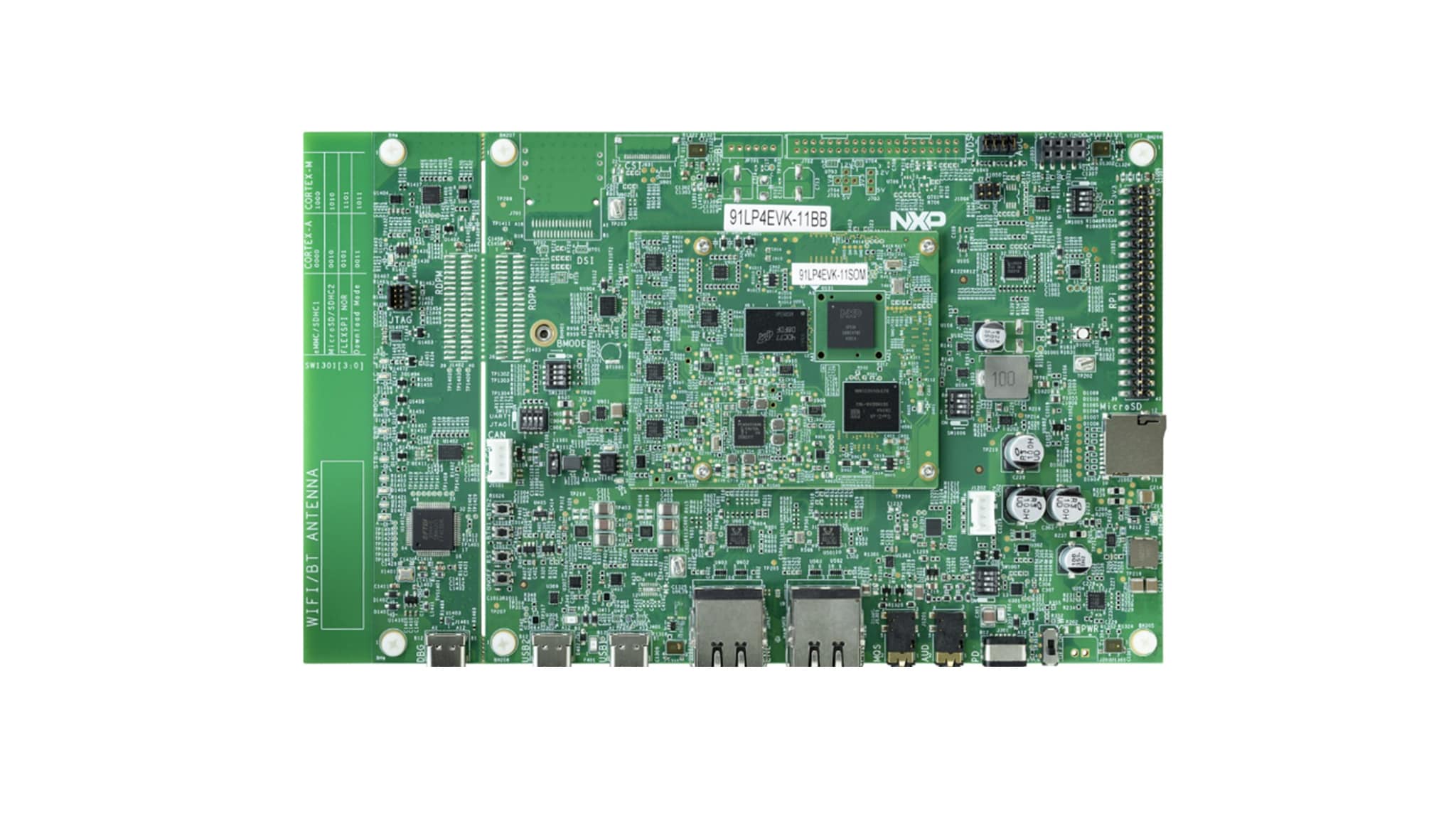

The i.MX 91 EVK provides a platform for comprehensive evaluation of the i.MX 91 applications processors and also includes the ability to measure power consumption on the power rails.

The kit includes two interconnected boards:

A compute module (standard 6-layer technology) containing a superset i.MX 91 SoC, 2 GB LPDDR4, 16 GB eMMC, NXP’s PMIC (PCA9451A) and power monitoring circuits.

A connectivity base board, which includes a standard M.2 KEY-E slot for plugging in off-the-shelf connectivity modules, such as Wi-Fi/Bluetooth modules from NXP partners.

The Linux-based board support package software is preloaded to boot from the compute module eMMC memory. This includes a rich GoPoint application to explore preinstalled demos. This kit provides an excellent starting point to accelerate your own design.

Design Files

Software

Product Details

Block Diagram

i.MX91-LPD4 EVK

Get diagram PDF

Supported Devices

Interfaces

General Purpose I/O (GPIO)

PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander

3.3 V / 5 V IO CAN Transceivers

TJA1051: High-Speed CAN Transceiver

USB Interfaces

PTN5110: USB PD TCPC PHY IC

Power Management

PMICs

PCA9451A: PCA9451A Power Management IC for i.MX 93x/91x Application Processor

Load Switches

NX20P3483UK: USB PD and Type-C High-Voltage Sink/Source Combo Switch with Protection
NX20P5090UK: High-Voltage USB PD Power Switch
NX20P0407: USB Type-C CC and SBU Protection IC

Processors and Microcontrollers

i.MX 9 Processors

i.MX91: Secure, Energy-Efficient i.MX 91 Family Brings Essential Linux^® Capabilities for Thousands of Edge Applications

Features

Processor

i.MX 91 Applications Processor
Cortex-A55 @1.4G
EdgeLock® Secure Enclave

Memory

2 GB LPDDR4
16 GB eMMC5.1
MicroSD slot

Display and Camera Interfaces

Parallel RGB LCD (2x20 EXPI)
Parallel Camera (2x20 EXPI)

Wireless

M.2 module with NXP’s Wi-Fi 6 Tri-radio IW610/IW612

Audio

Audio HP Jack
External Speaker Connection
MQS Support
Audio HAT Board Support
PDM MIC Array Support

Connectivity

x2 USB C 2.0 Connectors
2x GbE RJ45
CAN (HDR)
2x20 EXPI
Aux I²C Module Support
x4 CH ADC Support

Sensors

I3C IMU support

Security

Tamper support

Tools and OS Support

Linux®

Click to expand

IMX91LP4EVK-11CM
Active
i.MX 91 Evaluation Kit.
Kit Contains
- i.MX91-EVK board
- 1x USB 3.0 to Type C cable
- 1x USB Type C power delivery AC/DC
- 1x Type C to Type A adapter
- M.2 WIFI/BT Module

$470.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 15
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
