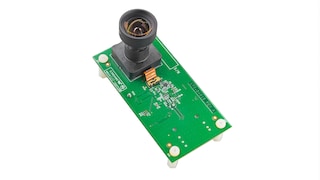

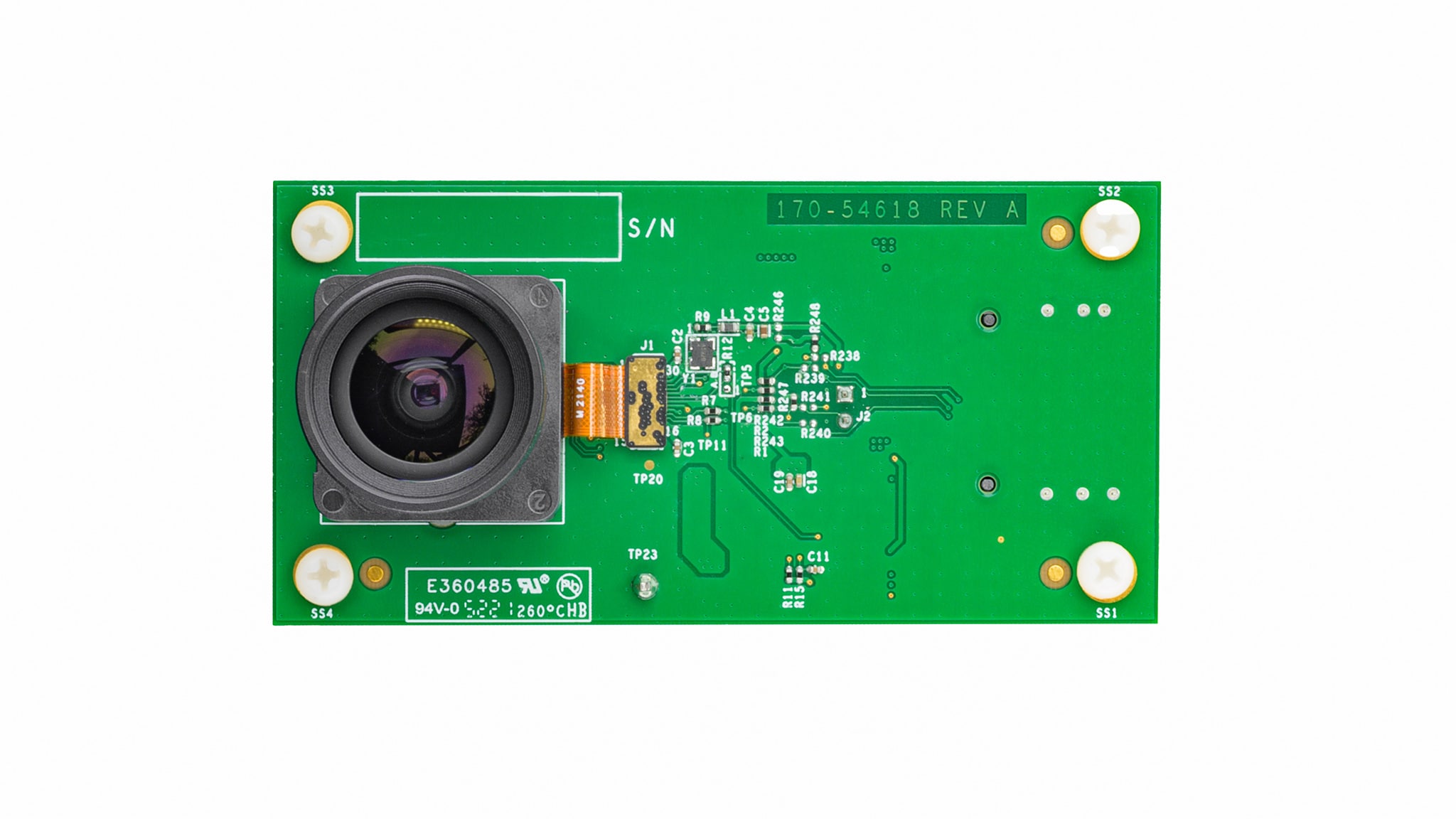

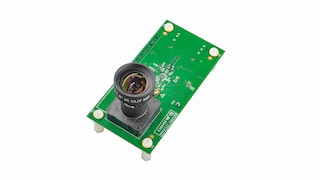

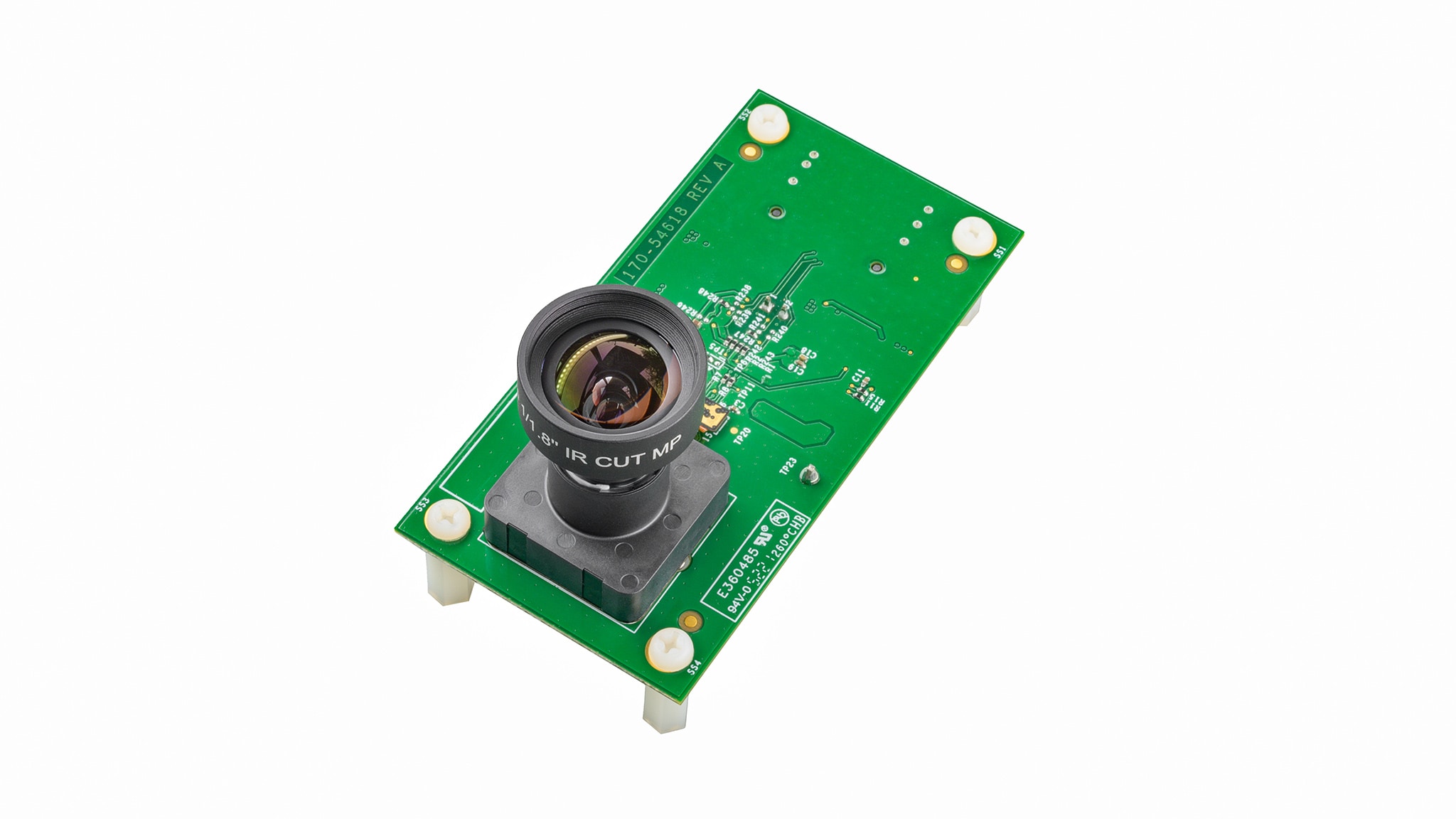

4K MIPI CMOS Camera Module

4K-MIPI-CMOS-CAMERA-MODULE Active

Roll over image to zoom in

The camera module can be used for consumer applications that require high-resolution image capture.

  • The 4K CMOS camera module uses OS08A20 sensor from OmniVision.
  • It is a high performance,1/2-inch, 8 megapixel (8MP), CMOS image sensor that delivers 3840x2160 at 30 fps.
  • It provides full-frame and windowed 10/12-bit MIPI/LVDS images in various formats.
  • The module can be enabled easily using the i.MX 8M Plus applications processor evaluation kit (EVK) for applications requiring vision.
  • The camera module driver is optimized for the i.MX 8M Plus SoC. The processor includes dual ISPs and provides excellent image quality.

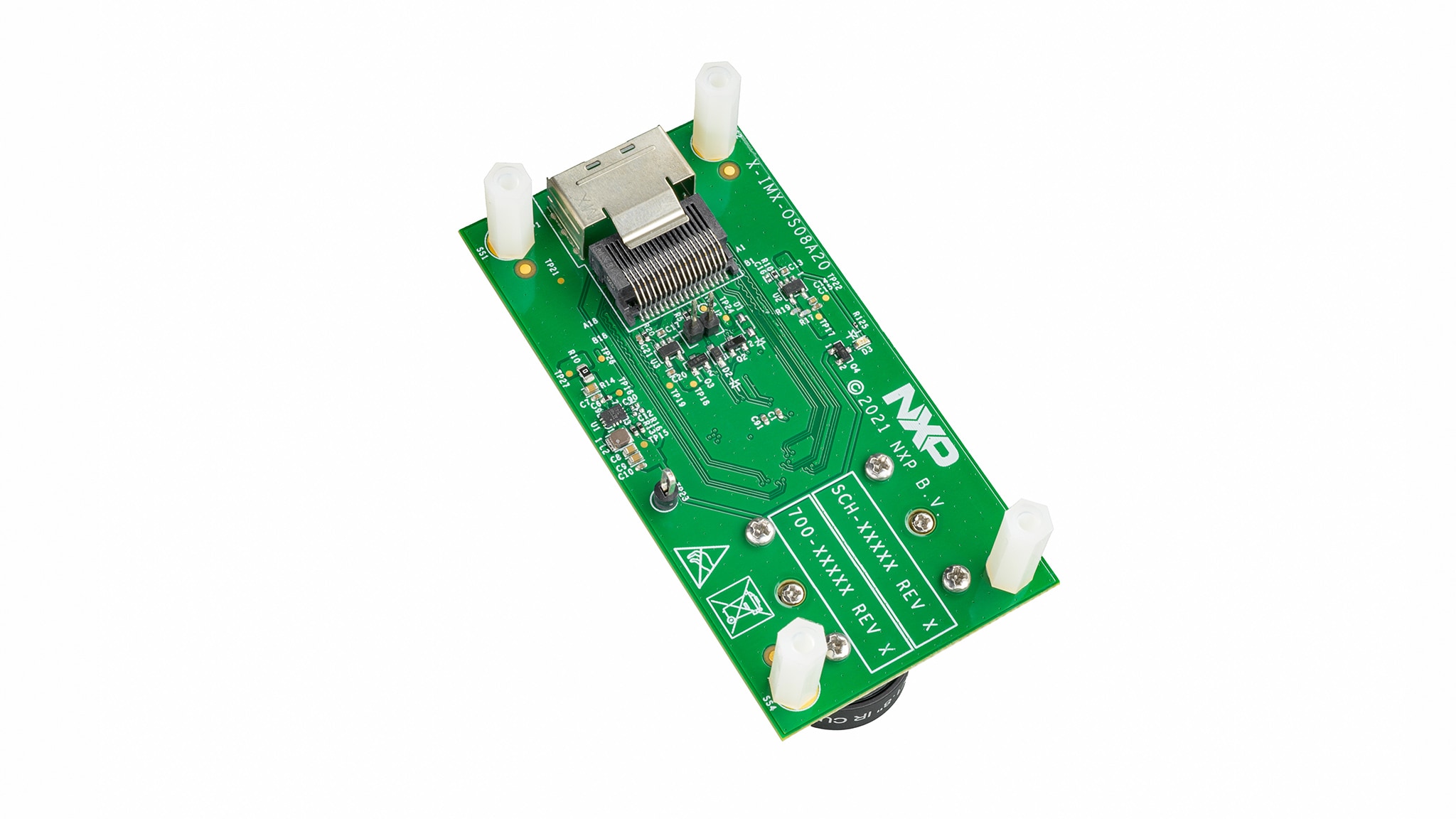

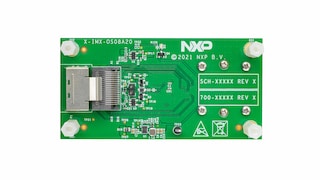

  • The camera kit includes an 8MP image sensor, a MINI-SAS cable and an adapter board to connect the EVK board and the sensor by MINI-SAS connectors.

Product Details

Features

Image Sensor

  • Color CMOS 8 Megapixel PureCel Image Sensor with Nyxel Technology
  • 2um x 2um pixel
  • Supports output formats: 10/12-bit RAW RGB
  • Supports images sizes: 4K (3840x2160), 2560x1440, 1080p (1920x1080), 720p (1280x720)
  • 2-exposure staggered HDR support
  • Light Sensing Mode (LSM)
  • PLL with SSC support

Frame Rate

  • 4K@30FPS

Max S/N ratio

  • 39 dB

Dynamic Range

  • 74 dB @ 16x gain

Buy Options

IMX-OS08A20-Image

Click to expand

  • $250.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 29
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
