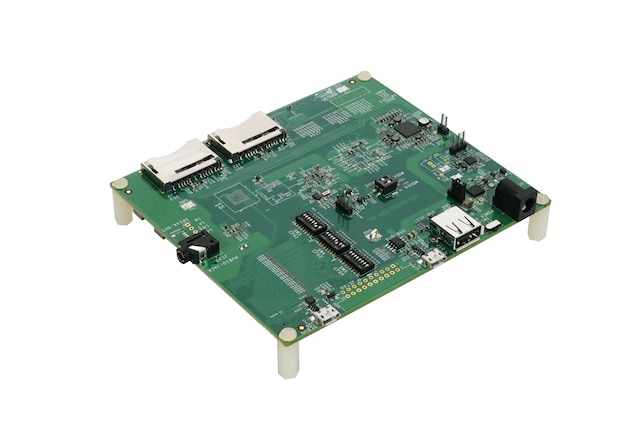

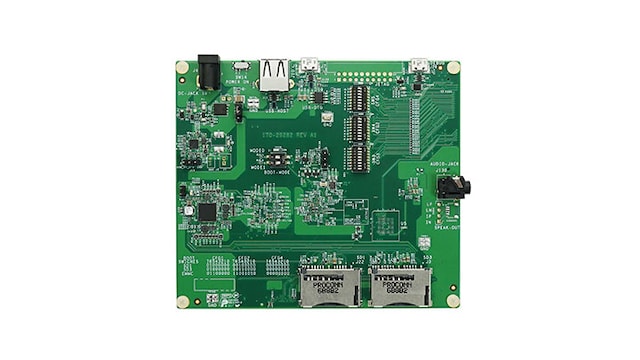

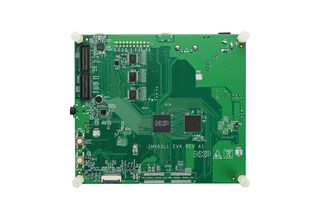

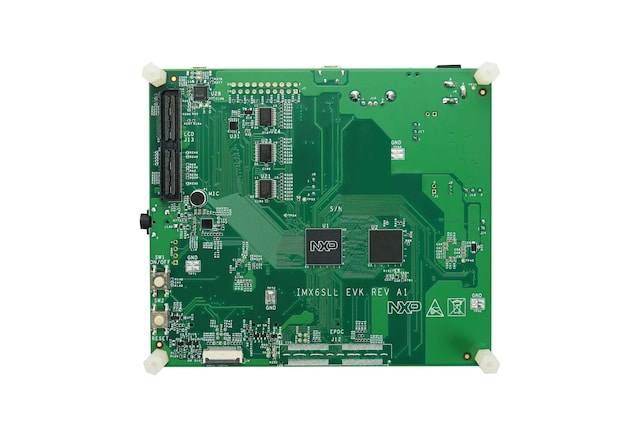

Evaluation kit for the i.MX 6SLL Applications Processor

MCIMX6SLL-EVK Active

Roll over image to zoom in

NXP® delivers highly-flexible, market-focused development tools with an Evaluation Kit (EVK) based on the i.MX 6SLL applications processor.

The processor features NXP’s advanced implementation of a single Arm® Cortex®-A9, which operates at speeds up to 1GHz. The processor provides a 32-bit DDR interface that supports LPDDR2 and LPDDR3. In addition, there are a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth™, GPS, hard drive, displays, and camera sensors.

This EVK enables EPDs with touch control and LCD display, audio playback and the ability to add WLAN, a 3G modem or Bluetooth® wireless technology. Additionally, the EVK facilitates software development with the ultimate goal of faster time to market through the support of Linux® OS operating systems.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 6 Processors

  • i.MX6SLL: i.MX 6SLL Processors - Single-Core Processor with Arm® Cortex®-A9 Core

Features

Processor

  • i.MX 6SLL 1 GHz based on Arm® Cortex®-A9 CORE
  • NXP® PF0100 PMIC

Memory

  • LPDDR3 running at 400 MHz
  • Footprint for eMMC
  • 2 x SD/multimedia card (MMC) sockets

Display

  • Footprint for EPD connector
  • LCD daughter card

Audio

  • Wolfson WM8962 audio codec
  • Audio HP jack
  • External speaker connection
  • Microphone

Connectivity

  • USB host connectors
  • Micro USB OTG connector

Debug

  • JTAG connector (footprint)
  • One console UART

Buy Options

MCIMX6SLL-EVK-Image

Click to expand

  • $228.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
