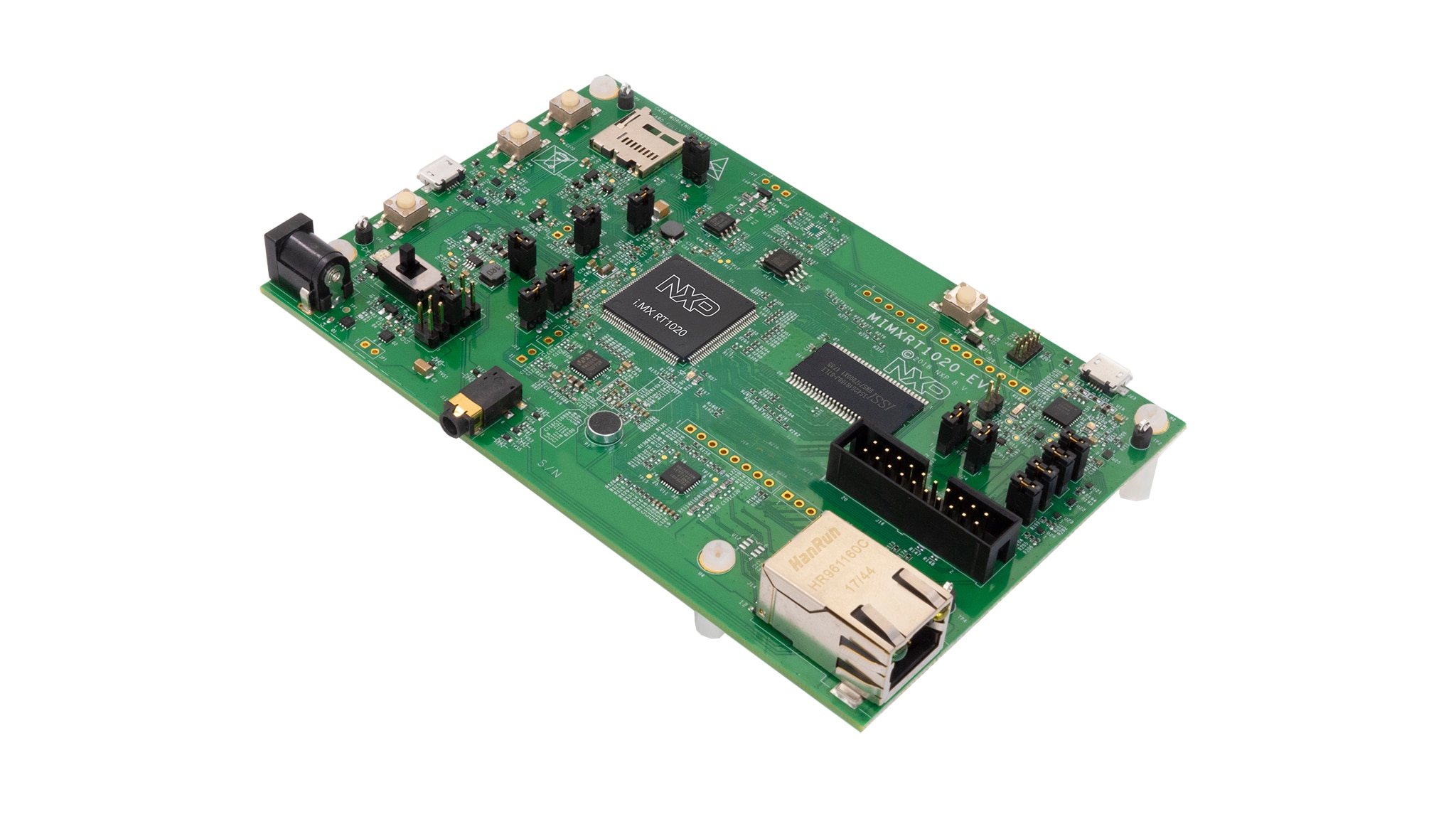

i.MX RT1020 Evaluation Kit

MIMXRT1020-EVK Active

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1020: i.MX RT1020: Crossover MCU with Arm® Cortex®-M7

Power Management

Load Switches

  • NX5P3090UK: USB PD and Type-C Current-Limited Power Switch

Features

Processor

  • MIMXRT1021DAG5A processor

Memory

  • 256 Mb SDRAM memory
  • 64 Mb QSPI Flash

Audio

  • Audio codec
  • 4-pole audio headphone jack
  • External speaker connection
  • Microphone

Connectivity

  • Micro USB host and OTG connectors
  • Ethernet (10/100T) connector
  • CAN transceivers
  • Arduino® interface
  • TF socket for SD card

Tools and OS Support

  • MCUXpresso SDK with optional FreeRTOS support
  • MCUXpresso IDE
  • MCUXpresso Config Tools
  • Zephyr® OS

Buy Options

MIMXRT1020-EVK-Image

Click to expand

  • MIMXRT1020-EVK
    Active

  • i.MX RT1020 Evaluation Kit.

  • Kit Contains

    • MIMXRT1020-EVK board
    • USB cable (Micro B)
  • $67.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
