Evaluation Kit for the i.MX 8M Nano UltraLite Applications Processor

8MNANOD3L-EVK Active

Roll over image to zoom in

The i.MX 8M Nano UltraLite EVK provides a platform for rapid evaluation of the i.MX 8M Nano UltraLite applications processors utilizing 1, 2, or 4x Arm® Cortex®-A53 cores and 1x Cortex-M7 core. It offers affordable high performance, flexible options for memory and high-speed interfaces, as well as optimized audio capabilities. The i.MX 8M Nano UltraLite EVK comes with a base board and a CPU board (compute module). They are delivered pre-connected as a single EVK system.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7

Power Management

PMICs

  • PCA9450: Power Management IC (PMIC) for i.MX 8M Mini/Nano/Plus

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution

Features

Processor

  • i.MX 8M Nano UltraLite applications processor
  • 4x Arm Cortex-A53 @ 1.4 GHz
  • 512 KB L2 cache
  • 1x Arm Cortex-M7 @ 750 MHz

Memory

  • DDR3L x16 w/1 GB
  • eMMC 5.0/5.1 w/32 GB
  • SD/MMC connector
  • QSPI w/32 MB

Camera Connectors

  • MIPI-CSI Camera mini-SAS connector

Wireless

  • NXP 88W8987 Wi-Fi/Bluetooth® module:
    • Wi-Fi® 5 (802.11ac) 1x1 DB (2.5/5 GHz)
    • Bluetooth 5.0
  • Onboard chip antenna
  • External antenna connector

Audio

  • Audio DAC 24-bit 192 kHz stereo
  • HP Jack 3.5 mm audio connector
  • Board expansion connector for audio interfaces

Connectivity

  • 10/100/1000 Ethernet
  • USB 3.0 Type C connector

Debug

  • JTAG connector
  • UART via USB

Tools and OS Support

  • Linux
  • FreeRTOS

More

Buy Options

8MNANOD3L-EVK-Image

Click to expand

  • 8MNANOD3L-EVK
    Active

  • Evaluation Kit for the i.MX 8M Nano UltraLite Applications Processor.

  • i.MX 8M Nano UltraLite EVK Board

    Power Supply:

    • USB Type-C Cable
    • USB Micro-B Cable
    • USB Type-C to A Adapter
    • Linux BSP flashed in eMMC
    • Quick Start Guide

  • $458.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MINISASTOCSI-Image

Click to expand

  • $74.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 11
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSP8MNANOD3L-EVKen 5 Fact Sheet Fact Sheet t523 2 User Guide User Guide t792 3 en_US en_US 3 1 English This page will help guide you through the process of
learning about your i.MX 8M Nano UltraLite EVK. 1619103625760719386161 Y 1619103625760719386161 GS-IMX-8M-NANO-ULTRALITE-EVK GS-IMX-8M-NANO-ULTRALITE-EVK /document/guide/getting-started-with-the-i-mx-8m-nano-ultralite-evk:GS-IMX-8M-NANO-ULTRALITE-EVK HTML 0 2021-04-22 GS-IMX-8M-NANO-ULTRALITE-EVK TSP User Guide 132339537837198660 2025-01-08 en Nov 16, 2022 User Guide t792 User Guide User Guide Y Getting Started with the i.MX 8M Nano UltraLite EVK 2 1 English This document describes the i.MX 8M Nano UltraLite DDR3L Evaluation Kit (EVK), which is based on the NXP i.MX 8M Nano UltraLite applications processor. 1614668597150695319898 TSP 3.9 MB Registration without Disclaimer None documents Y Extended 1614668597150695319898 /secured/assets/documents/en/user-guide/IMX8MNULEVKHUG.pdf 3851788 /secured/assets/documents/en/user-guide/IMX8MNULEVKHUG.pdf IMX8MNULEVKHUG Y N 2021-03-02 i.MX 8M Nano UltraLite DDR3L Evaluation Kit Hardware User's Guide /webapp/Download?colCode=IMX8MNULEVKHUG /secured/assets/documents/en/user-guide/IMX8MNULEVKHUG.pdf User Guide N 132339537837198660 2024-12-14 pdf Y en Sep 21, 2023 User Guide t792 User Guide User Guide Y N i.MX 8M Nano UltraLite DDR3L Evaluation Kit Hardware User's Guide 3 1 English Get started building your IoT product now with the i.MX 8M NanoUL. 1614288700256718608076 TSP 655.6 KB Registration without Disclaimer None documents Y Extended 1614288700256718608076 /secured/assets/documents/en/user-guide/8MNANOD3L-EVK-QSG.pdf 655607 /secured/assets/documents/en/user-guide/8MNANOD3L-EVK-QSG.pdf 8MNANOD3L-EVK-QSG Y N 2021-02-25 i.MX 8M NanoUL EVK Quick Start Guide /webapp/Download?colCode=8MNANOD3L-EVK-QSG /secured/assets/documents/en/user-guide/8MNANOD3L-EVK-QSG.pdf User Guide N 132339537837198660 2023-10-12 pdf Y en Oct 12, 2023 User Guide t792 User Guide User Guide D N i.MX 8M NanoUL EVK Quick Start Guide false en Fact Sheet Fact Sheet 2 4 0 English The i.MX 8M Nano UltraLite EVK provides a feature-rich development platform for evaluation and development of high-performance, scalable and cost-optimized solutions. Hardware and software board support packages provide a comprehensive platform for evaluation of the SoC. 1616684875132711647143 TSP 233.6 KB None None documents None 1616684875132711647143 /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf 233564 /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf IMX8MNANOULEVKFS documents N N 2021-03-25 i.MX 8M Nano UltraLite EVK Fact Sheet /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Mar 25, 2021 736675474163315314 Fact Sheet Y N i.MX 8M Nano UltraLite EVK Fact Sheet 5 0 Japanese The i.MX 8M Nano in 14 FinFET technology brings advanced multi-core processing, high-end audio and graphical capabilities to mainstream and cost-sensitive embedded consumer and industrial applications. 1550860912945715518122ja TSP 306.6 KB None None documents None 1550860912945715518122 /docs/ja/fact-sheet/IMX8MNANOFS.pdf 306617 /docs/ja/fact-sheet/IMX8MNANOFS.pdf IMX8MNANOFS documents N N 2019-02-22 i.MX 8M Nano Applications Processor Fact Sheet /docs/ja/fact-sheet/IMX8MNANOFS.pdf /docs/ja/fact-sheet/IMX8MNANOFS.pdf Fact Sheet N 736675474163315314 2022-12-07 ja Jul 6, 2021 736675474163315314 Fact Sheet Y N i.MX 8M Nanoアプリケーション・プロセッサ・ファミリ　ファクトシート 1 Chinese The i.MX 8M Nano in 14 FinFET technology brings advanced multi-core processing, high-end audio and graphical capabilities to mainstream and cost-sensitive embedded consumer and industrial applications. 1550860912945715518122zh TSP 306.6 KB None None documents None 1550860912945715518122 /docs/zh/fact-sheet/IMX8MNANOFS.pdf 306617 /docs/zh/fact-sheet/IMX8MNANOFS.pdf IMX8MNANOFS documents N N 2019-02-22 i.MX 8M Nano Applications Processor Fact Sheet /docs/zh/fact-sheet/IMX8MNANOFS.pdf /docs/zh/fact-sheet/IMX8MNANOFS.pdf Fact Sheet N 736675474163315314 2022-12-07 zh Oct 24, 2019 736675474163315314 Fact Sheet N i.MX 8M Nano Applications Processor Fact Sheet 1 English The i.MX 8M Nano in 14 FinFET technology brings advanced multi-core processing, high-end audio and graphical capabilities to mainstream and cost-sensitive embedded consumer and industrial applications. 1550860912945715518122 TSP 306.6 KB None None documents None 1550860912945715518122 /docs/en/fact-sheet/IMX8MNANOFS.pdf 306617 /docs/en/fact-sheet/IMX8MNANOFS.pdf IMX8MNANOFS documents N N 2019-02-22 i.MX 8M Nano Applications Processor Fact Sheet /docs/en/fact-sheet/IMX8MNANOFS.pdf /docs/en/fact-sheet/IMX8MNANOFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Mar 24, 2021 736675474163315314 Fact Sheet Y N i.MX 8M Nano Applications Processor Fact Sheet false 0 8MNANOD3L-EVK downloads en true 0 Y TSP Fact Sheet 2 /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf 2021-03-25 1616684875132711647143 TSP 4 Mar 25, 2021 Fact Sheet The i.MX 8M Nano UltraLite EVK provides a feature-rich development platform for evaluation and development of high-performance, scalable and cost-optimized solutions. Hardware and software board support packages provide a comprehensive platform for evaluation of the SoC. None /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf English documents 233564 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf i.MX 8M Nano UltraLite EVK Fact Sheet /docs/en/fact-sheet/IMX8MNANOULEVKFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N N i.MX 8M Nano UltraLite EVK Fact Sheet 233.6 KB IMX8MNANOULEVKFS N 1616684875132711647143 /docs/en/fact-sheet/IMX8MNANOFS.pdf 2019-02-22 1550860912945715518122 TSP 5 Mar 24, 2021 Fact Sheet The i.MX 8M Nano in 14 FinFET technology brings advanced multi-core processing, high-end audio and graphical capabilities to mainstream and cost-sensitive embedded consumer and industrial applications. None /docs/en/fact-sheet/IMX8MNANOFS.pdf English documents 306617 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/IMX8MNANOFS.pdf i.MX 8M Nano Applications Processor Fact Sheet /docs/en/fact-sheet/IMX8MNANOFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N i.MX 8M Nano Applications Processor Fact Sheet 306.6 KB IMX8MNANOFS N 1550860912945715518122 User Guide 3 2021-04-22 1619103625760719386161 1 Nov 16, 2022 User Guide User Guide This page will help guide you through the process of
learning about your i.MX 8M Nano UltraLite EVK. Y GS-IMX-8M-NANO-ULTRALITE-EVK English 0 User Guide 2025-01-08 /document/guide/getting-started-with-the-i-mx-8m-nano-ultralite-evk:GS-IMX-8M-NANO-ULTRALITE-EVK Getting Started with the i.MX 8M Nano UltraLite EVK GS-IMX-8M-NANO-ULTRALITE-EVK TSP 132339537837198660 User Guide en Y t792 HTML GS-IMX-8M-NANO-ULTRALITE-EVK 1619103625760719386161 2021-03-02 /secured/assets/documents/en/user-guide/IMX8MNULEVKHUG.pdf 1614668597150695319898 TSP 2 Sep 21, 2023 User Guide User Guide This document describes the i.MX 8M Nano UltraLite DDR3L Evaluation Kit (EVK), which is based on the NXP i.MX 8M Nano UltraLite applications processor. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/IMX8MNULEVKHUG.pdf English 3851788 None User Guide 2024-12-14 /webapp/Download?colCode=IMX8MNULEVKHUG i.MX 8M Nano UltraLite DDR3L Evaluation Kit Hardware User's Guide Y /secured/assets/documents/en/user-guide/IMX8MNULEVKHUG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1 Y N i.MX 8M Nano UltraLite DDR3L Evaluation Kit Hardware User's Guide 3.9 MB IMX8MNULEVKHUG N 1614668597150695319898 2021-02-25 /secured/assets/documents/en/user-guide/8MNANOD3L-EVK-QSG.pdf 1614288700256718608076 TSP 3 Oct 12, 2023 User Guide User Guide Get started building your IoT product now with the i.MX 8M NanoUL. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/8MNANOD3L-EVK-QSG.pdf English 655607 None User Guide 2023-10-12 /webapp/Download?colCode=8MNANOD3L-EVK-QSG i.MX 8M NanoUL EVK Quick Start Guide Y /secured/assets/documents/en/user-guide/8MNANOD3L-EVK-QSG.pdf documents 132339537837198660 User Guide N en Extended D t792 pdf 1 Y N i.MX 8M NanoUL EVK Quick Start Guide 655.6 KB 8MNANOD3L-EVK-QSG N 1614288700256718608076 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

5 documents

Compact List

Fact Sheet (2)
User Guide (3)

Related Hardware

Quick reference to our board types.
Filters

2 hardware offerings

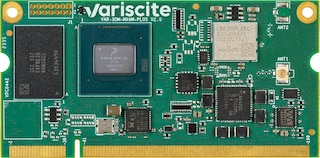

  • VAR-SOM-MX8M-PLUS System on Module
    Embedded Board Solutions

    VAR-SOM-MX8M-PLUS System on Module

    Highly Scalable SoM based on i.MX 8M Plus Quad 1.8GHz ARM Cortex-A53 + 800MHz Cortex-M7, integrated AI/ML, 2D/3D GPU, H.265/264 HD video engines, certified dual-band Wi-F...
    VAR-SOM-MX8M-PLUS System on Module By Variscite Platinum Partner

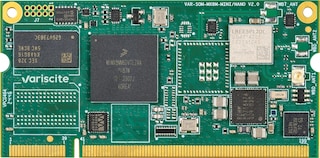

  • VAR-SOM-MX8M-NANO System on Module
