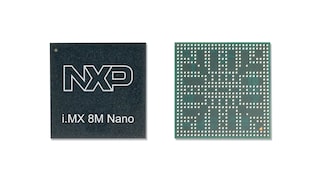

NXP's i.MX 8M Nano family of applications processors provide cost-effective integration and affordable performance for smart, connected, power-efficient devices requiring graphics, vision, voice control, intelligent sensing and general-purpose processing.
The i.MX 8M Nano family includes the i.MX 8M Nano UltraLite, i.MX 8M Nano Lite, and i.MX 8M Nano. Click on the below button to view the main family key features and differentiators:
Key Features and Differentiation
Featuring up to 4x Arm® Cortex®-A53 cores and 1x Cortex-M7 core, the i.MX 8M Nano family of applications processors are pin-compatible, scalable offering to the popular i.MX 8M Mini applications processors. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Nano family may be used in any general purpose industrial and IoT application.
i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.
| i.MX 8M Nano UltraLite Applications Processor | i.MX 8M Nano Lite Applications Processor | i.MX 8M Nano Applications Processor | |
|---|---|---|---|
| Processor | 1x / 2x / 4x Cortex-A53 (1.4 GHz) | 1x / 2x / 4x Cortex-A53 (1.4 GHz / 1.5 GHz) | |
| Cortex-M7 (750 MHz) | |||
| Display | No MIPI-DSI | 4-lane MIPI-DSI with PHY | |
| GPU | No GPU | No GPU | 3D GPU: 2-shader, OpenGL® ES 3.1, OpenCL 1.2, OpenGL® Vulkan® |
| Software | Linux, FreeRTOS® | Linux, FreeRTOS® | Linux, Android, FreeRTOS® |
| Package Size | 11 x 11 | 14 x 14 | |

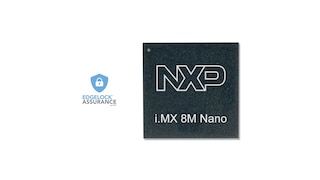

The i.MX 8M Nano applications processor, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.
i.MX 8M Family - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video
i.MX 8M Mini - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video
1-10 of 18 results
Include 0 NRND
Part | Order | CAD Model | Status | Core Type | Operating Frequency [Max] (MHz) | L2 Cache (Max) (KB) | External Memory Supported | GPU 2D / GPU 3D | Video/Display features | Audio Specific Modules | USB Controllers | Serial Communication | SRAM (kB) | Security | Package Type | Package Pitch (mm) | Junction Temperature (Min) (℃) | Junction Temperature (Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1 x Arm Cortex-A53, 1 x Arm Cortex-M7 | 750, 1400 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | AES-D, CA, CRC, HAB, SNVS, TRNG | TBGA306 | 0.5 | -40 | 105 | |||
Active | 1 x Arm Cortex-A53, 1 x Arm Cortex-M7 | 750, 1400 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI, MIPI-DSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | AES-D, CA, CRC, HAB, SNVS, TRNG | LFBGA486 | 0.5 | -40 | 105 | |||
Active | 1 x Arm Cortex-A53, 1 x Arm Cortex-M7 | 750, 1400 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | NXP's EdgeLock Secure Enclave | TBGA306 | 0.5 | 0 | 95 | |||
Active | 1 x Arm Cortex-A53, 1 x Arm Cortex-M7 | 750, 1500 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI, MIPI-DSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | — | LFBGA486 | 0.5 | 0 | 95 | |||
Active | 1 x Arm Cortex-A53, 1 x Arm Cortex-M7 | 750, 1400 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | 2x shader, Vivante GC7000UltraLite | MIPI-CSI, MIPI-DSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | — | LFBGA486 | 0.5 | -40 | 105 | |||
Active | 1 x Arm Cortex-A53, 1 x Arm Cortex-M7 | 750, 1500 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | 2x shader, Vivante GC7000UltraLite | MIPI-CSI, MIPI-DSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | — | LFBGA486 | 0.5 | 0 | 95 | |||
Active | 1 x Arm Cortex-M7, 2 x Arm Cortex-A53 | 750, 1400 | 512 | — | — | — | 8-ch PDM input, ASRC, SAI/I2S | 1 | 3 x SPI, 4 x I²C, 4 x UART | — | CA, HAB, SJC, SNVS, Secure RAM, TRNG, TZ | TBGA306 | 0.5 | -40 | 105 | |||
Active | 1 x Arm Cortex-M7, 2 x Arm Cortex-A53 | 750, 1400 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI, MIPI-DSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | — | LFBGA486 | 0.5 | -40 | 105 | |||
Active | 1 x Arm Cortex-M7, 2 x Arm Cortex-A53 | 750, 1400 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | — | TBGA306 | 0.5 | 0 | 95 | |||
Active | 1 x Arm Cortex-M7, 2 x Arm Cortex-A53 | 750, 1500 | 512 | DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI | — | MIPI-CSI, MIPI-DSI | 8-ch PDM input, SAI | 1 | 3 x SPI, 4 x I²C, 4 x UART | 512 | — | LFBGA486 | 0.5 | 0 | 95 |
