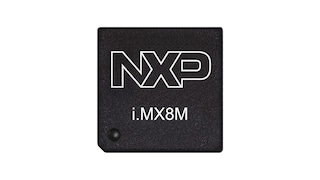

i.MX8M Mini

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The i.MX 8M Mini is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Mini family may be used in any general purpose industrial and IoT application.

i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 8M Mini Processors Family

Get diagram PDF

Features

Multicore Processing

4x Cortex-A53 core platforms up to 1.8GHz per core
32KB L1-I Cache/ 32 kB L1-D Cache
512 kB L2 Cache
1x Cortex-M4 core up to 400MHz
16 kB L1-I Cache/ 16 kB L2-D Cache

GPU

3D GPU (1x shader, OpenGL^{^®} ES 2.0)
2D GPU

Display Interface

1x MIPI DSI (4-lane) with PHY

Video Playback

1080p60 VP9 Profile 0, 2 (10-bit) decoder, HEVC/H.265 decoder, AVC/H.264 Baseline, Main, High decoder, VP8 decoder
1080p60 AVC/H.264 encoder, VP8 encoder

Audio

5x SAI (12Tx + 16Rx external I2S lanes), 8ch PDM input

Camera Interface

1x MIPI CSI (4-lane) with PHY

USB

2x USB 2.0 OTG controllers with integrated PHY

PCIe

1x PCIe 2.0 (1-lane) with L1 low power substates

Ethernet

1x Gigabit Ethernet (MAC) with AVB and IEEE 1588, Energy Efficient Ethernet (EEE) for low power

Operating Systems

Linux, Android, Windows 10 Enterprise, FreeRTOS

Temperature

Consumer (0°C to 95°C Tj)
Industrial (-40°C to 105°C Tj)

Package

FCBGA, 14x14 0.5mm pitch

Product Program

EdgeLock^® Assurance

The i.MX 8M Mini applications processor, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

5 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
i.MX 8M Mini BSDL

BSDLRev 0Apr 14, 2021 05:15:0067.9 KBIMX8MMINI-BSDL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
i.MX 8M Mini LPDDR4 EVKB Compute Module Design Files

ZIPRev 0Apr 14, 2022 09:02:006.4 MB8MMINILPD4-CPU2-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
i.MX 8M Mini Evaluation Kit LPDDR4 Design Files

ZIPRev 0Apr 14, 2022 17:00:0015.0 MB8MMINILPD4-EVK-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
i.MX 8M Mini LPDDR4 EVKB Base Board Design Files

ZIPRev 0Apr 14, 2022 09:02:0010.3 MB8MMINI-BB-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
i.MX 8M Mini IBIS Model

ZIPRev 1.0Jan 8, 2021 17:31:0020.1 MBIMX8MM-14x14
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 7 hardware offerings

Evaluation and Development Boards
Evaluation Kit for the i.MX 8M Mini Applications ProcessorFeatured

8MMINILPD4-EVK
Evaluation and Development Boards
Evaluation Kit for the i.MX 8M Mini Applications Processor

8MNANOLPD4-EVK
Evaluation and Development Boards
i.MX8M Mini EVK Interposer for Arduino^® Shield

IMX8MMINI-IARD
Additional hardware available. View our featured partner solutions.
Evaluation and Development Boards
i.MX Audio Board

MCIMX8M-AUD
Evaluation and Development Boards
Advantech's EWM-W306: NXP 88W8997 M.2 1216

EWM-W306
Evaluation and Development Boards
i.MX 8M Mini Development Kit for Amazon Alexa Voice Service

IMX8MMINIALEXADEVKIT
Evaluation and Development Boards
MPU / Linux^® Hosted Matter Development Platform

MPU-LINUX-MATTER-DEV-PLATFORM

Show All

1-5 of 63 hardware offerings

Embedded Board Solutions
i.MX 8M Mini Pico ITX SBC

• i.MX 8M Mini SoC based Pico ITX SBC • GPU,1080p VPU & Display Controller support on SoC • Gbps Ethernet, USB2.0, PCIe, WiFi5 & BT5.0 support, GNSS receiver, MIPI to H...

By iWave Global Gold Partner
Embedded Board Solutions
IMX8M Mini SMARC 2.0 Module

Anita i.MX8M Mini CPU I.MX8M Mini general purpose system on module compliant with SMARC 2.0.Designed to work in Industrial, Automotive and consumer environment.

By Firstview Consultants Gold Partner
Embedded Board Solutions
SECO SOM-uQ7-MX8M-Mini-Nano

μQseven® Computer on Module (CoM) with NXP i.MX 8M Mini & NXP i.MX 8M Nano Processors.

By SECO Gold Partner
Embedded Board Solutions
Nitrogen8M Mini SBC

The Nitrogen8M_Mini SBC features NXP's new i.MX 8M Mini applications processor & PF8121 PMIC, 2GB of LPDDR4 RAM, and 8GB eMMC. The board also comes with optional add-ons ...

By Ezurio Gold Partner
Embedded Board Solutions
Development board IAC-IMX8MM-Kit

The IAC-IMX8MM-Kit development board is designed based on the NXP 64-bit quad-core Cortex-A53 processor i.MX8M mini.It supports 2D,3D graphic accelerator;

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold Partner
Embedded Board Solutions
Single board computer OKMX8MM-C

CPU: i.MX8M Mini Architecture: Cortex-A53 Frequency: 1.8GHz RAM: 2GB DDR3 ROM: 8GB eMMC System: Linux4.14.78+QT5.10.1，Android9.0

By Forlinx Embedded Technology Co., Ltd Gold Partner
Embedded Board Solutions
i.MX8M Mini SOM

i.MX8M Mini SOM offer a compact System-on-Module platform with robust processing, energy efficiency and AI acceleration using 2803S Neural Accelerator – designed for next...

By SolidRun Ltd Gold Partner
Embedded Board Solutions

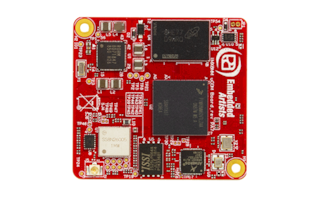

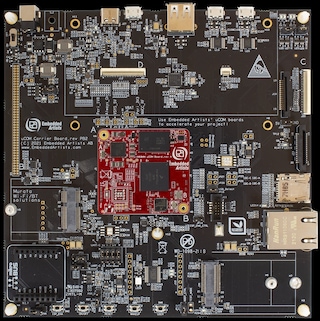

iMX8M Mini uCOM Board

The EA iMX8M-Mini uCOM Board provides a quick and easy solution for implementing a high-performance ARM quad-core Cortex-A53/M4 based design, in a tiny (42x45mm) form fac...

By Embedded Artists AB Gold Partner
Embedded Board Solutions
AW-PU530

i.MX 8M Mini + 88W8997 SoM.

By AzureWave Technologies, Inc. Gold Partner
Embedded Board Solutions
SECO SOM-Trizeps-VIII-MX8M-Mini

SODIMM-200 CPU Computer on Module (CoM) with NXP i.MX 8M Mini Applications Processors.

By SECO Gold Partner
Embedded Board Solutions
EDM-G-IMX8M-MINI

EDM-G-IMX8M-MINI is a high-performance and reliability SoM featuring NXP i.MX8M Mini applications processor based on ARM Cortex-A53 and Cortex-M4 with certified Wireless ...

By TechNexion Ltd Gold Partner
Embedded Board Solutions
TQMa8MxML

Embedded Cortex®-A53 module based on i.MX8M Mini with enhanced Audio properties

By TQ-Systems GmbH Platinum Partner
Embedded Board Solutions
SECO SOM-Myon-II-MX8M-Mini

Micro CPU Computer on Module (CoM) with NXP i.MX 8M Mini & i.MX8M Nano Applications Processors.

By SECO Gold Partner
Embedded Board Solutions
PicoCore™MX8MM

Tiny multi media COM (35x40mm) with WLAN/BT and LVDS based on NXP i.MX8M Mini (PicoCoreMX8MM)

By F&S Elektronik Systeme GmbH Gold Partner
Embedded Board Solutions
SBC-IOT-iMX8

SBC-IOT-iMX8 is a miniature i.MX8M Mini Single Board Computer designed for industrial control and monitoring applications. Key features: up-to 4GB RAM, 128GB eMMC, LTE m...

By CompuLab Gold Partner
Embedded Board Solutions
SECO Tanaro Vision 7 PM MX8M-Mini

7.0 inch Rear Mount HMI based on NXP i.MX8M Mini processor

By SECO Gold Partner
Embedded Board Solutions
IOT-GATE-iMX8

IOT-GATE-iMX8 is a miniature i.MX8M Mini Internet-of-Things Gateway designed for industrial control and monitoring and custom gateway/router applications.

By CompuLab Gold Partner
Embedded Board Solutions
360(AVM) ADAS APA

It provides Surround View Monitor,ADAS and automatic parking solutions.The surround-view ADAS systems offered integrate multiple ADAS functions such as LDW, BSD, and MOD ...

By Tamsong Technology Co.,LTD Gold Partner
Embedded Board Solutions
SECO SBC-3.5-MX8M-Mini

3.5” SBC with the NXP i.MX 8M Mini Processors.

By SECO Gold Partner
Embedded Board Solutions
DART-MX8M-MINI System on Module

Tiny 30x55mm SoM based on iMX8M Mini with Quad 1.8GHz ARM Cortex-A53 + 400MHz Cortex-M4. A member of the DART Pin2Pin family with video encode/decode acceleration support...

By Variscite Platinum Partner
Embedded Board Solutions
MSC OSM-MF-IMX8MINI

The MSC OSM-MF-IMX8MINI is based on the new OSM 1.1 standard (Size-M) “Medium” for completely machine processible low-cost embedded computer modules during soldering, ass...

By Avnet Embedded Platinum Partner
Embedded Board Solutions
AW-PU510

AW-PU510 is an advanced application processor designed for smart audio and smart home applications. It integrates a powerful CPU subsystem, advanced multi-format audio pr...

By AzureWave Technologies, Inc. Gold Partner
Embedded Board Solutions
i.Core MX8M Mini

Equipped with the Cortex-A53 cores plus Cortex-M4, it brings together high-performance computing, power efficiency, enhanced system reliability, and embedded security, st...

By Engicam Gold Partner
Embedded Board Solutions
system on module FETMX8MM-C

CPU: i.MX8M Mini RAM: 2GB DDR4 Flash: 8GB eMMC OS: Android9.0, Linux4.14.78

By Forlinx Embedded Technology Co., Ltd Gold Partner
Embedded Board Solutions
MYS-8MMX-V2

The MYS-8MMX SBC is a single board computer based on NXP i.MX8M mini MPU. It offers high processing performance as well as rich peripherals such as M.2 SSD interface, HDM...

By MYIR Electronics Limited Gold Partner
Embedded Board Solutions
SECO SBC-TANARO-MX8M-Mini

Single Board Computer (SBC) based on NXP i.MX8M Mini processor.

By SECO Gold Partner
Embedded Board Solutions
Ka-Ro TX8M Mini Computer-on-Module

TX8M Mini includes the i.MX 8M Mini with 4 Cortex A53 at 1.6 GHz 1GB RAM, 4 GB eMMC flash and PMIC. -25 to 85C Operating Range

By Ka-Ro electronics GmbH Gold Partner
Embedded Board Solutions
MSC SM2S-IMX8MINI

The MSC SM2S-IMX8MINI module features NXP’s i.MX 8M Mini processors that are based on latest 14nm FinFET technology to allow high computing and graphics performance at ve...

By Avnet Embedded Platinum Partner
Embedded Board Solutions
UCM-iMX8M-Mini

UCM-iMX8M-Mini is an ultra miniature (28 x 38) i.MX8M Mini System-on-Module designed for integration into embedded applications. Key features: 4GB RAM, 64GB eMMC, GbE, P...

By CompuLab Gold Partner
Embedded Board Solutions
QSXM for i.MX 8M Mini

At 29x29mm by 2.6mm high, the QFN SMT package is ideal for reliable, high-volume SMT assembly. The QSXM is pin-compatible with COMs for the i.MX 8M Plus and Nano.

By Ka-Ro electronics GmbH Gold Partner
Embedded Board Solutions
VAR-SOM-MX8M-MINI System on Module

A highly scalable, low power, cost-effective SoM solution based on i.MX8M Mini 1.8GHz Quad Cortex-A53, 4 GB DDR4, VPU/GPU, certified WiFi/BT & CAN bus. A member of the VA...

By Variscite Platinum Partner
Embedded Board Solutions
SBC IMX8M Mini

MINA Single Board Computer SBC built upon the NXP i.MX8M Mini embedded multicore applications processor. It’s standard 3,5” and SMARC 2.0 form factor guarantees the compl...

By Firstview Consultants Gold Partner
Embedded Board Solutions
MITO 8M Mini - i.MX8M Mini

MITO 8M Mini SOM is our solution for upgrading existing solutions with the NXP's state-of-the-art. The pin2pin compatibility with i.MX6 and i.MX6UL SOC solutions and futu...

By DAVE Embedded Systems Gold Partner
Embedded Board Solutions
HummingBoard Ripple

HummingBoard Ripple is a cost-effective and optimized platform for the i.MX8M, i.MX8M Mini, i.MX8M Plus and i.MX8M Nano family of SOMs.

By SolidRun Ltd Gold Partner
Embedded Board Solutions
Verdin iMX8M Mini

The perfect balance between performance, power and cost, the Verdin iMX8M Mini SoMs provide up to four powerful Arm 64 bit Cortex-A53 cores. The performance makes these S...

By Toradex® Platinum Partner
Embedded Board Solutions

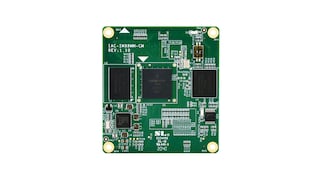

System on module IAC-IMX8MM-CM

IAC-IMX8MM-CM System on Module（SOM）adopts i.MX8M mini Quad Core 64-bit processor ,inbuilt with 4xARM Cortex-A53 kernel,basic frequency up to 1.8GHz and 1x general Cortex-...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold Partner
Embedded Board Solutions
phyCORE-i.MX 8M Mini/Nano

phyCORE-i.MX 8M Mini: NXP i.MX 8M Mini Dual or Quad-Core @ 1.8 GHz; 40 x 37 mm dimensions; 4 GB max LPDDR4; up to 128 GB eMMC; 4KB EEPROM; 2x USB 2.0 OTG; BGA (301 pins)

By PHYTEC Platinum Partner
Embedded Board Solutions
PICO-IMX8M-MINI

PICO-IMX8M-MINI is a high-performance and reliability SoM featuring NXP i.MX8M Mini applications processor based on ARM Cortex-A53 and Cortex-M4 architecture that provide...

By TechNexion Ltd Gold Partner
Embedded Board Solutions
i.MX 8M Mini Sodimm SOM

• i.MX 8M Mini SoC based compact SODIMM form factor SOM • GPU, 1080p VPU & Display Controller support on SoC • SOM supports Gbps Ethernet PHY, WiFi5 & BT5.0, & more •L...

By iWave Global Gold Partner
Embedded Board Solutions
MYC-C8MMX-V2 SOM

MYC-C8MMX CPU Module is a low-cost embedded ARM SoM based on NXP’s i.MX 8M Mini which features up to 1.8GHz quad-core ARM Cortex-A53 plus 400MHz Cortex-M4 processor.It is...

By MYIR Electronics Limited Gold Partner
Embedded Board Solutions
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold Partner
Embedded Board Solutions

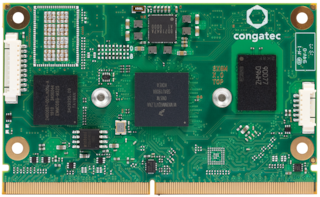

conga-SMX8-Mini Computer-on-Module

SMARC 2.1 module based on NXP i.MX8M Mini processor series

By congatec Gold Partner
Embedded Board Solutions
LEC-IMX8MM

The LEC-IMX8MM is a small size SMARC rev2.1 module, based on NXP’s iMX 8M Mini dual or quad core (Arm Cortex-A53) SoC, integrated Vivante GC NanoUltra graphics for improv...

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
ROM-5721

Advantech ROM-5721 SMARC 2.0/2.1 Module by NXP i.MX8M Mini up to 4 Arm Cortex-A53 cores in combination with one Cortex-M4 real time processor and Vivante GC320, GC NanoUl...

By Advantech Co., Ltd. Gold Partner
Embedded Board Solutions
phyBOARD - Polis i.MX 8M Mini / Nano

The phyBOARD-Polis serves as a reference design for your customer-specific application and enables the parallel development of the software and base board for the phyCORE...

By PHYTEC Platinum Partner
Embedded Board Solutions
i.MX 8M Mini µQseven SOM

• i.MX 8M Mini SoC based Qseven v2.1 Compatible SOM • GPU,1080p VPU & Display Controller support on SoC • SOM supports Gbps Ethernet PHY, USB2.0 HUB, WiFi5 & BT5.0, MIP...

By iWave Global Gold Partner
Complementary Silicon or Component
Ka-Ro QS8M Mini Computer-on-Module

The QS Computer-on-module is the smallest NXP COM in the world! At just 27mm square and 2.3mm high, the QS8M Mini is ideal for small, low profile devices that require bo...

By Ka-Ro electronics GmbH Gold Partner
Module
3SM1008M NXP i.MX 8M Mini Arm CortexNEW

3SM1008 is a NXP i.MX 8m MiniCPU based. It's a card edge 230 pin form factor. Small dimension (40mmx71mm) is ideal for general purpose applications. Scalable with all...

By Elettronica GF s.r.l. Gold Partner
Module
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
MAYA-W2

Compact Wi-Fi 6 + Bluetooth 5.4 + 802.15.4 host-based multiradio modules, secure tri-radio 1/2 antenna pins, U.FL connectors or embedded antenna MAYA-W260, MAYA-W261, MA...

By u-blox AG Gold Partner
Module
MAYA-W1

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 or 2 antenna pins, U.FL connectors, or embedded antenna MAYA-W160-00B, MAYA-W161-00B, MAYA-W166-00B, MAYA-...

By u-blox AG Gold Partner
Module
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
CMP9010

Certified IW416-Based Wireless IoT Module

By California Eastern Laboratories Gold Partner
Module
i.MX8M mini SOM

High Performance Low Power SOM with NXP ARM® MX8M Mini/ Nano, Cortex-A53 Dual/Quad core up to 1.5GHz Processor

By Shenzhen Huameishi Tech Co., Ltd. Gold Partner
Module
LILY-W1

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold Partner
Module
TEVS-AR0145

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
Stream1955

Module based on i.MX 8 processor enables audio streaming, immersive sound, multichannel decoding, voice recognition, and Wi-Fi, Bluetooth, HDMI ARC/eARC support for sound...

By StreamUnlimited Engineering GmbH Gold Partner
Module
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold Partner
