Eval kit for JODY-W263 Wi-Fi®/Bluetooth® module

UB-JODY-W263

Roll over image to zoom in

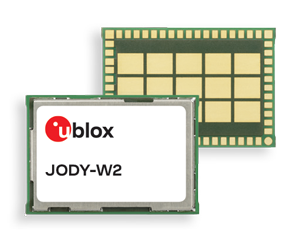

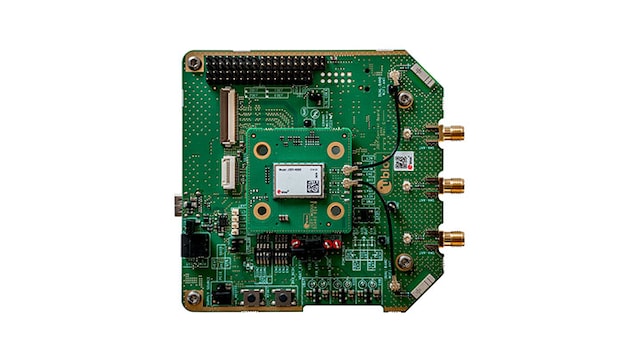

EVK-JODY-W263 allows an external host processor to access several practical features for testing and evaluating the Wi-Fi and Bluetooth connectivity supported in JODY-W2 series modules, including:

  • An external connector to all host interfaces (SDIO and UART)
  • PCM interface through an on board accessible connector
  • GPIO pins that are accessible through an on board connector
  • Internal dual-band 2.4/5 GHz antennas for Wi-Fi and Bluetooth
  • SMA connectors for external antennas
  • Module interfaces that are all externally available via the pin headers

Block Diagram

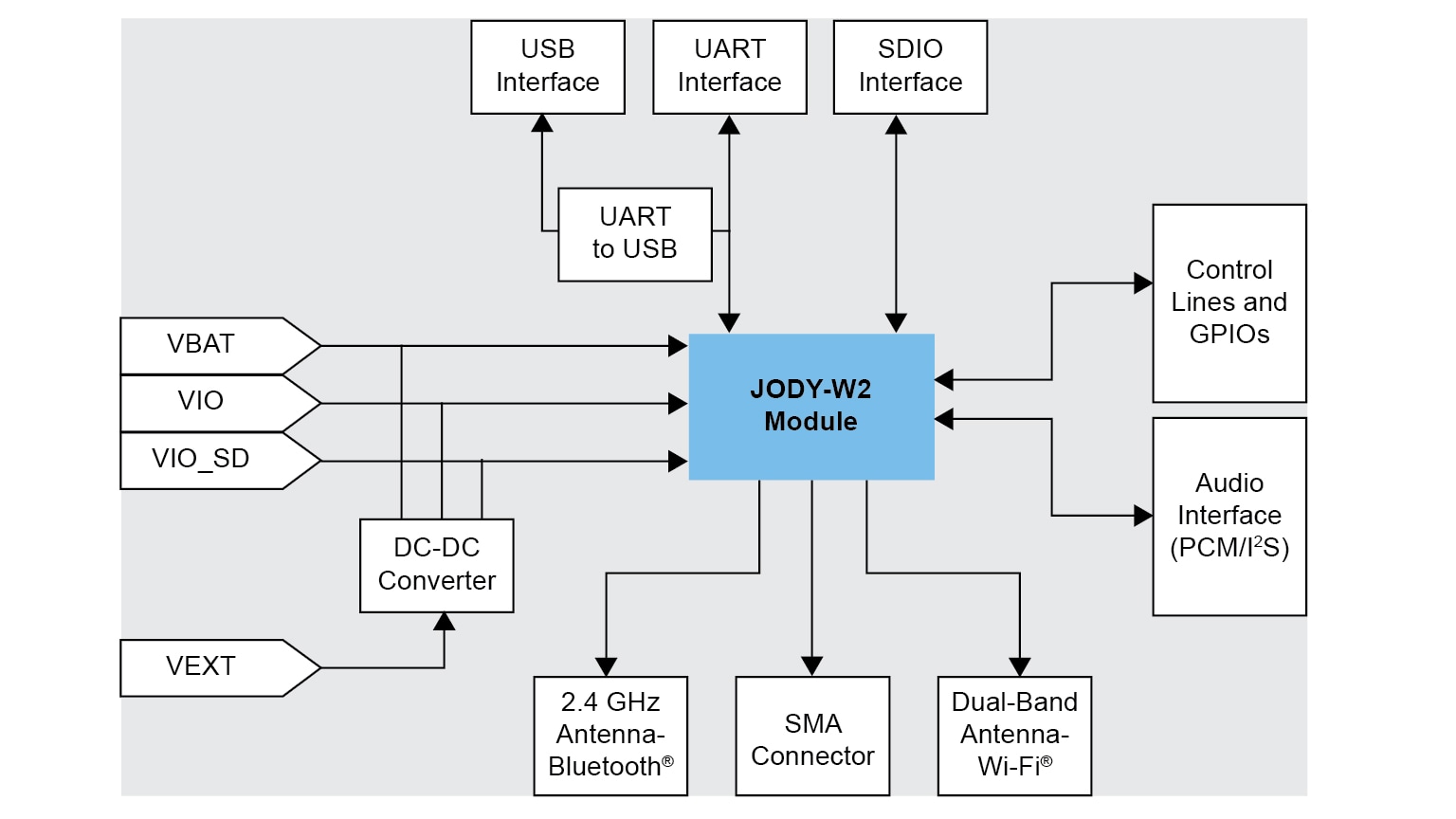

Evaluation Kit JODY-W263 Block Diagram

Evaluation Kit JODY-W263 Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores
  • i.MX-RT1020: i.MX RT1020: Crossover MCU with Arm® Cortex®-M7
  • i.MX-RT1064: i.MX RT1064: Crossover MCU with Arm® Cortex®-M7
  • i.MX-RT1060: i.MX RT1060: Crossover MCU with Arm® Cortex®-M7

i.MX 8 Applications Processors

  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7
  • i.MX8M: i.MX 8M Family - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video
  • i.MX8X: i.MX 8X Family – Arm® Cortex®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR

i.MX 6 Processors

  • i.MX6DL: i.MX 6DualLite Processors – Dual-Core, 3D Graphics, HD Video, Arm® Cortex®-A9 Core

Features

Wi-Fi and Bluetooth connectivity

  • IEEE 802.11 a/b/g/n/ac, Bluetooth / BLE 5.1
  • Based on NXP 88W8987

Interfaces

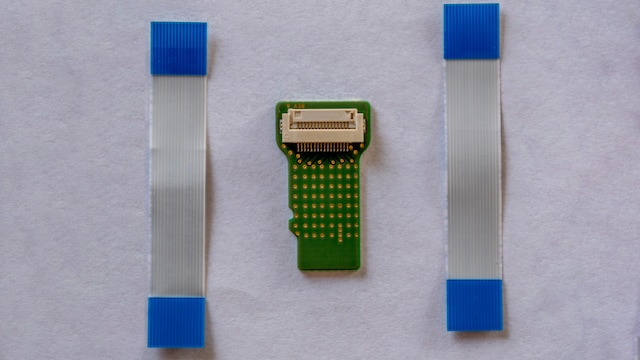

  • Wi-Fi host interface: SDIO via SDIO card connector
  • Bluetooth host interface: UART via UART-to-USB connector

Antenna

  • Dual-band antenna, connect to SMA connector
