Wi-Fi® 5 1x1 Concurrent Dual Wi-Fi (CDW) and Bluetooth® 5.3 Combo SoC

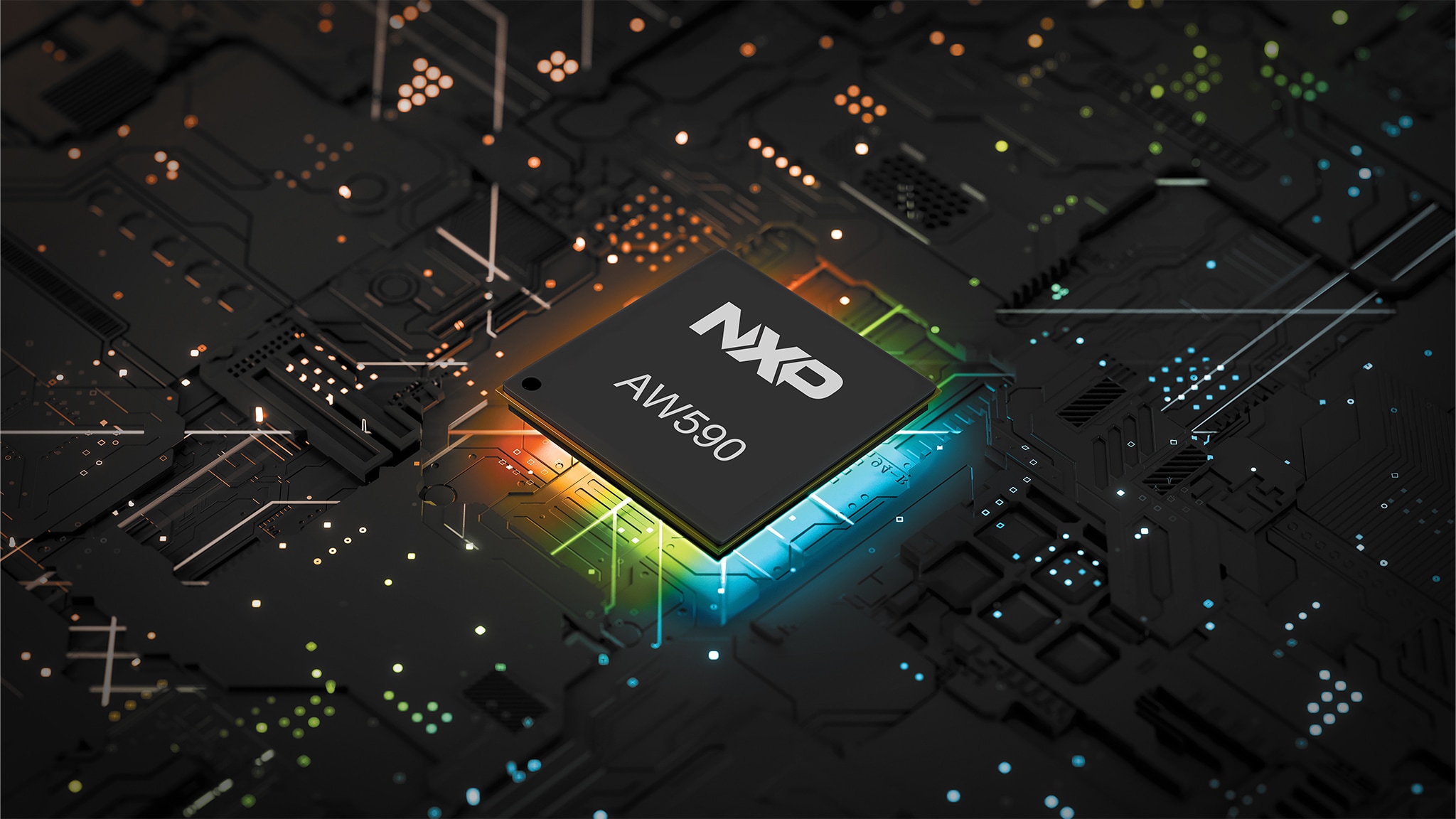

The AW590 is a highly integrated Wi-Fi 5 device enabling concurrent dual Wi-Fi (CDW) and Bluetooth 5.3 operation. Supporting a 1x1 CDW Wi-Fi configuration in both the 2.4 GHz and 5 GHz bands, and 2x2 MIMO single-band operation, the system-on-chip (SoC) provides a peak data rate of 867 Mbit/s and implements advanced features including MU-MIMO.
Product Details
Features
Wi-Fi Key Features
- Concurrent Wi-Fi 5 1x1 SISO operation
- Single-MAC Wi-Fi 5 2x2 MIMO operation
- 256 QAM
- MU-MIMO
- WPA2, WPA3
Bluetooth Key Features
- Bluetooth Class 1.5 and Class 2
- BDR and EDR: 1 Mbit/s, 2 Mbit/s and 3 Mbit/s
- Bluetooth Low Energy (LE) 1 Mbit/s and 2 Mbit/s
- Bluetooth Low Energy Long Range
- Two wideband speech links
- Up to 16 Bluetooth LE links
- Bluetooth LE ultralow power mode
- Wi-Fi/Bluetooth coexistence protocol support
General Features
- Efficient power management supporting low power modes
- PCIe and UART host interfaces
- Independent ARM-based Wi-Fi and Bluetooth CPUs
- Integrated RF PAs/LNAs, T/R switch, and internal low-voltage regulator
- AEC-Q100 Grade 3 (-40 °C to +85 °C) support
