2x2 Single-band (5 GHz) Concurrent Dual Wi-Fi® 6, 1x1 (2.4 GHz) Wi-Fi 6, and Bluetooth® 5.3 Combo Solution
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

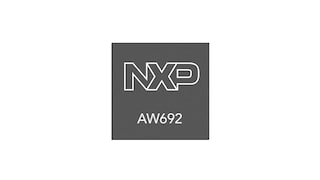

The AW692 is a highly integrated Wi-Fi 6 device enabling concurrent dual Wi-Fi (CDW) and Bluetooth 5.3 operation. AW692 supports four modes:
- Mode 1: CDW 2x2 Wi-Fi 6 5 GHz (802.11ax) + 1x1 Wi-Fi 6 2.4 GHz (802.11ax)
- Mode 2: CDW 1x1 Wi-Fi 6 5 GHz (802.11ax) + 1x1 Wi-Fi 6 2.4 GHz (802.11ax)
- Mode 3: 2x2 Wi-Fi 6 2.4 GHz (802.11ax)
- Mode 4: 2x2 Wi-Fi 6 5 GHz (802.11ax)
The System-on-Chip (SoC) implements advanced features including MU-MIMO, OFDMA, Target Wake Time (TWT), and Bluetooth LE Audio. With integrated 2.4 GHz and 5 GHz TX power amplifiers (PA), RX low noise amplifiers (LNA) and Tx/Rx switches (T/R SW) as well as a full Bluetooth radio, the AW692 simplifies design. External front-end module (FEM) with PA and LNA is also supported.
The AW692 supports a flexible front-end design with either two or three antennas.
The AW692 implements advanced real-time Wi-Fi and Bluetooth arbitration hardware in conjunction with software algorithms to optimize coexistence performance. NXP's Edgelock technology is integrated. The embedded Edgelock® secure subsystem (ELS) supports hardware crypto accelerated secure boot, key management, firmware authentication, secure life cycle management, and anti-rollback protection.
The AW692 integrates dedicated CPUs and memories for both the Wi-Fi and Bluetooth subsystems for real time, independent protocol processing. The interfaces to external host processors include PCIe for Wi-Fi and UART for Bluetooth.
The AW692 is available in HVQFN148 package, and complies with AEC-Q100 Grade 2.
The data sheet is available under NDA in the Documentation section of this page.
Product Details
Features
Wi-Fi Key Features
- 2x2 Wi-Fi 6 and 1x1 Wi-Fi 2.4 GHz concurrent dual wireless mode (mode 1)
-
2x2 radio
- 40 MHz channel for 2.4 GHz (RF paths 2A/2B)
- 1024 QAM (MCS11), up to 80 MHz channel for 5 GHz (RF paths 5A/5B)
-
1x1 radio
- 20 MHz channel for 2.4 GHz (RF path C)
- 1024 QAM (MCS11), up to 80 MHz channel for 5 GHz (RF paths 5A)
-
2x2 and 1x1 radios
- STA and mobile AP
- Low-latency data exchange (LLDE)
- Wi-Fi TSF host clock sync between AP and STA
- Wi-Fi cross-chip TSF clock sync between AP and AP
- PCIe host interface
Bluetooth Key Features
- Bluetooth 5.3
- High speed, long range, advertising extensions
- Isochronous channels supporting LE audio
- Integrated PA (+13 dBm)/LNA/SW
- UART host interface
Operating Characteristics
- Supply voltage: 1.8 V and 3.3 V
- Operating temperature: Automotive AEC-Q100 Grade 2: -40 to 105°C
- Storage temperature: -55 to 125°C
