The 88W8887 is a highly integrated connectivity solution enabling 1x1 802.11ac Wi-Fi 5 and Bluetooth 5.2 in a single-chip. The 88W8887 has been specifically designed to meet the speed, reliability, and quality needs of next-generation applications requiring high performance, while minimizing space and power requirements. With integrated front-ends, the 88W8887 significantly reduces RBOM and simplifies layout design for fast time to market.

With AECQ100 qualification, the 88W8887 extends the digital connected lifestyle to the automobile. The device builds on top of the feature-rich and robust software architecture of earlier generations of automotive-grade products and provides a seamless upgrade path to cutting edge technologies, such as high bandwidth wireless data for multiple high-definition videos streaming for rear-seat entertainment and Bluetooth LE for remote key entry.

Application Notes

Product Details

Features

IEEE 802.11ac compliant, 1x1 spatial stream with data rates up to MCS9 (433 Mbps)
Bluetooth 5.2 support
FM receive (digital decoder FM radio with RDS/RBDS)

Documentation

Quick reference to our documentation types.

1 document

Compliance and Certification Considerations - Application note (public)[AN13006]

PDFFeb 20, 2024Rev 3

Design Resources

Design Files

Quick reference to our design files types.

Hardware

Quick reference to our board types.

2 hardware offerings

Module

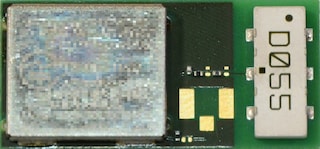

WK8887AA1

Combo module with Wireless LAN IEEE802.11ac/a/b/g/n and BT4.2 with incorporated antenna and radio regulatory approval for Japan, FCC and ISED.

By KAGA FEI Co., Ltd. Gold Partner
Module
SPB209

SPB209A is a complete WLAN and Bluetooth Dual-mode module ready for onboard integration in Linux platforms. The ultra-small 14x14x2.5mm low power, high performance ...

By H&D Wireless Connectivity AB Gold Partner
