2.4/5 GHz Dual-Band 4x4 Wi-Fi® 6 (802.11ax) Access Solution

88W9064 Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

The 88W9064 is part of the next evolution of our advanced Wi-Fi 6 access solutions that have enabled award-winning platforms. This device family provides a complete 802.11ax feature set. Drawing on the strength of our proven implicit and explicit beamforming technologies, our full MU-MIMO and OFDMA solutions help increase capacity not only for downlink traffic but also for uplink traffic. This allows for overall improved network utilization while meeting the growing demands of user applications.

Product Details

Block Diagram

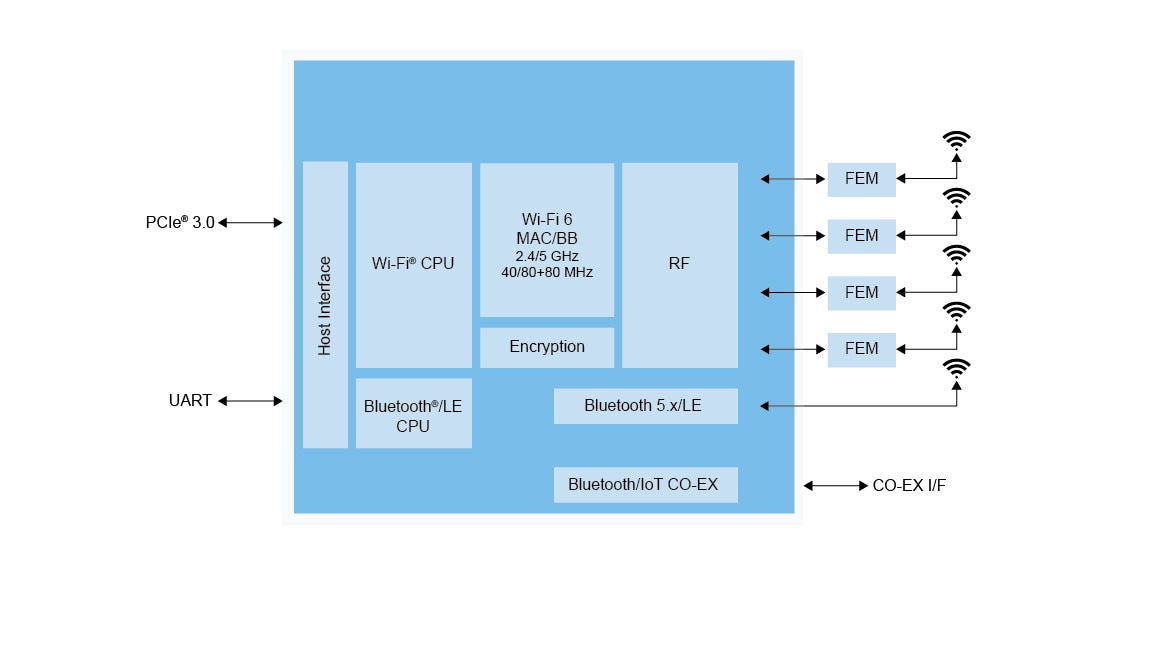

88W9064 Block Diagram

88W9064 Block Diagram
Get diagram PDF

Features

Wi-Fi 6

  • Downlink OFDMA and MU-MIMO
  • Uplink OFDMA and MU-MIMO
  • 1024 QAM
  • Spatial reuse
  • Range extension
  • DCM
  • Target Wake Time

Flex MAC

  • Adaptable architecture for standards evolution
  • Management of high number of traffic queues
  • Advanced scheduling

Bluetooth

  • Support for Bluetooth 5
  • Direction finding
  • Long range
  • Coexistence arbitration

Dedicated In-Service Monitoring

  • Concurrent spectrum scanning
  • Zero wait DFS

Precision Location

  • Distance: within 1 meter
  • Angle: within 10 degrees

Host Interfaces

  • PCIe 3.0 (2-Lane)
  • High-Speed UART (for Bluetooth)

More
