2.4/5 GHz Dual-Band 2x2 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.1 Solution
The IW620 is NXP’s advanced 2x2 Wi-Fi 6 (802.11ax) combo solution supporting dual-band Wi-Fi and Bluetooth 5.1 operation. The IW620 features an advanced low-power radio architecture with extensive RF integration - including dual-band power amplifiers (PAs), low noise amplifiers (LNAs) and RF switches – to enable low power consumption and minimal BOM/PCB area for high-performance IoT applications.
Key advantages include:
- Enhanced Wi-Fi 6 MU-ODFMA and MU-MIMO support
- Low power Wi-Fi standby with Wi-Fi 6 target wait time (TWT) support
- Advanced active channel scanning
- PA and PMU integration for minimal BOM and PCB area
- Individual power down for WLAN and Bluetooth / Bluetooth LE radios
Wireless modules based on the NXP IW620 are offered by leading module manufacturers.

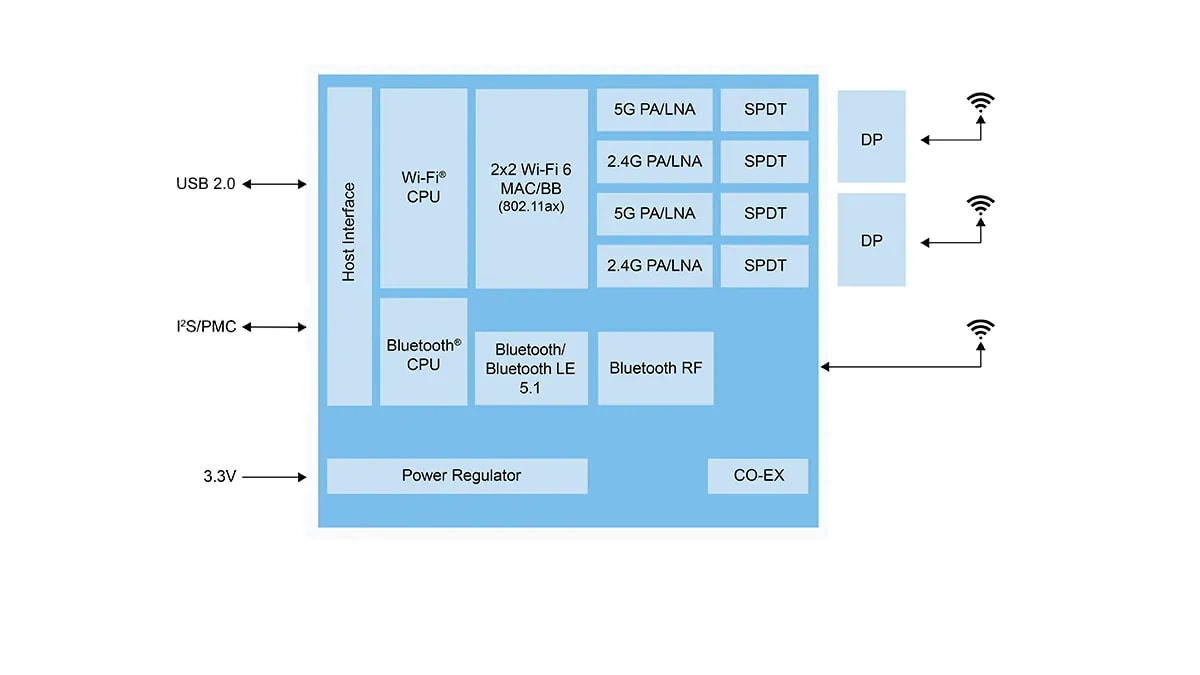

Product Details
Features
Wi-Fi 6 (802.11ax)
- 2x2 Wi-Fi 6 (802.11ax) dual-band support
- 1024 QAM, 80 MHz
- Peak throughput: 1200 Mbit/s
- MU-OFDMA + MU-MIMO support
- Advanced active channel scanning
- Low-power Wi-Fi standby with Wi-Fi 6 TWT suspend mode
Bluetooth and Bluetooth Low Energy 5.1
- Bluetooth Low Energy LR / 2 Mbps + LR
- Bluetooth Low Energy Mesh
Antenna support
- 3-antenna configuration
- 2x2 5 GHz/2.4 GHz Wi-Fi RF path
- Dedicated 2.4 GHz Bluetooth RF path
Drivers
- Linux
Partner Modules
IW620
Wi-Fi 6 (802.11ax) 2.4/5 GHz Dual-Band 2x2 + Bluetooth® 5.1| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|

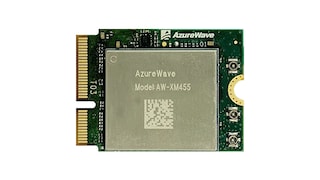

AW-XM455 |
USB | USB | -10 to 85 | Antenna pin(s) | 3 | SMD | 20 x 18 x 2.85 | CE, FCC, IC, Japan | i.MX |
