2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution

88W8977 Active

The 88W8977 System-on-Chip (SoC) is a highly integrated single-chip solution that incorporates both Wi-Fi (2.4/5 GHz) and Bluetooth technology. The IEEE 802.11n compliant dual-band system-on-chip offers Wi-Fi data rates up to MCS 7 (150 Mbit/s). The SoC is specifically designed to support the speed, reliability, and quality requirements of devices such as wearables, Internet of Things (IoT) and smart home applications. The Combo solution provides both simultaneous and independent operation of the IEEE 802.11n compliant 1x1 spatial stream and Bluetooth 5.2 with high speeds and mesh networking for increased Internet of Things (IoT) functionality.

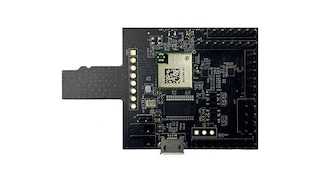

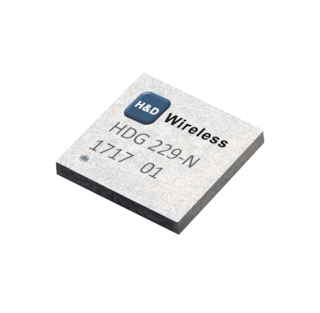

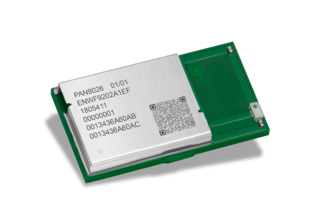

Wireless modules based on the NXP 88W8977 are offered by leading module manufacturers.

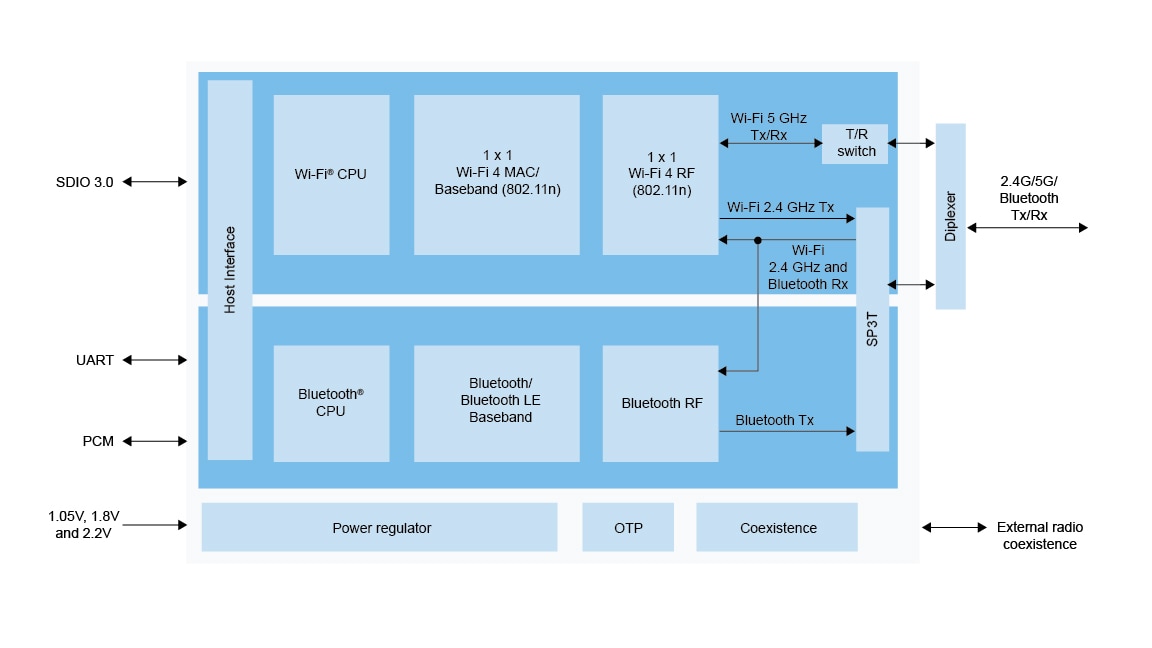

Block Diagram

88W8977 Block Diagram

88W8977 Block Diagram
Get diagram PDF

Features

Wi-Fi Key Features

  • Support 802.11 a/b/g/n
  • Dual band: 2.4 GHz and 5 GHz
  • Single stream 802.11n with 20 MHz and 40 MHz channels
  • Up to MCS7 data rates (150 Mbps)
  • Support 802.11mc for location
  • Security: support WPA/WPA2 mixed mode and WPA3 security standards

Bluetooth key features

  • Bluetooth 5.2 features
  • Direction Finding—Connection-oriented Angle of Arrival (AoA)
  • PCM audio interface
  • Security: AES

Host Interfaces

  • Wi-Fi host interfaces: SDIO 3.0
  • Bluetooth host interfaces: UART and SDIO 3.0

Operating Characteristics

  • Supply voltage: 1.8 V
  • Operating temperature
    • Extended: -30 to 85°C
    • Industrial: -40 to 85°C

Buy/Parametrics

1 result

Include 1 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

88W8977-A1-NMVE
Data Sheet

Active

HVQFN68

68
