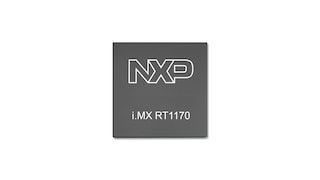

i.MX RT1170 Crossover MCUs are dual-core devices featuring an Arm® Cortex®-M7 and Arm® Cortex®-M4 for real-time microcontroller (MCU) performance and high integration for automotive, industrial and IoT applications.
The i.MX RT1170 Arm® Cortex®-M7 operates at up to 1 GHz and the Arm® Cortex®-M4 up to 400 MHz with 2 MB on-chip RAM. The real-time microcontroller (MCU) family offers various memory interfaces and a wide range of connectivity interfaces including 3x Ethernet up to Gbps with TSN/AVB, UART, SPI, I²C, USB and 3x CAN FD. The i.MX RT1170 provides advanced embedded security including secure boot and crypto engines.
The i.MX RT1170 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.
The i.MX RT1170 crossover MCU, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.
i.MX RT1160 Crossover MCU Dual-Core Arm® Cortex®-M7 and Cortex-M4
2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4 Tri-Radio Solution
1-10 of 13 results
Include 0 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Core Type | Operating Frequency [Max] (MHz) | SRAM (kB) | External Memory Supported | GPU 2D / GPU 3D | Display Features | Camera Interfaces | Serial Communication | CAN FD | Ethernet | USB Controllers | Security | PWM [Number, bits] | ADC [Number, bits] | Supply Voltage [Min to Max] (V) | PWM | Junction Temperature (Min to Max) (℃) | Package Type | Package Pitch (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1K @ US$8.25 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
Active | 10K @ US$7.16 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
Active | 10K @ US$6.69 | 1 x Arm Cortex-M7 | 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 | |||
Active | 1K @ US$9.16 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
Active | 10K @ US$7.73 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
Active | 10K @ US$7.16 | 1 x Arm Cortex-M7 | 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 | |||
Active | 10K @ US$8.53 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
Active | 1K @ US$9.31 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
Active | 10K @ US$8.02 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
Active | 10K @ US$7.44 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 |
