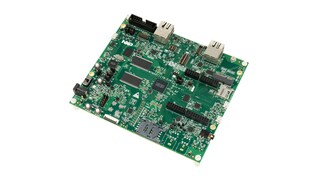

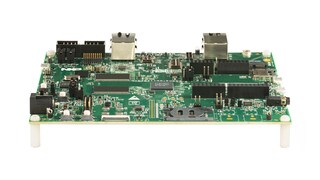

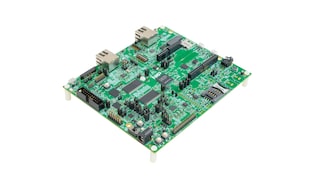

i.MX RT1170 Evaluation Kit

MIMXRT1170-EVKB

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores

Features

Processor

  • MIMXRT1176DVMAA
  • 1 GHz Arm Cortex-M7 core
  • 400 MHz Arm Cortex-M4 core

Board Memory

  • 512 Mbit SDRAM memory
  • 512 Mbit Octal Flash
  • 128 Mbit QSPI Flash
  • 2 Gbit Raw NAND Flash
  • 64 Mbit LPSPI Flash
  • TF socket for SD card

Connectivity

  • 2x Micro-USB OTG connectors
  • Ethernet (10/100/1000M) connector
  • Ethernet (10/100M) connector
  • M.2 connector
  • CAN transceivers
  • ARDUINO® interface - Expansion connectors need to be added
  • FRDM motor control interface
  • SIM card slot

Audio

  • Audio codec
  • 4-Pole audio headphone jack
  • External speaker connection
  • Microphone (analog and digital)
  • SPDIF Connector

Debug Capabilities

  • JTAG connector
  • On-board DAP-Link debugger

Sensors

  • 6-Axis ecompass (3-Axis Mag, 3-Axis Accel) sensor FXOS8700CQ

Expansion Connectors

  • MIPI® LCD connector
  • MIPI camera sensor connector

Additional

  • MCUXpresso Software and Tools, including MCUXpresso SDK with Amazon FreeRTOS™
  • IAR Embedded Workbench® IDE
  • Keil® IDE
  • All-in-one board design
  • 6-Layer through hole PCB

More

Buy Options

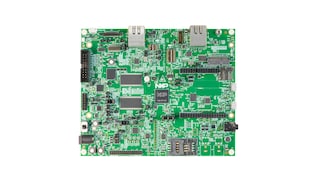

MIMXRT1170-EVKB-Image

Click to expand

  • $182.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 23
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

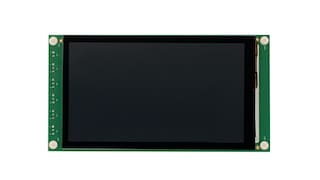

RK055HDMIPI4MA0-Image

Click to expand

  • $90.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
