i.MX 8XLite Evaluation Kit

MCIMX8DXL-WEVK Active

Roll over image to zoom in

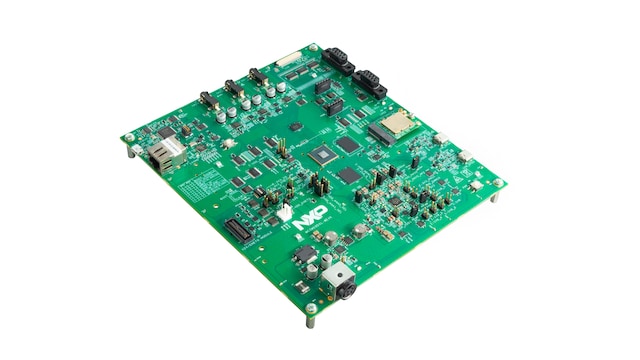

The i.MX 8XLite evaluation kit (EVK) provides a platform for evaluation and development using the Arm® Cortex® A35 + Cortex-M4F based i.MX 8XLite applications processors as well as the NXP PF7100 power management integrated circuit (PMIC) solution and sensors.

The i.MX 8XLite processor family is built with a high-level integration to support security, automotive telematics (V2X) and time-sensitive networking (TSN) while meeting efficient performance requirements. The EVK is supported with highly optimized drivers and software to enable broad-based applications for the embedded industrial and automotive markets.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • iMX8XLite: i.MX 8XLite Applications Processors for Telematics, V2X and Industrial Control

Power Management

PMICs

  • PF7100: 7-Channel Power Management Integrated Circuit for High Performance Applications, Fit for ASIL B Safety Level

System Basis Chips

  • FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

Interfaces

I²C Logic Multiplexers/Switches

  • PCA9548A: Eight-Channel I²C-Bus Switch with Reset

CAN with Flexible Data Rate

  • TJA144x: Automotive CAN FD Transceiver Family

Features

Processor

  • i.MX 8DualXLite applications processor
  • 2x Cortex-A35 @ up to 1.2 GHz
  • Cortex-M4 @ 264 MHz

Power Management

  • MPF7100BVMA1ES
  • MFS5600AMMA7ES

Memory

  • 1 GB 16-bit LPDDR4-2400
  • 32 GB eMMC 5.1
  • 64 MB Octal FlexSPI NOR flash

Connectivity

  • 1 Gbps Ethernet with TSN
  • USB 2.0 Type-C (x2)
  • SD card
  • CAN (x2)
  • 3.5 mm audio jack (x3)
  • M.2 connector (for Wi-Fi module interface)

Debug

  • JTAG 10-pin connector
  • Serial to USB connector

Additional Features

  • Integrated power management
  • V2X / Ethernet module interface
  • Parallel LCD interface
  • LEDs for power indication and general purpose use

More

Buy Options

MCIMX8DXL-WEVK-Image

Click to expand

  • MCIMX8DXL-WEVK
    Active

  • i.MX 8XLite Evaluation Kit .

  • Kit Contains:

    • CPU board
    • Wi-Fi module
    • Power supply
    • AC power cord
    • Worldwide adapter
    • USB Type-C cable
    • USB Type-B cable
    • SD card with BSP image
  • $799.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 21
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
