i.MX RT1180 Evaluation Kit

MIMXRT1180-EVK Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

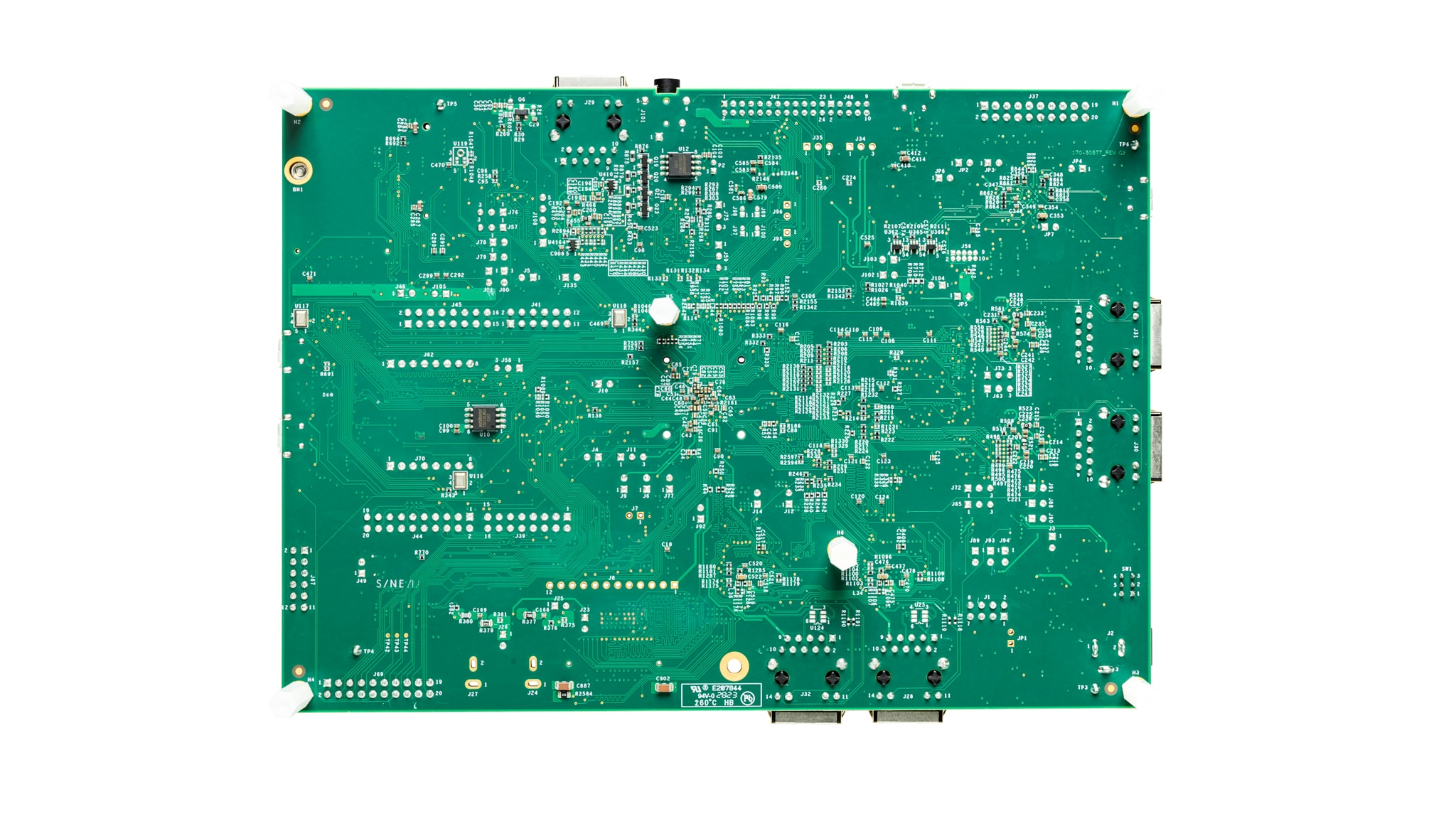

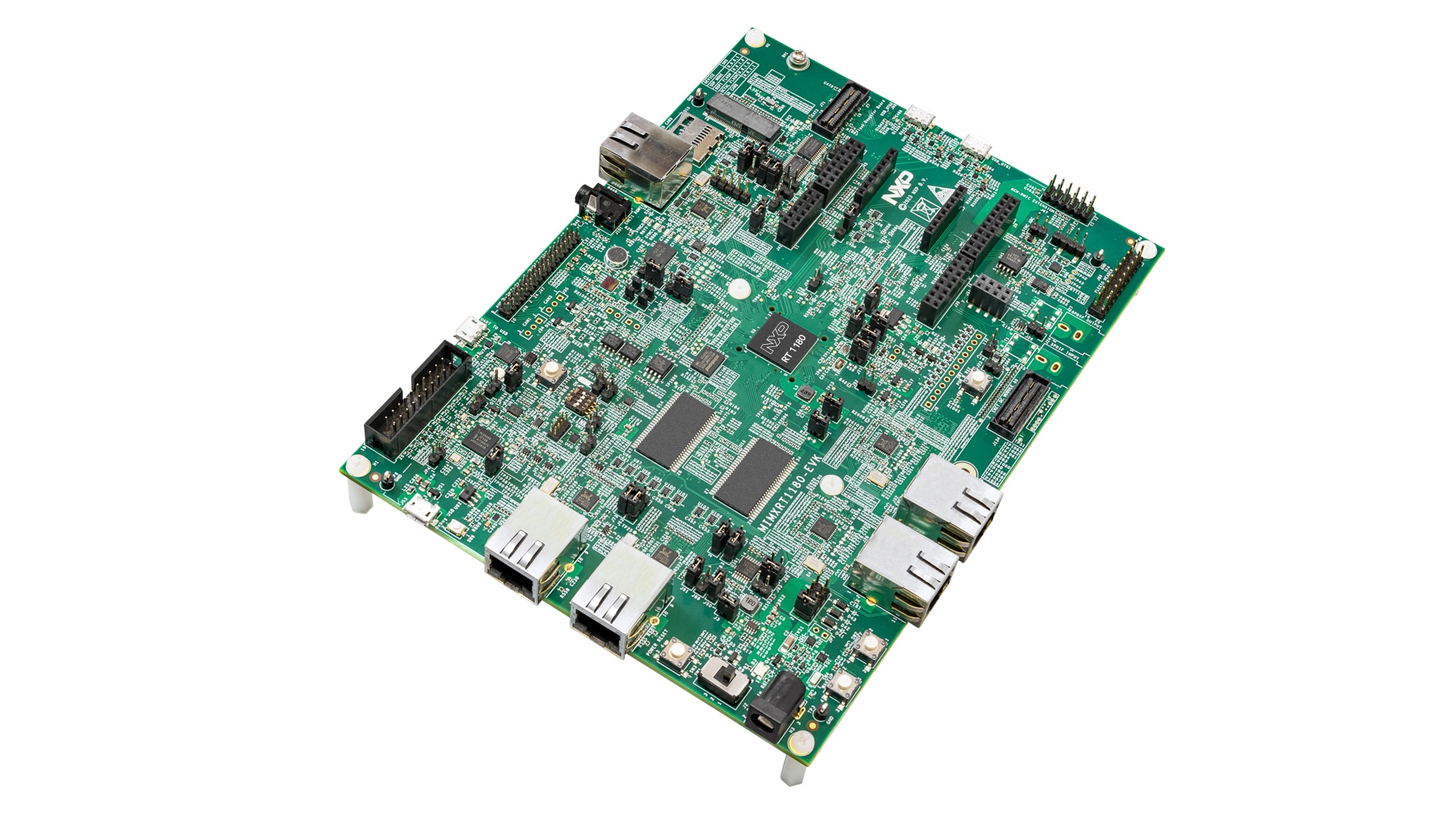

i.MX RT1180 evaluation kit provides a powerful, extendable platform to support most features of the i.MX RT1180 Crossover MCU, which is powered by Arm® Cortex®-M7 and Arm Cortex-M33 cores. Five Ethernet ports are provided for Ethernet/TSN switch, endpoint and EtherCAT applications. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The board features a high speed USB debug probe based with easy firmware update option to support MCU-Link.

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1180: i.MX RT1180: Crossover MCU with TSN Switch and EdgeLock®

Features

Processor

  • MIMXRT1189CVM8B
  • Arm Cortex-M7 core, operating up to 800 MHz
  • Arm Cortex-M33 core, operating up to 240 MHz

Board Memory

  • 64Mbit HyperRAM memory
  • 512 Mbit SDRAM memory
  • 512 Mbit Octal Flash
  • 128 Mbit QSPI Flash
  • 64 Mbit LPSPI Flash
  • Flash daughter card interface
  • TF socket for SD card

Connectivity

  • 3x Ethernet (10/100/1000M) connectors for TSN switch
  • 2x Ethernet (10/100M) connectors for EtherCAT, TSN switch and endpoint
  • 2x Micro-USB OTG connectors
  • M.2 connector
  • 2x CAN transceivers
  • ARDUINO® interface

Audio

  • Audio codec
  • 8CH-DMIC extension
  • 3.5mm audio headphone jack
  • External speaker connection
  • SPDIF Connector

Debug Capabilities

  • JTAG connector
  • On-board MCU-Link debugger

Sensors

  • 3-axis MEMS accelerometer sensor FXLS8974CFR3 for I2C
  • 3D accelerometer and 3D gyroscope LSM6DSOXTR for I3C
  • Delta-Sigma ADC Modulator AMC1106M05DWV for SINC

Expansion Connectors

  • Gigabit Ethernet MAC interfaces

Additional
