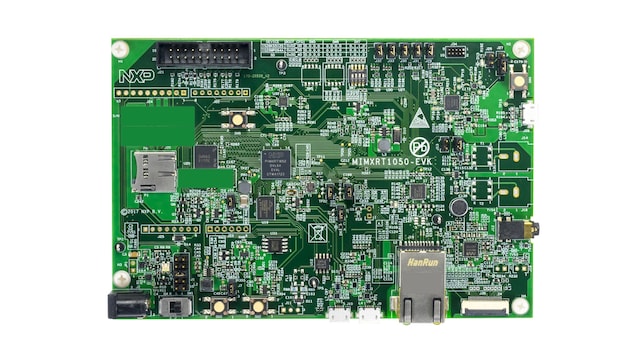

i.MX RT1050 Evaluation Kit

MIMXRT1050-EVK Active

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core

Products

No Longer Manufactured

  • FXOS8700CQ: Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

Interfaces

USB Interfaces

Power Management

Load Switches

  • NX5P3090UK: USB PD and Type-C Current-Limited Power Switch

Features

Processor

  • MIMXRT1052DVL6A processor

Memory

  • 256 Mb SDRAM memory
  • 512 Mb Hyper Flash
  • 64 Mb QSPI Flash
  • Footprint for QSPI Flash
  • TF socket for SD card

Display and Audio

  • Parallel LCD connector
  • Camera connector
  • Audio codec
  • 4-pole audio headphone jack
  • External speaker connection
  • Microphone
  • S/PDIF connector

Connectivity

  • Micro USB host and OTG connectors
  • Ethernet (10/100T) connector
  • CAN transceivers
  • Arduino® interface

Software and support application development

More

Buy Options

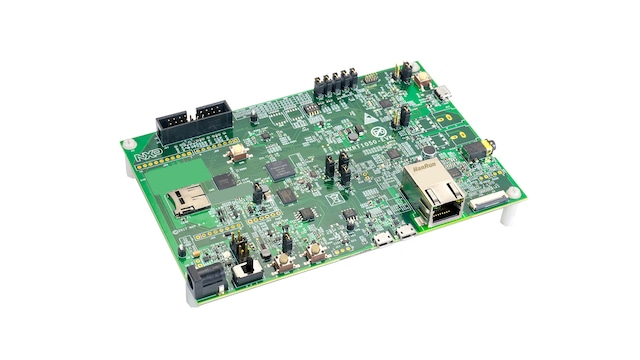

IMXRT1050-EVKB-Image

Click to expand

  • IMXRT1050-EVKB
    Active

  • i.MX RT1050 Evaluation Kit.

  • Kit Contains:

    • MIMXRT1050-EVK board
    • USB cable (Micro B)
  • $90.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

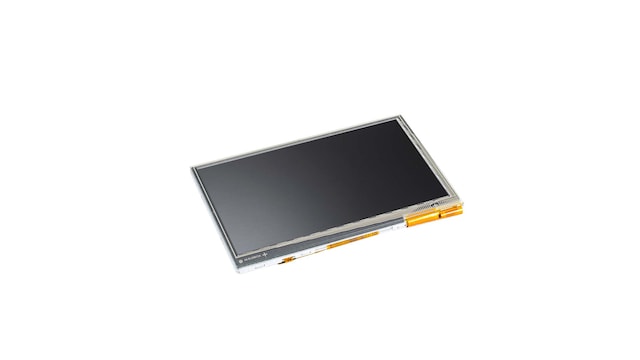

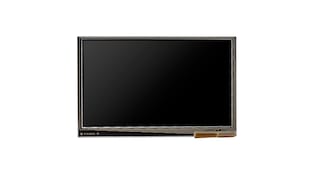

RK043FN02H-CT-Image

Click to expand

  • For a quantity of 1
Order from distributors
