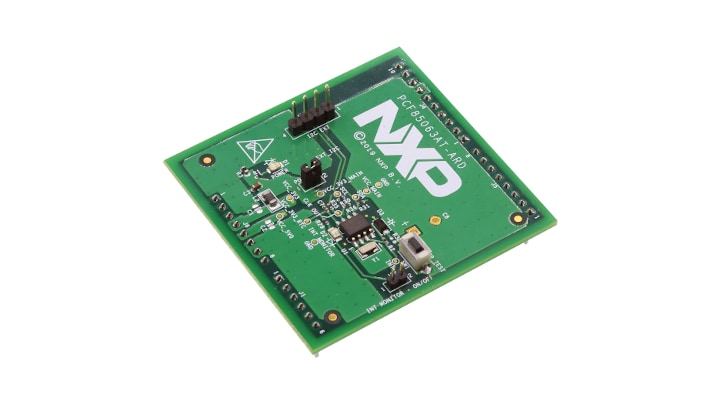

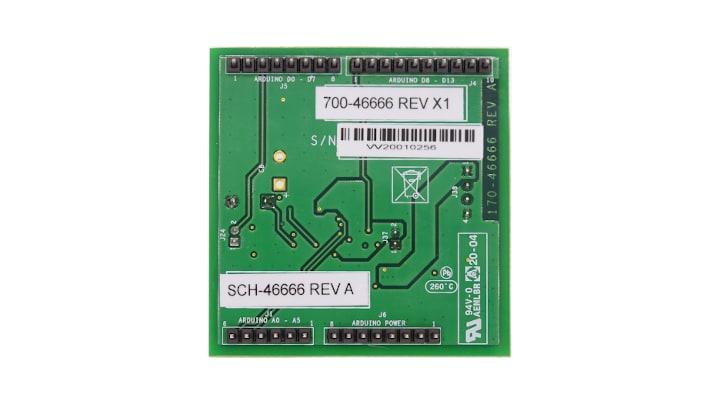

PCF85063AT-ARD Arduino® Shield - Tiny Real-Time Clock

PCF85063AT-ARD Active

Roll over image to zoom in

The PCF85063AT Arduino Shield features most of RTC functionalities on a board compatible with Arduino R3 pin layout. A graphical interface allows the user to easily explore the different functions of the RTC. Moreover, embedded driver and demo application can be found as reference code to quick start.

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF85063A: Tiny Real-Time Clock/Calendar with Alarm Function and I²C-Bus

Features

Power Supply

  • Supply voltage: 0.9 V to 5.5 V
  • Low current (0.22 µA @ VDD 3.3 V and 25°C)

Interface

  • 400 kHz two-line I²C-bus interface

General Features

  • Calendar support based on 32.768 kHz quartz crystal (Year, Month, Day, Weekday, Hours, Minutes and Seconds)
  • Alarm function
  • Countdown timer
  • Oscillator stop detection function
  • Minute and half minute interrupt
  • Interrupt output
  • Programmable clock output for peripheral devices (TestPoint):
    • 32.768 kHz
    • 16.384 kHz
    • 8.192 kHz
    • 4.096 kHz
    • 2.048 kHz
    • 1.024 kHz
    • 1 Hz

Package

  • SO8 - plastic small outline package; 8 leads; body width 3.9 mm; DFN2626-10
  • plastic thermal enhanced extremely thin small outline package; no leads; 10 terminals; body 2.6 x 2.6 x 0.5 mm;
  • TSSOP8 - plastic thin shrink small outline package; 8 leads; body width 3 mm

Buy Options

PCF85063AT-ARD-Image

Click to expand

  • PCF85063AT-ARD
    Active

  • PCF85063AT-ARD Arduino® Shield - Tiny Real-Time Clock.

  • Kit contains:

    • PCF85063AT Tiny Real-Time Clock on Arduino Shield form factor
    • Quick start guide
  • $22.22 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 50
    • Shipping: Normally ships 1-2 business days
ADD TO CART
