P3H2841HN I3C Hub Arduino® Shield Evaluation Board

P3H2841HN-ARD newPreproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

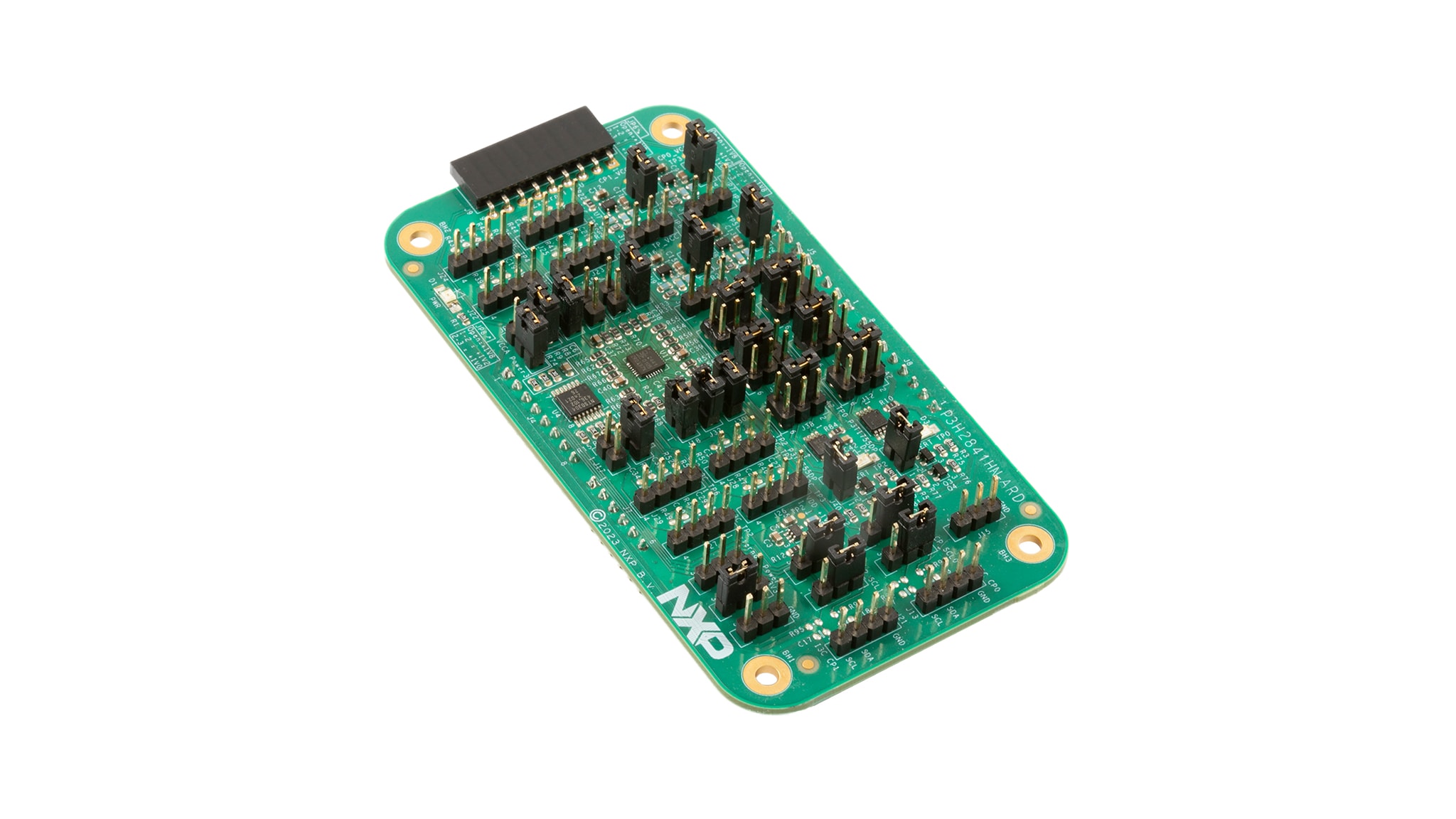

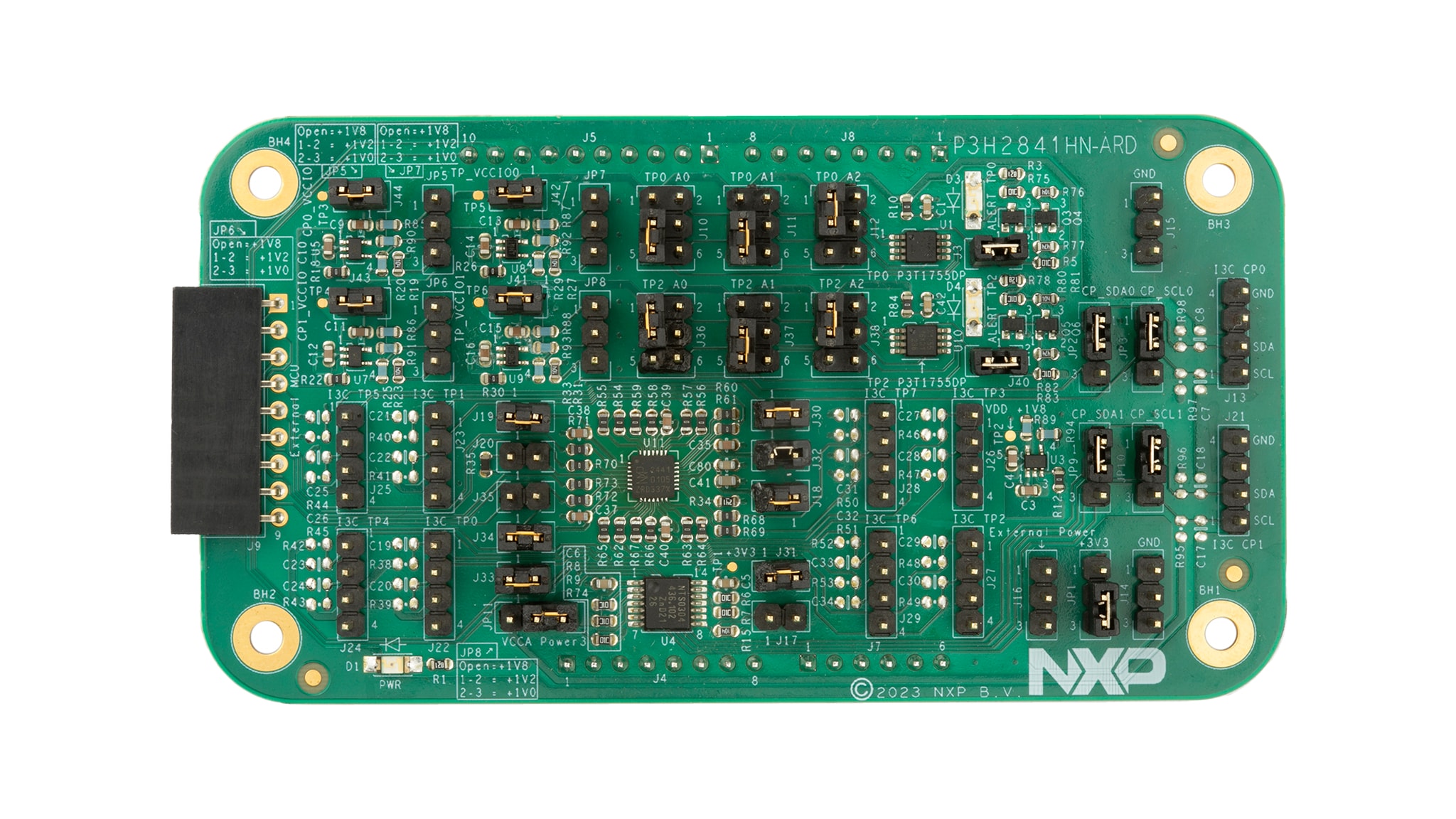

P3H2841HN I3C Hub Arduino Shield evaluation board is a complete evaluation platform for the P3H2841HN (Under development). The I3C Hub has 2 controller port connectors and 8 target ports connectors for P3H2841HN controller and target ports evaluation.

On-board, it has 1.0 V / 1.2 V / 1.8 V LDOs for controller and target ports power supply configuration and two temperature sensors (P3T1755DP) with alert LEDs providing complete system validation.

Moreover, the P3H2841HN is equipped with convenient test points for easy scope measurements and signal access, a USB interface to the host PC and a power supply from USB port or external power supply that can be used to power P3H2841HN-ARD evaluation board.

Product Details

Features

  • Two controller Ports to connect to I3C or I²C/SMBus controller devices: Controller Port 0 (CP0) and controller Port 1 (CP1). Pre-configured I3C mode only by default
  • Eight Target Ports (TP), each port can be used to connect to I3C only devices, I²C only devices, mixed I3C and I²C devices
  • HUB Network to communicate between Controller ports to Target Ports in a transparent bridge mode
  • Integrated LDO regulators to provide 1.0 V, 1.2 V or 1.8 V
  • I3C IBI and hot join support
  • A user-friendly GUI makes it easy to explore the hub features
