PCA8561 18 × 4 LCD Segment Driver Arduino® Shield

PCA8561AHN-ARD Active

Roll over image to zoom in

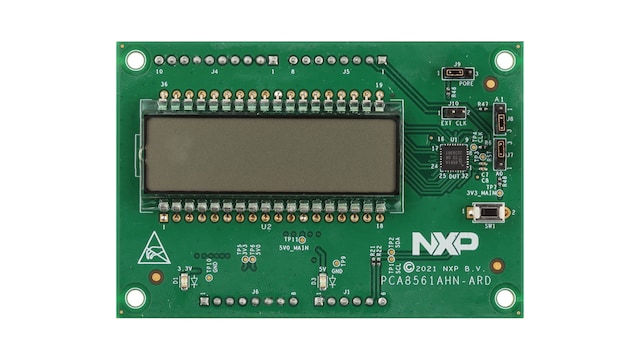

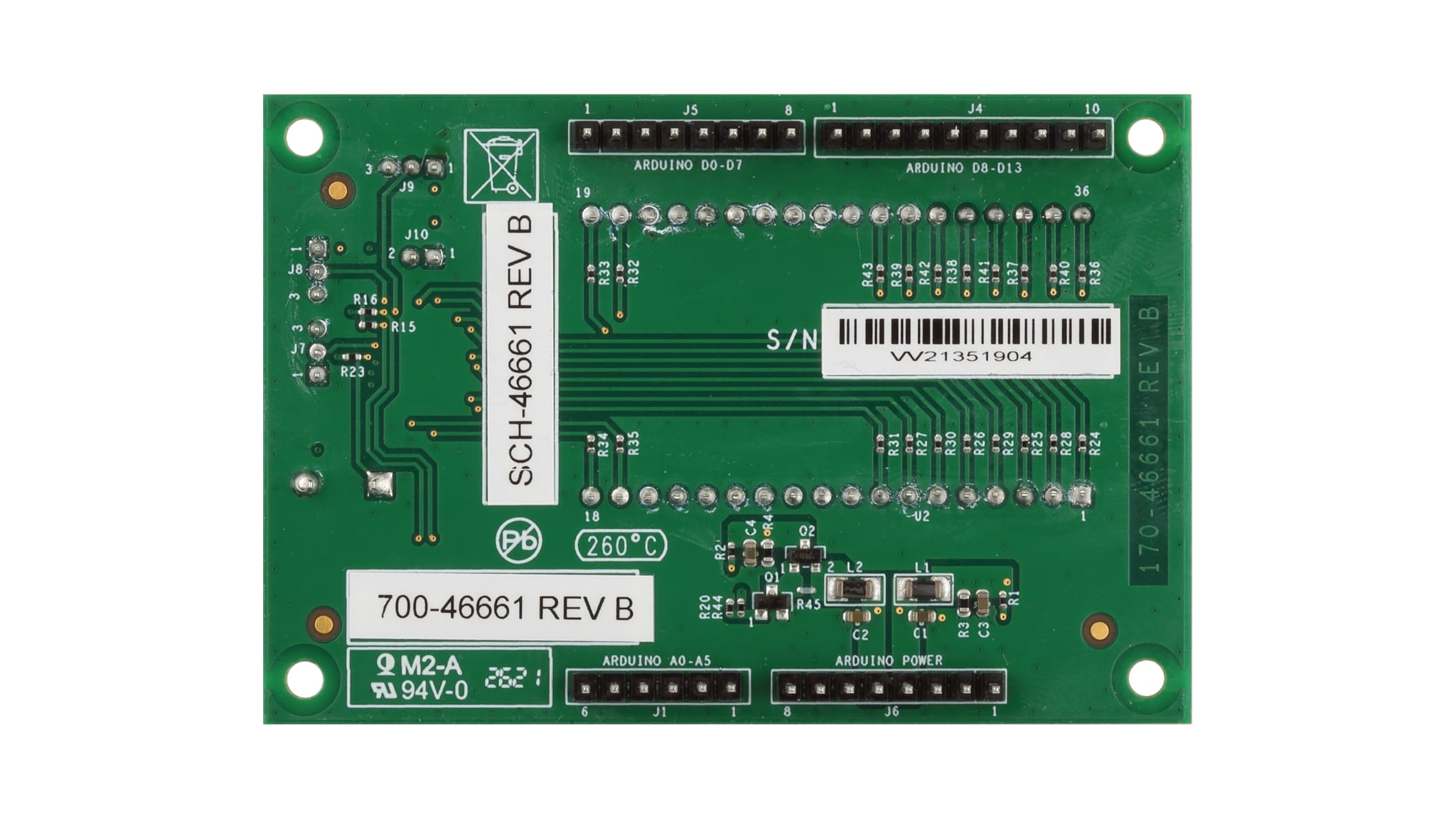

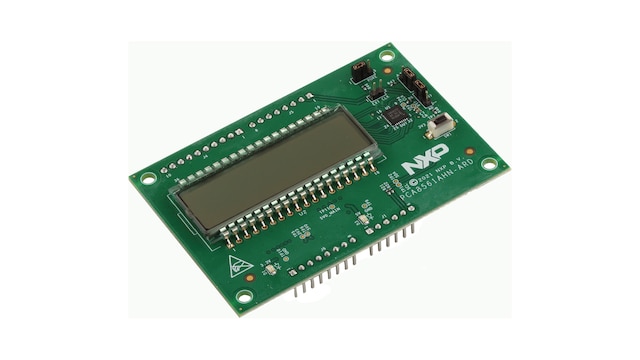

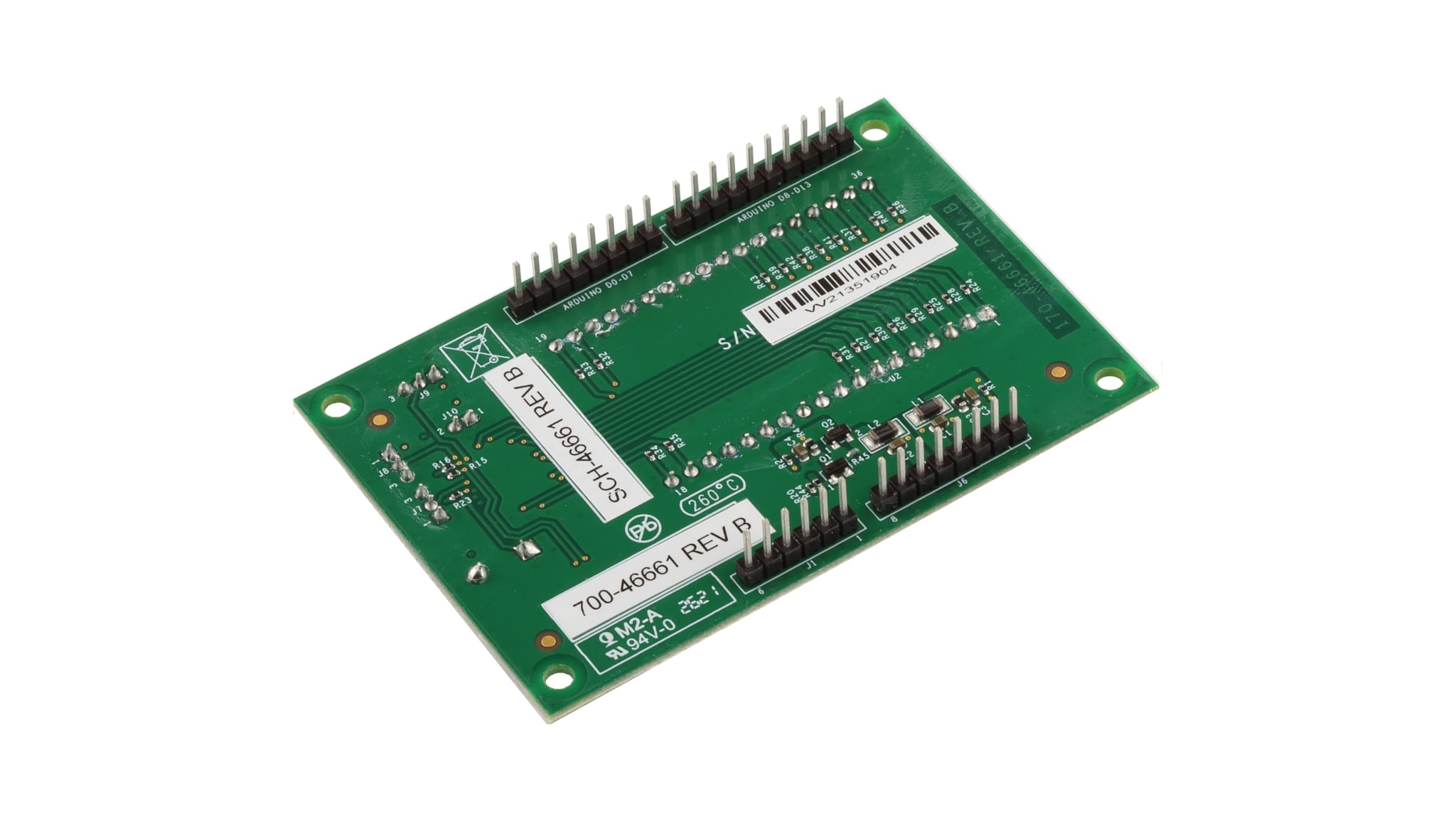

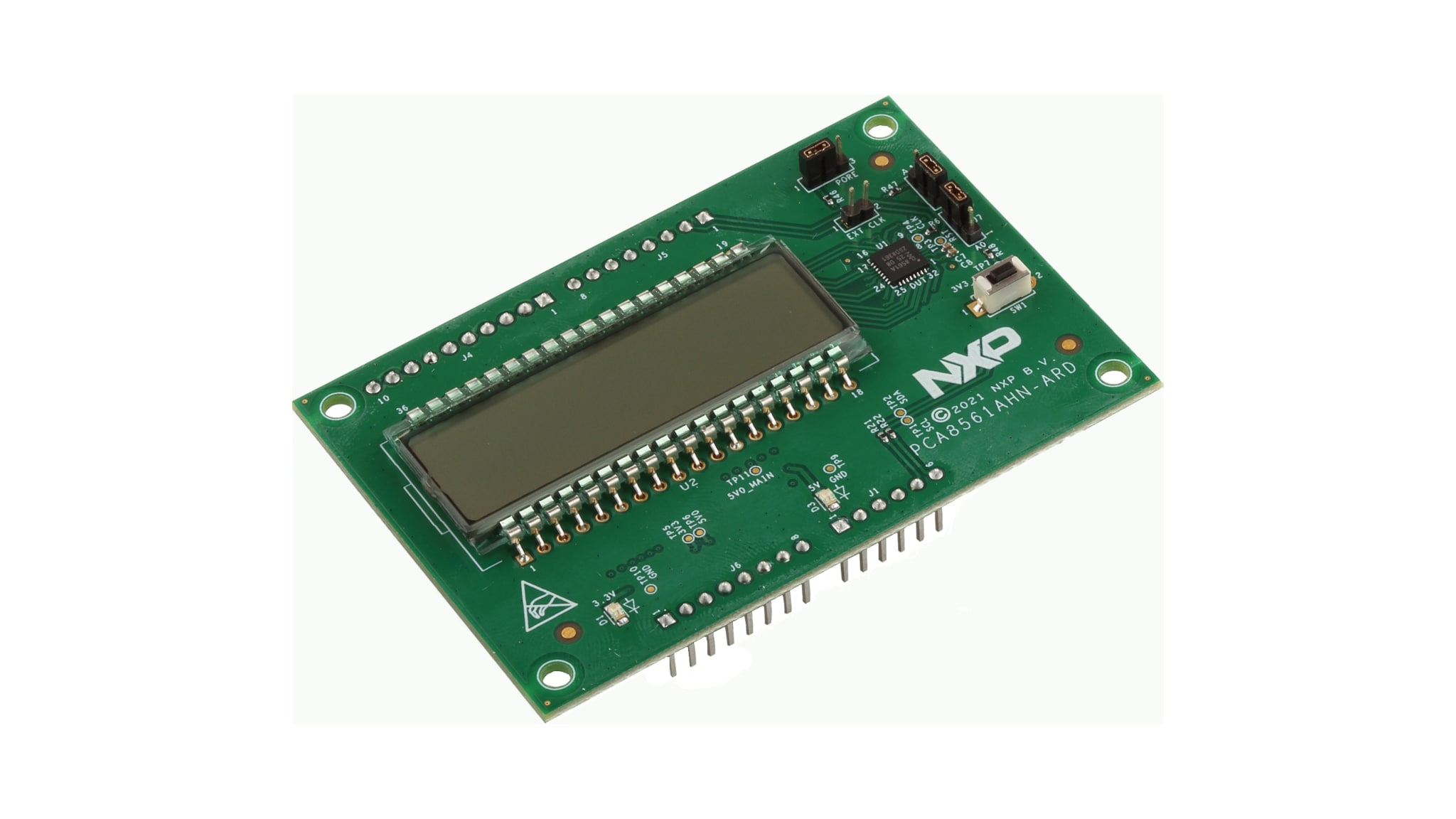

The PCA8561AHN-ARD Arduino Shield board allows easy integration with Arduino EVKs to evaluate the PCA8561A LCD driver features. The LCD panel (DE 301-RS-20/6, Display Elektronik) on the board is used for multi-backplane and segment evaluations.

Supported Devices

Interfaces

LCD Drivers

  • PCA8561: Automotive 18 X 4 LCD Segment Driver

Features

General Function

  • Single chip LCD controller and driver
  • Selectable backplane drive configuration: static, 2, 3 or 4 backplane multiplexing
  • Selectable display bias configuration: static, 1⁄2, or 1⁄3
  • 18 segment drives:
    • Up to 9 7-segment numeric characters programmable
    • Up to 4 14-segment alphanumeric characters
    • Any graphics of up to 72 segments/elements

Power

  • Supply voltage: 1.8 V to 5.5 V (VDD, VLCD)
  • Low standby current (0.6 µA)

Interface

  • 400 KHz I²C-bus
  • 5 MHz SPI bus

Package

  • HVQFN32: plastic thermal enhanced very thin quad flat package, no leads, 32 terminals, body 5 x 5 x 0.85 mm

Buy Options

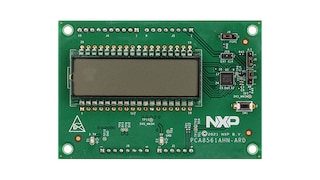

PCA8561AHN-ARD-Image

Click to expand

  • PCA8561AHN-ARD
    Active

  • PCA8561 18 × 4 LCD Segment Driver Arduino® Shield.

  • Kit contains:

    • PCA8561AHN-ARD Arduino shield
    • Quick reference card
    • Additional hardware required: USB A-to-MicroB cable (not included)
  • $22.22 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 21
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSPPCA8561AHN-ARDen 3 User Guide User Guide t792 1 User Manual User Manual t1009 2 en_US en_US 1 1 English PCA8561 is an ultra low-power LCD segment driver with 4 backplane- and 18 segment-driver outputs, with either an I2C- or an SPI-bus interface. It comprises an internal oscillator, bias generation, instruction decoding and display controller. 1651174111104718331867 Y 1651174111104718331867 GS-PCA8561AHN-ARD GS-PCA8561AHN-ARD /document/guide/getting-started-with-the-pca8561ahn-ard-evaluation-board:GS-PCA8561AHN-ARD HTML 0 2022-04-28 GS-PCA8561AHN-ARD TSP User Guide 132339537837198660 2025-03-05 en Aug 2, 2022 User Guide t792 User Guide User Guide Y Getting Started with the PCA8561AHN-ARD Evaluation Board false en User Manual User Manual 2 2 1.0 English The PCA8561AHN-ARD evaluation board is a daughter card equipped with Arduino port, designated for easy test and design of PCA8561 IC, automotive 18x4 LCD segment driver. The board is fully compliant with IMXRT1050 EVK, LPCXpresso55S69 (LPC55S69-ECK) and i.MX 8M Mini LPDDR4 EVK (8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software control. The board can be attached to any device equipped with an Arduino port. 1651157174583710752520 TSP 2.4 MB None None documents None 1651157174583710752520 /docs/en/user-manual/UM11760.pdf 2360612 /docs/en/user-manual/UM11760.pdf UM11760 documents N N 2022-04-28 UM11760, PCA8561AHN-ARD Evaluation Board User Manual /docs/en/user-manual/UM11760.pdf /docs/en/user-manual/UM11760.pdf User Manual N 309919593431037931 2023-06-19 pdf N en Apr 21, 2022 309919593431037931 User Manual Y N UM11760, PCA8561AHN-ARD Evaluation Board User Manual 3 1.0 English UM11581 - Arduino Shields GUI and Firmware Installation - User Guide 1614116451627725073732 TSP 281.7 KB None None documents None 1614116451627725073732 /docs/en/user-guide/UM11581.pdf 281726 /docs/en/user-guide/UM11581.pdf UM11581 documents N N 2021-02-23 UM11581 - Arduino Shields GUI and Firmware Installation - User Guide /docs/en/user-guide/UM11581.pdf /docs/en/user-guide/UM11581.pdf User Manual N 309919593431037931 2024-10-21 pdf N en Feb 22, 2021 309919593431037931 User Manual Y N UM11581 - Arduino Shields GUI and Firmware Installation - User Guide false 0 PCA8561AHN-ARD downloads en true 0 Y TSP User Guide 1 2022-04-28 1651174111104718331867 1 Aug 2, 2022 User Guide User Guide PCA8561 is an ultra low-power LCD segment driver with 4 backplane- and 18 segment-driver outputs, with either an I2C- or an SPI-bus interface. It comprises an internal oscillator, bias generation, instruction decoding and display controller. Y GS-PCA8561AHN-ARD English 0 User Guide 2025-03-05 /document/guide/getting-started-with-the-pca8561ahn-ard-evaluation-board:GS-PCA8561AHN-ARD Getting Started with the PCA8561AHN-ARD Evaluation Board GS-PCA8561AHN-ARD TSP 132339537837198660 User Guide en Y t792 HTML GS-PCA8561AHN-ARD 1651174111104718331867 User Manual 2 /docs/en/user-manual/UM11760.pdf 2022-04-28 1651157174583710752520 TSP 2 Apr 21, 2022 User Manual The PCA8561AHN-ARD evaluation board is a daughter card equipped with Arduino port, designated for easy test and design of PCA8561 IC, automotive 18x4 LCD segment driver. The board is fully compliant with IMXRT1050 EVK, LPCXpresso55S69 (LPC55S69-ECK) and i.MX 8M Mini LPDDR4 EVK (8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software control. The board can be attached to any device equipped with an Arduino port. None /docs/en/user-manual/UM11760.pdf English documents 2360612 None 309919593431037931 2023-06-19 N /docs/en/user-manual/UM11760.pdf UM11760, PCA8561AHN-ARD Evaluation Board User Manual /docs/en/user-manual/UM11760.pdf documents 309919593431037931 User Manual N en None Y pdf 1.0 N N UM11760, PCA8561AHN-ARD Evaluation Board User Manual 2.4 MB UM11760 N 1651157174583710752520 /docs/en/user-guide/UM11581.pdf 2021-02-23 1614116451627725073732 TSP 3 Feb 22, 2021 User Manual UM11581 - Arduino Shields GUI and Firmware Installation - User Guide None /docs/en/user-guide/UM11581.pdf English documents 281726 None 309919593431037931 2024-10-21 N /docs/en/user-guide/UM11581.pdf UM11581 - Arduino Shields GUI and Firmware Installation - User Guide /docs/en/user-guide/UM11581.pdf documents 309919593431037931 User Manual N en None Y pdf 1.0 N N UM11581 - Arduino Shields GUI and Firmware Installation - User Guide 281.7 KB UM11581 N 1614116451627725073732 true Y Tools
