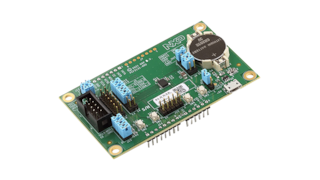

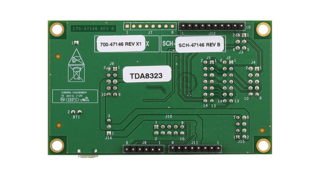

PCF2131/PCA2131 Arduino® Shield Evaluation Board

PCF2131-ARD

Roll over image to zoom in

The PCF2131/PCA2131 is a CMOS real time clock (RTC) module and calendar with an integrated temperature compensated crystal (Xtal) oscillator (TCXO) and a 32.768 kHz quartz crystal optimized for very high accuracy and ultra low power consumption. PCF2131-ARD is used to evaluate the functions and performances of PCF2131/PCA2131.

Product Details

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal
  • PCA2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal for Automotive Applications

Features

Real-Time Clock Module

  • Nano-power
  • High accuracy
  • Temperature compensation
  • Time stamps
  • Integrated quartz crystal

Buy Options

PCF2131-ARD-Image

Click to expand

  • PCF2131-ARD
    Active

  • PCF2131/PCA2131 Arduino® Shield Evaluation Board.

  • Kit contains:

    • PCF2131-ARD PCB hardware
    • Quick Start Guide
  • $19.80 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
