Nano-Power Highly Accurate RTC with Integrated Quartz Crystal for Automotive Applications

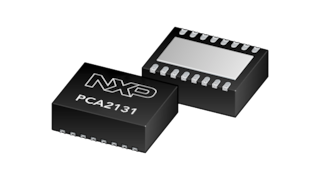

PCA2131
Active

Roll over image to zoom in

The PCA2131 is a CMOS real time clock (RTC) and calendar with an integrated temperature compensated crystal (Xtal) oscillator (TCXO) and a 32.768 kHz quartz crystal optimized for very high accuracy and ultra-low power consumption. The PCA2131 features:

  • Automotive qualified AEC-Q100 grade 2
  • Operating temperature range from -40 °C up to 105°C
  • Clock operational up to 125 °C
  • Selectable I²C-bus or SPI-bus interfaces for full flexibility when selecting the associated MCU/MPU
  • Backup battery input and switch-over circuit, allowing the RTC to keep track of the time, even when the main power supply is removed
  • Calendar capabilities to keep tracking of the time from years down to 1/100 seconds.
  • Up to 4 time stamp registers, which can be associated to time stamp input in order to register tampering events
  • Up to 2 interrupt outputs to enable/disable systems to reduce the overall current consumption

Block Diagram

PCA2131 Block Diagram

PCA2131 Block Diagram
Get diagram PDF

Features

Nano-Power Device

  • Clock operating voltage from 1.2 V to 5.5 V
  • Supply current of 106 nA @ VDD = 3.3 V (typical)

Highly Accurate Real Timing

  • ±3 ppm from -40 °C to +85 °C (typical)
  • ±8 ppm from +85 °C to +105 °C (typical)

Automotive Qualified

  • AEC-Q100 grade 2

Integrated Quartz Crystal and Oscillator

  • 32.768 kHz quartz crystal
  • Temperature compensated crystal oscillator (TCXO)
  • Clock functional up to 125 °C.

Battery Backup Supported

  • Battery backup input pin and switch-over circuitry
  • Battery backed output voltage
  • Battery low detection function

Timestamp and Interrupt Functionality

  • 4x Time stamp inputs with independent registers
  • 2x Interrupt pins with selectable interrupt source

Multiple Interfaces Supported

  • I²C-bus support (400 kHz fast-mode)
  • SPI-bus (maximum speed 6.5 Mbit/s)

Calendar Capabilities

  • Provide year, month, day, weekday, hours, minutes, seconds and 1/100 seconds
  • Leap year correction

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The PCA2131TF/Q900 is included in the 15-year program

More

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

RTC Type

Accuracy (Typ) (+/- ppm)

Supply Voltage [Min to Max] (V)

Low Supply Current (μA)

Communication protocol

Battery Back Up

Watchdog timer

Programmable alarm

Countdown Timer

Tamper Input

Interrupt Output

Integrated Temperature Compensation

AEC-Q100 compliant

Package Type

Package Dimensions (LxWxZ (mm))

Operating Temperature (Min-Max) (℃)

Budgetary Price excluding tax

PCA2131TF
Data Sheet

Active

Module

3

1.2 to 5.5

0.11

SPI

Yes

Y

Y

N

4

2

Y

Y

HLSON16

4.5 x 3.5 x 1.45

-40 to 105

1K @ US$1.49
