100 NA Real-Time Clock/Calendar with Battery Backup

PCF8523 Active

The PCF8523 is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption. Data is transferred serially via the I²C-bus with a maximum data rate of 1000 kbit/s. Alarm and timer functions are available with the possibility to generate a wake-up signal on an interrupt pin. An offset register allows fine-tuning of the clock. The PCF8523 has a backup battery switch-over circuit, which detects power failures and automatically switches to the battery supply when a power failure occurs.

Product Details

Features

Key Features

  • Provides year, month, day, weekday, hours, minutes, and seconds based on a 32.768 kHz quartz crystal
  • Resolution: seconds to years
  • Clock operating voltage: 1.0 V to 5.5 V
  • Low backup current: typical 150 nA at VDD = 3.0 V and Tamb = 25 °C
  • 2 line bidirectional 1 MHz Fast-mode Plus (Fm+) I²C interface, read D1h, write D0h
  • Battery backup input pin and switch-over circuit
  • Freely programmable timer and alarm with interrupt capability
  • Selectable integrated oscillator load capacitors for CL = 7 pF or CL = 12.5 pF
  • Internal Power-On Reset (POR)
  • Open-drain interrupt or clock output pins
  • Programmable offset register for frequency adjustment

Buy/Parametrics

3 results

Include 1 NRND

Part

Show description

Order

CAD Model

Status

RTC Type

Accuracy (Typ) (+/- ppm)

Supply Voltage [Min to Max] (V)

Low Supply Current (μA)

Communication protocol

Capacitive Load (μF)

Battery Back Up

Watchdog timer

Programmable alarm

Countdown Timer

Tamper Input

Interrupt Output

Integrated Temperature Compensation

AEC-Q100 compliant

Package Type

Package Dimensions (LxWxZ (mm))

Operating Temperature (Min-Max) (℃)

Budgetary Price excluding tax

PCF8523T
Data Sheet

Active

IC

20 to 50 at 25°C

1.6 to 5.5

0.15

I²C

7, 12.5

Yes

Y

Y

Y

0

2

N

N

SO8

4.9 x 3.9 x 1.75

-40 to 85

1K @ US$0.45
PCF8523TK
Data Sheet

Active

IC

20 to 50 at 25°C

1.6 to 5.5

0.15

I²C

7, 12.5

Yes

Y

Y

Y

0

2

N

N

HVSON8

—

-40 to 85

1K @ US$0.52

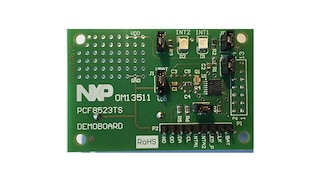

PCF8523TS
Data Sheet

Active

IC

20 to 50 at 25°C

1.6 to 5.5

0.15

I²C

7, 12.5

Yes

Y

Y

Y

0

2

N

N

TSSOP14

5 x 4.4 x 1.1

-40 to 85

1K @ US$0.48
