The PCF85363A is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption and with automatic switching to battery on main power loss. The RTC can also be configured as a stop-watch (elapsed time counter). Three time log registers triggered from battery switch-over as well as input driven events. Featuring clock output and two independent interrupt signals, two alarms, I²C interface and quartz crystal calibration, 64 byte battery backed-up RAM.

Data Sheet

Product Details

Features

Key Features

UL Recognized Component (PCF85363ATL)
Provides year, month, day, weekday, hours, minutes, seconds and 100th seconds based on a 32.768 kHz quartz crystal
Stop-watch mode for elapsed time counting. From 100th seconds to 999999 hours
Two independent alarms
Battery back-up circuit
WatchDog timer
Three timestamp registers
Two independent interrupt generators plus predefined interrupts at every second, minute, or hour
64 byte battery backed-up RAM
Frequency adjustment via programmable offset register
Clock operating voltage: 0.9 V to 5.5 V
Low current; typical 0.28 μA at V_DD = 3.0 V and T_amb = 25 °C
400 kHz two-line I²C-bus interface (at V_DD = 1.8 V to 5.5 V)
Programmable clock output for peripheral devices (32.768 kHz, 16.384 kHz, 8.192 kHz, 4.096 kHz, 2.048 kHz, 1.024 kHz, and 1 Hz)
Configurable oscillator circuit for a wide variety of quartzes: C_L = 6 pF, C_L = 7 pF, and C_L = 12.5 pF

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Symbols and Footprints
PCF85363ATT1-A-TSSOP8-CAD Symbol and PCB Footprint – BXL File

ZIPRev 1Sep 22, 202048.1 KBPCF85363ATT1-A-TSSOP8-BXL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
PCF85363ATT1_A-TSSOP8-CAD Symbol and PCB Footprint – BXL File

ZIPRev 1Jul 9, 202048.1 KBPCF85363ATT1_A-TSSOP8-BXL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

2 design files

Symbols and Footprints
PCF85363ATT1-A-TSSOP8-CAD Symbol and PCB Footprint – BXL File

ZIPRev 1Sep 22, 2020 11:16:0048.1 KBPCF85363ATT1-A-TSSOP8-BXL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
PCF85363ATT1_A-TSSOP8-CAD Symbol and PCB Footprint – BXL File

ZIPRev 1Jul 9, 2020 14:03:0048.1 KBPCF85363ATT1_A-TSSOP8-BXL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1 hardware offering

Evaluation and Development Boards

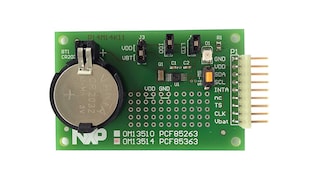

PC Evaluation Board for the I²C-bus RTC PCF85363A
