Tiny Real-Time Clock/Calendar with Alarm Function and I²C-Bus

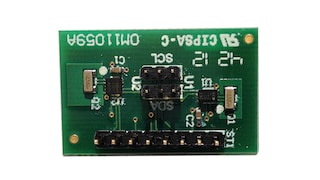

PCF85063A Active

The PCF85063ATL is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption. An offset register allows fine-tuning of the clock. All addresses and data are transferred serially via the two-line bidirectional I²C-bus. Maximum data rate is 400 kbit/s. The register address is incremented automatically after each written or read data byte.

Block Diagram

PCF85063A

PCF85063A Block Diagram
Get diagram PDF

Features

Key Features

    Provides year, month, day, weekday, hours, minutes, and seconds based on a 32.768 kHz quartz crystal
  • Clock operating voltage: 0.9 V to 5.5 V
  • Low current; typical 0.27 μA at VDD = 3.0 V and Tamb = 25 °C
  • 400 kHz two-line I²C-bus interface (at VDD = 1.8 V to 5.5 V)
  • Programmable clock output for peripheral devices (32.768 kHz, 16.384 kHz, 8.192 kHz, 4.096 kHz, 2.048 kHz, 1.024 kHz, and 1 Hz)
  • Selectable integrated oscillator load capacitors for CL = 7 pF or CL = 12.5 pF
  • Alarm function
  • Countdown timer
  • Minute and half minute interrupt
  • Internal Power-On Reset (POR)
  • Programmable offset register for frequency adjustment
