Demo Board for PCF85063TP and PCF85063ATL I²C RTCs

OM11059A Active

Roll over image to zoom in

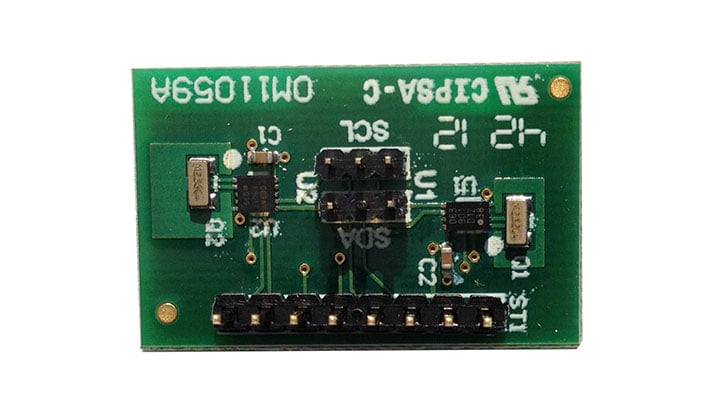

OM11059A is an evaluation/demo board for the I²C RTC PCF85063TP and PCF85063ATL to be used in the design phase of any project.

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF85063TP: Tiny Real-Time Clock/Calendar
  • PCF85063A: Tiny Real-Time Clock/Calendar with Alarm Function and I²C-Bus

Features

Supports

  • PCF85063TP (basic functionality with I²C-bus interface) and PCF85063ATL (enhanced functionality with I²C-bus interface)

Buy Options

OM11059A-Image

Click to expand

  • OM11059A
    Active

  • Demoboard for the I2C RTC PCF85063TP and PCF85063ATL.

  • For a quantity of 1
Order from distributors
