HVBMS Reference Design Bundle Using ETPL

RD-HVBMSCTBUN

Roll over image to zoom in

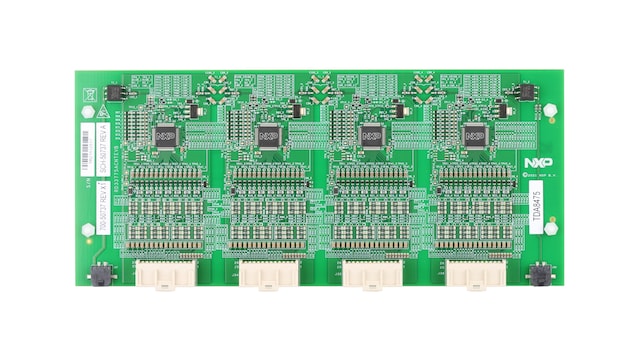

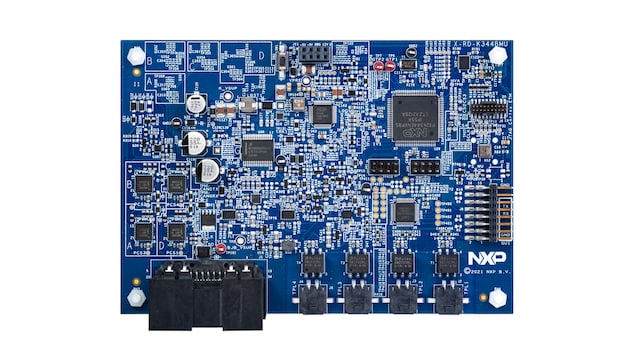

The RD-HVBMSCTBUN is a reference design bundle for high-voltage battery management systems. It provides a complete hardware solution including a RD-K344BMU battery management unit (BMU), a RD33775ACNTEVB cell monitoring unit (CMU) and a RD772BJBTPLEVB battery junction box (BJB), software drivers and a scalable Functional Safety documentation set.

Carmakers, suppliers and software ecosystem partners can use this bundle to develop, test and showcase new battery architectures and innovations.

Block Diagram

HVBMS Reference Design Bundle Using ETPL

HVBMS Reference Design Bundle Using ETPL
Get diagram PDF

Supported Devices

Sensors

Battery Pressure Monitoring Sensors (BPMS)

  • NBP8-9x: Highly Integrated Battery Pressure Monitor Sensor

Power Management

Battery Cell Controllers

  • MC33772C: 6-Channel Li-Ion Battery Cell Controller IC
  • MC33775: 14 Channel Li-Ion Battery Cell Controller IC ASIL D

Battery Communication ICs

  • MC33665A: General Purpose BMS Communication TPL Transceiver and CAN FD Gateway

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

System Basis Chips

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

BLDC, H-Bridge, Stepper

  • HB2000: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

Analog and Mixed Signal

Real-Time Clocks

  • PCA2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal for Automotive Applications

Interfaces

CAN Partial Networking

  • TJA1145A: High Speed CAN Transceiver with Partial Networking, CAN FD Data Rates up to 5 Mbit/s

More

Features

Scalability

  • High-Voltage BMS chipset solutions for a wide range of applications to reduce development cost and enable faster time to market.

Safety

  • High system safety level ensures proper operation of the battery at all times, protecting the passengers.

Precision

  • Precise and synchronized measurements enable to leverage the full potential of the battery thus maximizing driving range.

Enablement

  • For each of the boards included in the enablement kit, hardware schematics, PCB layouts and gerber files will be available on the NXP website for download (NDA required)
  • Software development suite downloadable upon activation of the registration ID included in the kit.
  • Scalable Functional Safety documentation set (NDA required)

Buy Options

RD-HVBMSCTBUN-Image

Click to expand

  • $2699.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 17
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-14CTCABLE25-Image

Click to expand

  • $34.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 29
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
POLYBNDLSTRV1-Image

Click to expand

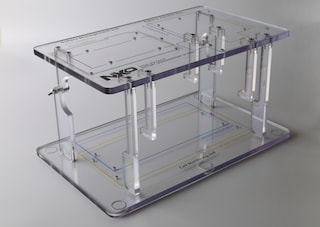

  • POLYBNDLSTRV1
    Active

  • Polycarbonate structure to mount the RD-HVBMSCT800BUN or RD-HVBMSCTBUN.

  • Kit contains:

    • Polycarbonate structure
  • $330.63 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
