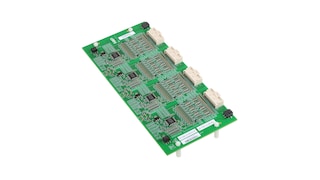

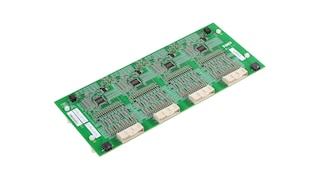

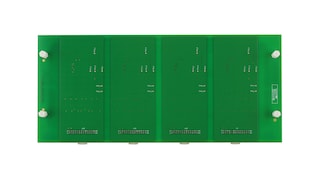

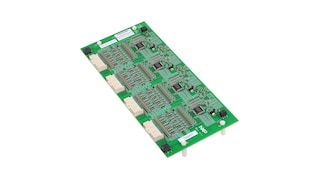

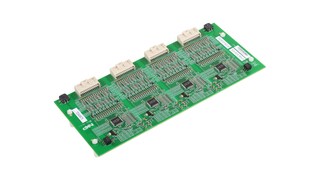

HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33775A - RD33775ACNTEVB

Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

MC33775: 14 Channel Li-Ion Battery Cell Controller IC ASIL D

Features

Voltage Measurement

4 MC33775A Battery cell controllers (BCCs) for up to 56 cells, extendable by adding more CMUs to the daisy chain
Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

8 analog inputs (including temperature sensors) or GPIOs with advanced filtering per BCC

Cell Balancing

Integrated temperature-controlled cell balancing with up to 300 mA (100 mA using default setup)

Communication

Isolated electrical transport protocol link (ETPL) communication between BJB and BMU

Cost Reduction

Optimized BOM using capacitive isolation on board

Buy Options

Click to expand

RD33775ACNTEVB
Active
HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33775A (CMU).
Kit contains:
- 1 RD33775ACNTEVB board
- 4 supply cables
- 1 ETPL cable

$493.35 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 5
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors
