HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33774ATA

RD33774CNT3EVB Active

Roll over image to zoom in

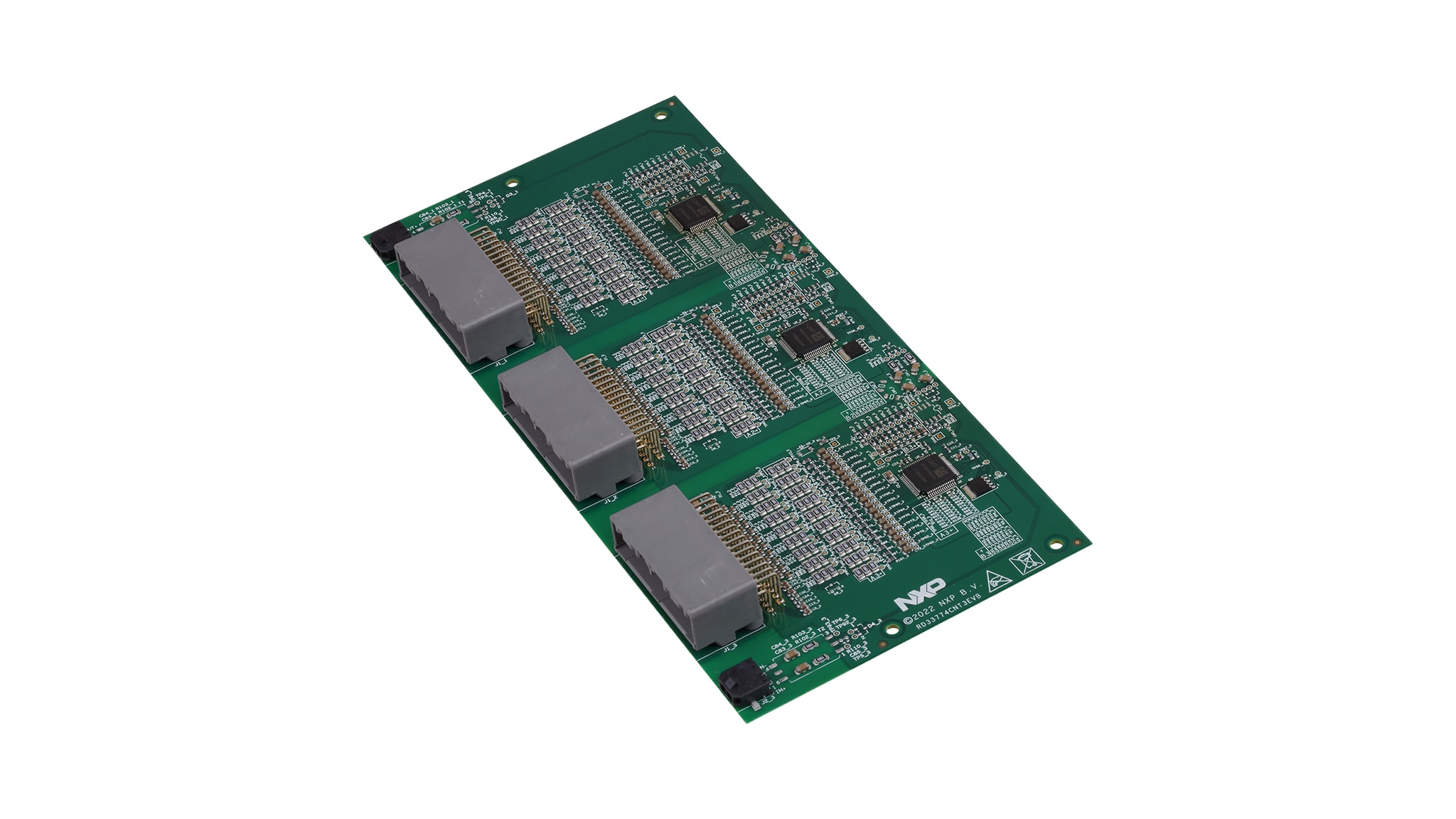

The RD33774CNT3EVB is a centralized cell monitoring unit (CMU) reference design with electrical transport protocol link (ETPL) communication. It is meant for rapid prototyping of a 800 V high-voltage battery management system (HVBMS) hardware and software. This board contains three MC33774 analog front ends (AFEs) in a daisy chain.

This board is part of the RD-HVBMSCT800BUN reference design bundle using ETPL.

Block Diagram

RD33774CNT3EVB

RD33774CNT3EVB RD33774PC3EVB Block Diagram
Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

  • MC33774: 18 Channel Li-Ion Battery Cell Controller IC ASIL D

Features

Voltage Measurement

  • 3 MC33774ATA battery cell controllers (BCCs) for up to 54 cells, extendable by adding more CMUs to the daisy chain
  • Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

  • 8 analog inputs (including temperature sensors) or GPIOs with advanced filtering per BCC

Cell Balancing

  • Integrated temperature-controlled cell balancing with up to 300 mA (100 mA using default setup)

Communication

  • Isolated electrical transport protocol link (ETPL) communication between CMU and BMU

Cost Reduction

  • Optimized BOM using capacitive isolation on and off board

Buy Options

RD33774CNT3EVB-Image

Click to expand

  • RD33774CNT3EVB
    Active

  • HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33774ATA.

  • Kit contains:

    • 1 RD33774CNT3EVB board
    • 3 supply cables
    • 1 ETPL cable

    Note: Optional BATT-18EMULATOR cell emulator is available for this board.

  • For a quantity of 1
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 17
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-18CTCABLE30-Image

Click to expand

  • $25.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
