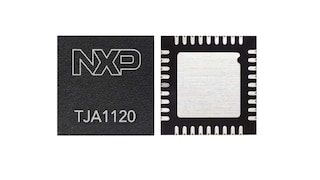

TJA1120, ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
TJA1120, NXP’s 1000BASE-T1 PHY, scales automotive ethernet speed grade up to the 1 Gbps. The device comes in compact package HVQFN36 (6 x 6 mm) for space constraint use cases. The PHY is drop in compatible with TJA1103 to equip assembly options of platform designs with the optimized PHY product for 100 Mbps or 1 Gbps data rate. TJA1120 supports shielded (STP) and unshielded twisted pair (UTP) cable applications. The PHY is developed according to ISO26262 and achieves ASIL B. It integrates OPEN Alliance TC-10 compliant wake-up forwarding over the ethernet data line.
Product Details
Block Diagram
Features
Key Features
- IEEE802.3 bp compliant 1000BASE-T1 PHY
- AEC-Q100 Grade 1
- HVQFN 36-pin package (6 × 6 mm)
- RGMII (TJA1120A) or SGMII (TJA1120B)
- OPEN Alliance TC-10
Optimized for Automotive Use Cases
- ISO 26262, ASIL B compliant
- IEEE1588v2 and 802.1AS-rev 2-step timestamping support
- Support for shielded and unshielded twisted-pair cable
- Enhanced integrated pulse shaping for low RF emissions
Diagnosis
- Open alliance TC-12 advanced PHY features
- Built-in self-test (BIST)
- Real-time monitoring of link stability and data quality
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 7 hardware offerings
-
Evaluation and Development BoardsEthernet PHY Evaluation Kit
-
Evaluation and Development BoardsSABRE Development Boards for TJA11xx PHYs
-
Evaluation and Development BoardsSAF86xxL Evaluation Kit with Antenna
-
Additional hardware available. View our featured partner solutions.
-
Evaluation and Development BoardsEvaluation Baseboard for TJA11xx PHYs
-
Evaluation and Development BoardsSAF85xx Evaluation Kit with Antenna
Software
Quick reference to our software types.
2 software files
-
BSPs and Device Drivers
TJA11xx Linux driver for IEEE 802.3 Clause 45 managed PHYs
-
BSPs and Device Drivers
XJA11XX Ethernet Phy Real-Time Drivers AUTOSAR 4.4 (ISO26262) License
