The NXP SJA1110 is a family of four pin-compatible and software-compatible automotive Ethernet Switch SoC offering a scalable solution for all automotive applications.
All SJA1110 variants come with hardware-assisted security and safety capabilities, multi-gigabit SGMII interfaces and the latest AVB and TSN standards.
NXP also offers a complete software package including SDK, AUTOSAR® drives and AVB synchronization stack.

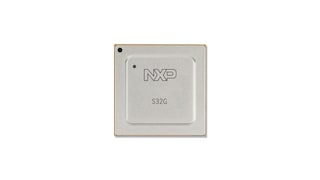

SJA1110 is further optimized to work with the S32G vehicle networking processor to enable distributed firewall and Intrusion-Detection/Prevention Systems (IDPS) reaching unmatched levels of scalability and performance.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
SJA1105PEL/QEL/REL/SEL Series Ethernet Switches
4 results
Include 0 NRND
Part | Order | CAD Model | Status | Package Type | Package Termination Count | Product Category | Number of Ports | xMII Interfaces | SGMII Interfaces | RGMII Interfaces | AEC-Q100 Temperature Range | TC10 support | Single Supply | Safety Level | AVB/TSN | ESD Robustness | Diagnostics | Additional Features | NXP Software |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | LFBGA256 | 256 | Switch | 10 | 2 x MII/RMII - 1.8/2.5/3.3V | 1 x 100/1000, 2 x 100/1000/2500 | 2 x RGMII - 1.8/2.5/3.3V | grade 2 | Yes | no | up to ASIL B | 802.1AS2020, 802.1CB, 802.1Qav, 802.1Qbv, 802.1Qci | ±2 kV HBM | Link failure and link losses, Link training time, Signal quality Index, Temperature Sensor, Voltage Presence | Advanced Secure Boot, DPI Inspection, Deep Packet Inspection Engine | 802.1AS, Classic AUTOSAR driver, Linux driver, SDK | |||
Active | LFBGA256 | 256 | Switch | — | 2 x MII/RMII - 1.8/2.5/3.3V | 2 x 100/1000/2500 | 2 x RGMII - 1.8/2.5/3.3V | grade 2 | Yes | no | up to ASIL B | 802.1AS2020, 802.1CB, 802.1Qav, 802.1Qbv, 802.1Qci | ±2 kV HBM | Link failure and link losses, Link training time, Signal quality Index, Temperature Sensor, Voltage Presence | Advanced Secure Boot, DPI Inspection, Deep Packet Inspection Engine | 802.1AS, Classic AUTOSAR driver, Linux driver, SDK | |||
Active | LFBGA256 | 256 | Switch | — | 2 x MII/RMII - 1.8/2.5/3.3V | 1 x 100/1000/2500 | 2 x RGMII - 1.8/2.5/3.3V | grade 2 | Yes | no | up to ASIL B | 802.1AS2020, 802.1CB, 802.1Qav, 802.1Qbv, 802.1Qci | ±2 kV HBM | Link failure and link losses, Link training time, Signal quality Index, Temperature Sensor, Voltage Presence | Advanced Secure Boot, DPI Inspection, Deep Packet Inspection Engine | 802.1AS, Classic AUTOSAR driver, Linux driver, SDK | |||
Active | LFBGA256 | 256 | Switch | — | 2 x MII/RMII - 1.8/2.5/3.3V | 1 x 100/1000, 2 x 100/1000/2500 | 2 x RGMII - 1.8/2.5/3.3V | grade 1 | Yes | no | up to ASIL B | 802.1AS2020, 802.1CB, 802.1Qav, 802.1Qbv, 802.1Qci | ±2 kV HBM | Link failure and link losses, Link training time, Signal quality Index, Temperature Sensor, Voltage Presence | Advanced Secure Boot, DPI Inspection, Deep Packet Inspection Engine | 802.1AS, Classic AUTOSAR driver, Linux driver, SDK |
