MPC5777C Battery Management Systems (BMS) and Engine Control Development Board 2

MPC5777C-DEVB2

Roll over image to zoom in

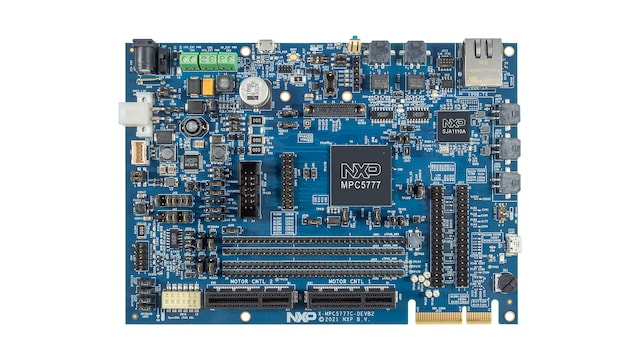

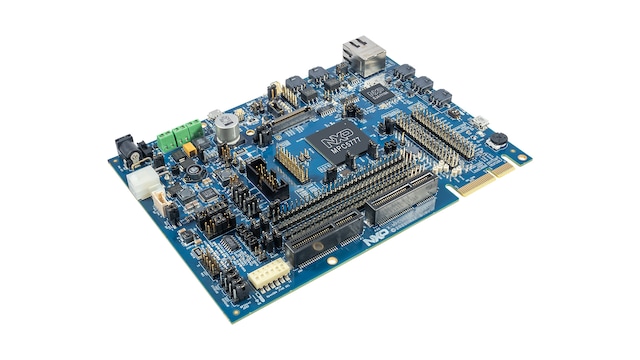

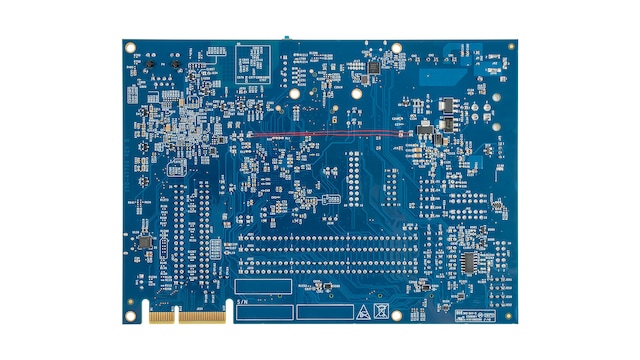

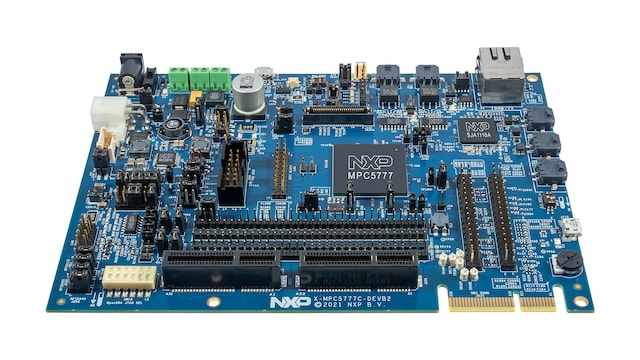

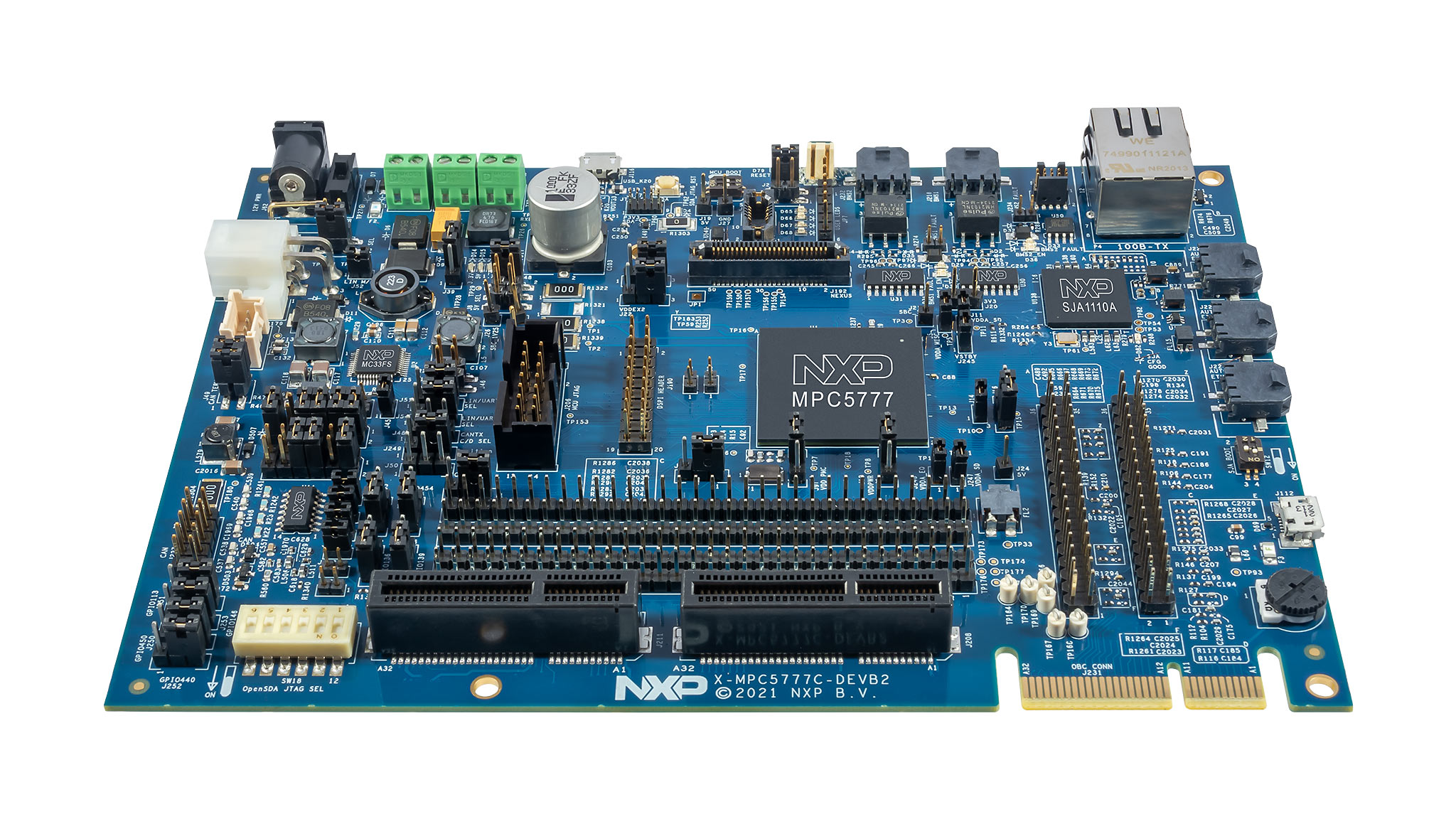

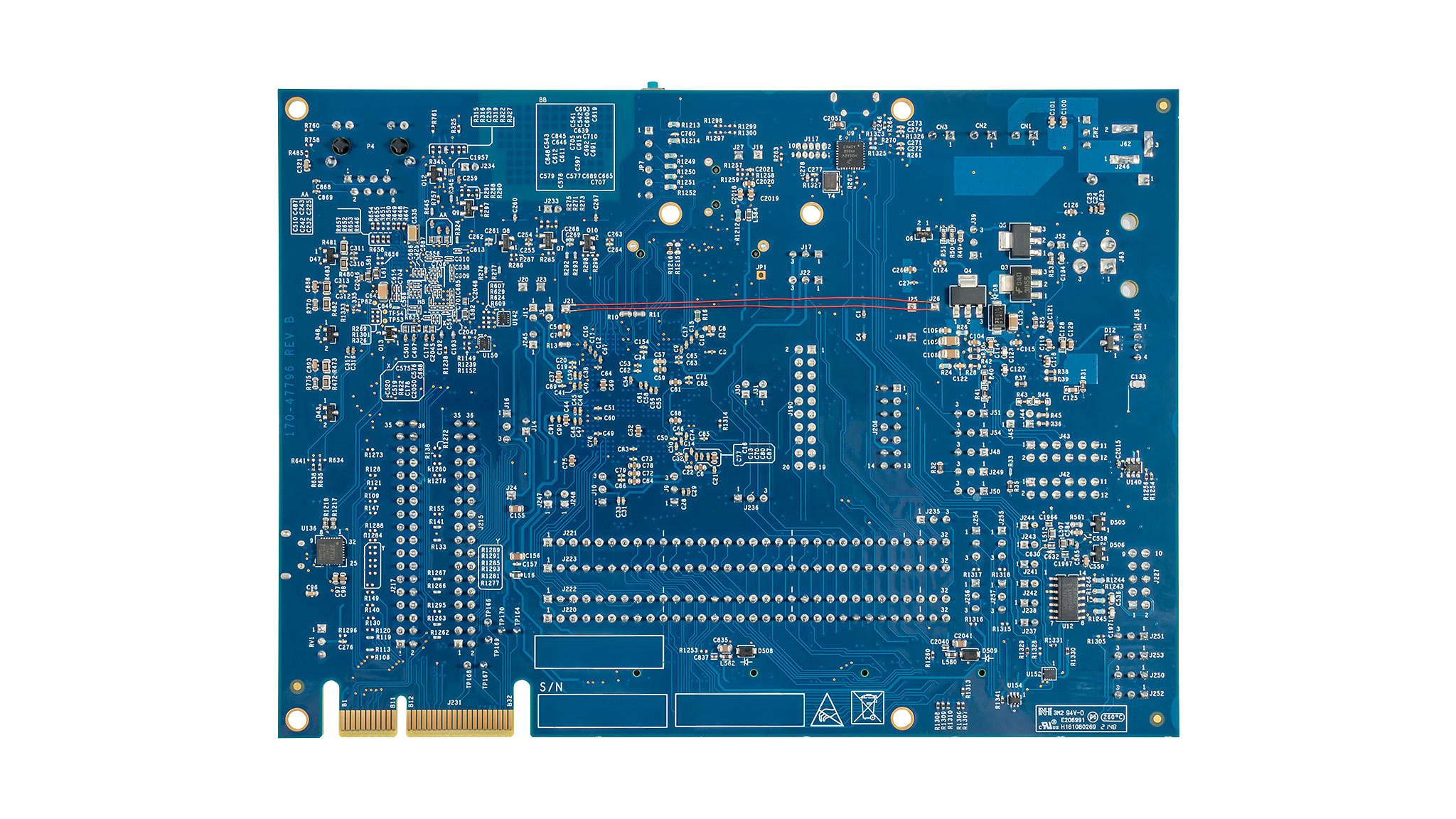

The MPC5777C-DEVB2 is a development board engineered for a range of applications: from traction motors and battery management systems (BMS) to internal combustion engines and transmissions.

Based on the 32-bit Power Architecture® MPC5777C ultrareliable microcontroller, together with the FS65 system basis chip (SBC), the SJA1110 and TJA1048T Ethernet and CAN transceivers, the MPC5777C-DEVB2 facilitates hardware and software development, offering system performance, safety and security.

Block Diagram

MPC5777C-DEVB2 Block Diagram

MPC5777C-DEVB2 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Power Management

System Basis Chips

  • FS6500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Features

Key Features

  • 6-phase PMSM motor control development solution
  • Dual 3-phase motor development solution
  • TSN capability upgrade via SJA1110
  • Dual BMS implementation for loopback control for higher-level safety
  • DC/DC control board option with DC/DC driver board

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based MPC5777C
  • Two independent Power Architecture z7 cores with up to 300 MHz operation
  • Single z7 core in Lockstep with one of the main cores

Interfaces

  • USB to Serial Interface
  • Dual Motor Control, Ethernet, CAN, LIN, JTAG

Software

Buy Options

MPC5777C-DEVB2-Image

Click to expand

  • MPC5777C-DEVB2
    Active

  • MPC5777C Battery Management Systems (BMS) and Engine Control Development Board 2.

  • Kit Contains

    • MPC5777C BMS and Engine Control Development Board
  • $1590.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
