Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management

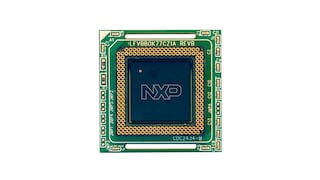

MPC5777C Active

The MPC5777C Power Architecture® MCU targets industrial and automotive engine control applications that require advanced performance, timing systems, security, and functional safety capabilities. The family offers a high-performance multicore architecture with industry standard eTPU based timer system. A Flash offering that supports code expansion, a security module, and packaging options are available along with the highest level of functional safety (ASIL D) support.

Block Diagram

MPC5777C Block Diagram

MPC5777C Engine Control MCU
Get diagram PDF

Features

General

  • Two independent Power Architecture z7 cores with up to 300 MHz operation
  • Single z7 core in Lockstep with one of the main cores
  • 8M Flash
  • 512kB total SRAM
  • 3 eTPU2 timers with 96 channels
  • eMIOS timer with 32 channels
  • Ethernet 10/100
  • Four Sigma Delta and four eQADC converters
  • Built to support functional safety (ISO 26262/ASIL D)
  • 416 and 516 BGA
  • -40 to 125C Ta Operation
