MPC5777C Engine Management Evaluation System

MPC5777CEVB Active

Roll over image to zoom in

The MPC5777CEVB is an evaluation system for engine management and power inverter applications requiring advanced performance, timing systems, and functional safety capabilities.

Based on the 32-bit Power Architecture® MPC5777C ultra-reliable microcontroller, the MPC5777CEVB includes a motherboard and two different (MCU package options) daughterboards working together or as standalone.

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based MPC5777C

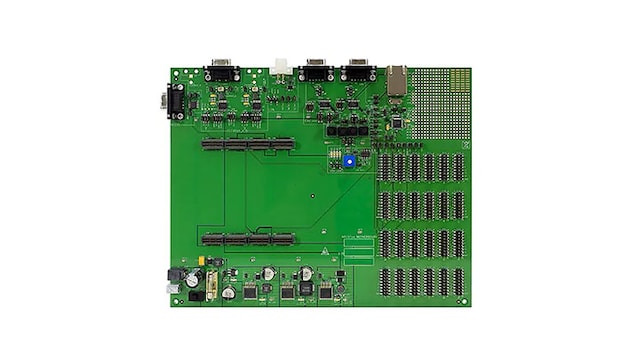

MPC57XXXMB motherboard

  • 2 x CAN, 1 x LIN with Molex Connector, 1 x SCI channel with transceiver and DB-9 Connector
  • 2 x FlexRay channels with jumper enable, transceiver, and DB-9 Connector
  • 1 x Ethernet PHY and RJ45 connector
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails
  • 1 x Potentiometer for analog voltage generation, 4 x user LEDs, 4 x push-button switches
  • 12 VDC power supply input barrel connector, supply included

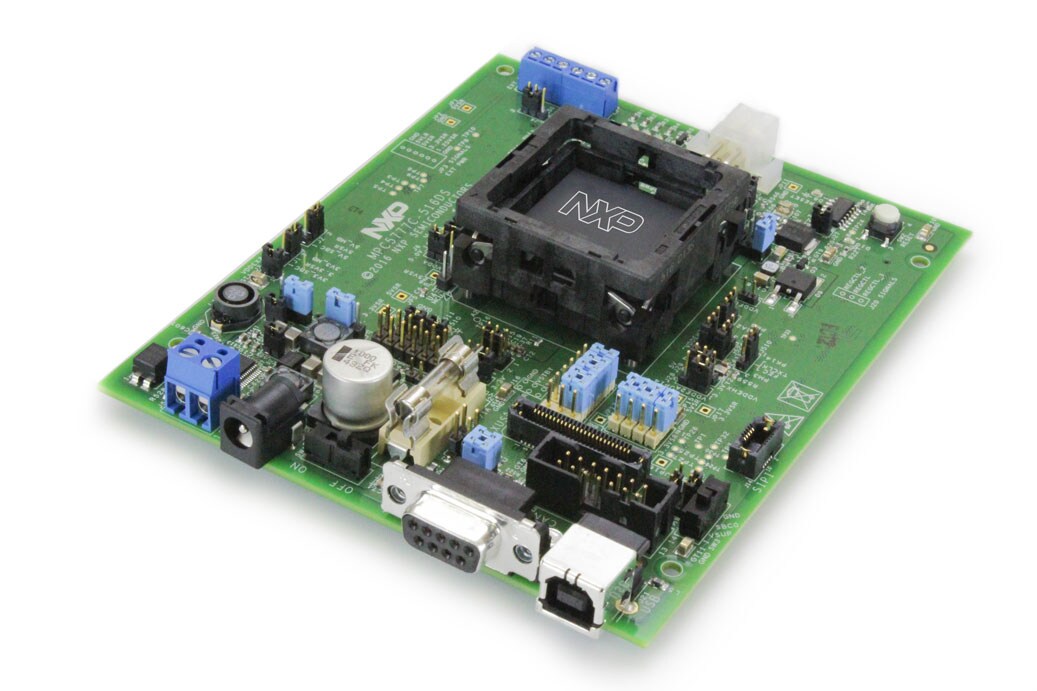

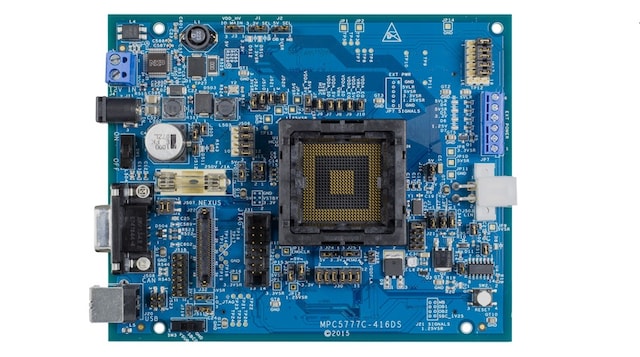

MPC5777C-416DS daughterboard

  • Socketed MPC5777C in a 416 MAPBGA package
  • 40 MHz onboard clock oscillator circuit in EVB for MCU Clocking
  • USB (Type B) / UART transceiver to interface with MCU
  • Liberal scattering of ground and test points (surface mount loops) placed throughout the EVB
  • Power SBC for standalone function of Daughter Card
  • 1 x CAN, 1 x LIN connector supported by power SBC
  • 1 x standard 14-pin JTAG debug connector, 1 x 50-pin SAMTEC Nexus connector
  • 1 x user reset switch with reset status LEDs and Power Indication LEDs

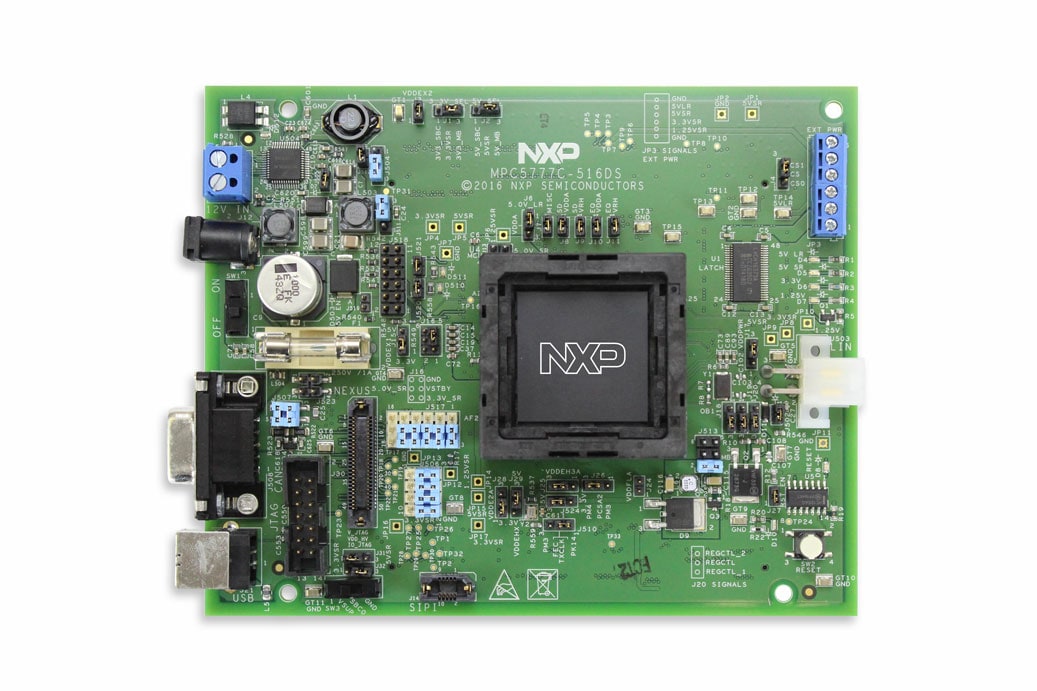

MPC5777C-516DS daughterboard

  • Socketed MPC5777C in a 516 MAPBGA package
  • 40 MHz onboard clock oscillator circuit in EVB for MCU Clocking
  • USB (Type B) / UART transceiver to interface with MCU
  • Liberal scattering of ground and test points (surface mount loops) placed throughout the EVB
  • Power SBC for standalone function of Daughter Card
  • 1 x standard 14-pin JTAG debug connector, 1 x 50-pin SAMTEC Nexus connector
  • 1 x CAN, 1 x LIN connector supported by Power SBC
  • 1 x user reset switch with reset status LEDs and Power Indication LEDs

Buy Options

MPC57XXXMB-Image

Click to expand

  • MPC57XXXMB
    Active

  • MPC57XXX evaluation motherboard.

  • $465.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MPC5777C-416DS-Image

Click to expand

  • MPC5777C-416DS
    Active

  • MPC5775C MAPBGA 416 daughtercard for Engine Management.

  • $709.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

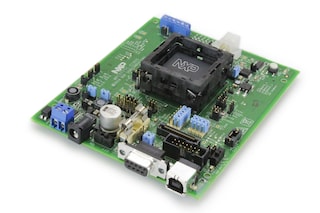

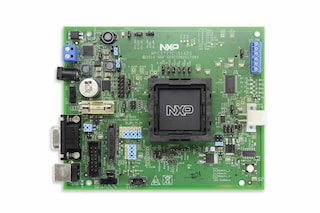

MPC5777C-516DS-Image

Click to expand

  • MPC5777C-516DS
    Active

  • MPC5775C MAPBGA 516 daughtercard for Engine Management.

  • $999.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
