MPC5775BE BMS Evaluation System

MPC5775BE-EVB Active

Roll over image to zoom in

The MPC5775BE-EVB is an evaluation system for battery management systems (BMS) and Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) inverter control applications requiring advanced performance, eTPU based timer system, and up to ASIL D ISO 26262 or IEC 61508 functional safety support.

Based on the 32-bit Power Architecture® MPC5777B/E ultra-reliable microcontroller together with the FS65 System Basis Chip (SBC), the MPC5775BE-EVB includes a motherboard and a daughterboard working together or as standalone.

Supported Devices

Power Management

System Basis Chips

  • FS6500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based MPC5777B/E

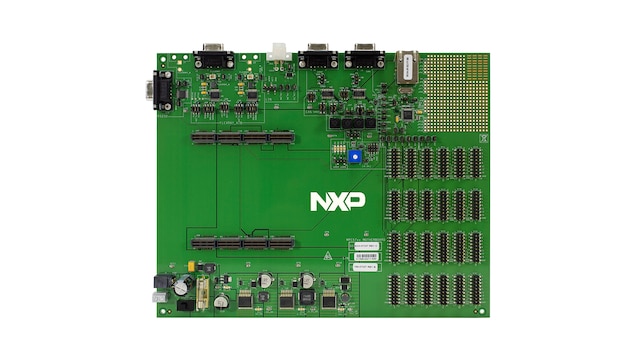

MPC57XXXMB motherboard

  • 2 x CAN, 1 x LIN with Molex Connector, 1 x SCI channel with transceiver and DB-9 Connector
  • 2 x FlexRay channels with jumper enable, transceiver, and DB-9 Connector
  • 1 x Ethernet PHY and RJ45 connector
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails
  • 1 x Potentiometer for analog voltage generation, 4 x user LEDs, 4 x push-button switches
  • 12 VDC power supply input barrel connector, supply included

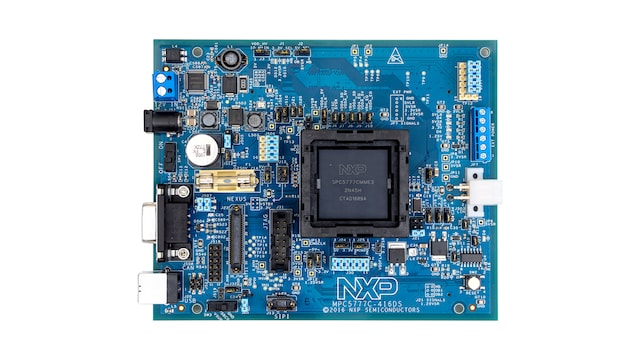

MPC5775BE-416DS daughterboard

  • Socketed MPC5775B/E support in 416 MAPBGA package
  • 40 MHz onboard clock oscillator circuit in EVB for MCU Clocking
  • USB (Type B) / UART transceiver to interface with MCU
  • Liberal scattering of ground and test points (surface mount loops) placed throughout the EVB
  • Power SBC for standalone function of Daughter Card
  • 1 x standard 14-pin JTAG debug connector, 1 x 50-pin SAMTEC Nexus connector
  • 1 x CAN, 1 LIN connector supported by FS65 Power SBC
  • 1 x user reset switch with reset status LEDs and Power Indication LEDs

Buy Options

MPC57XXXMB-Image

Click to expand

  • MPC57XXXMB
    Active

  • MPC57XXX evaluation motherboard.

  • $465.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

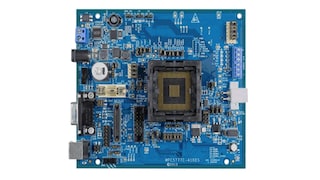

MPC5775BE-416DS-Image

Click to expand

  • MPC5775BE-416DS
    Active

  • MPC5775BE MAPBGA 416 daughtercard for BMS.

    • Adapter board
    • MCU sample of both MPC5775B and MPC5775E
  • $639.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
