MPC5777M Engine Management Evaluation System

MPC5777MEVB Active

Roll over image to zoom in

The MPC5777MEVB is an evaluation system for engine management and power inverter applications requiring advanced performance, timing systems, and functional safety capabilities.

Based on the 32-bit Power Architecture® MPC5777M ultra-reliable microcontroller, the MPC5777MEVB includes a motherboard and two different (MCU package options) daughterboards working together or as standalone.

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5777M: Ultra-Reliable MPC5777M MCU for Automotive and Industrial Engine Management

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based >MPC5777M

MPC57XXXMB motherboard

  • 2 x CAN, 1 x LIN with Molex Connector, 1 x SCI channel with transceiver and DB-9 Connector
  • 2 x FlexRay channels with jumper enable, transceiver, and DB-9 Connector
  • 1 x Ethernet PHY and RJ45 connector
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails
  • 1 x Potentiometer for analog voltage generation, 4 x user LEDs, 4 x push-button switches
  • 12 VDC power supply input barrel connector, supply included

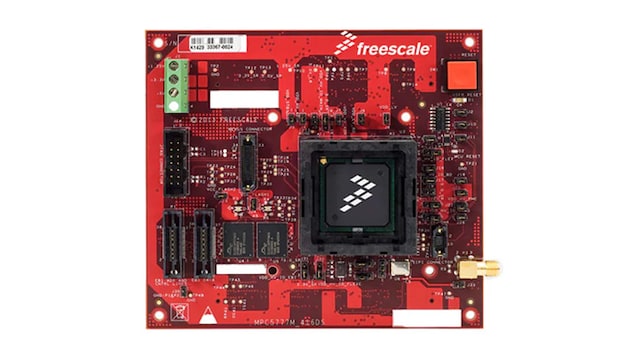

MPC5777M-416DS daughterboard

  • Adapter supports MPC5777M in 416BGA package
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode power)
  • Socket for optional external oscillator
  • Robust Nexus and 14-pin JTAG debug connectors

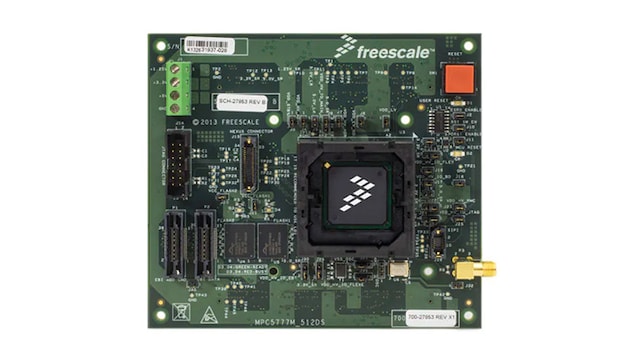

MPC5777M-512DS daughterboard

  • Adapter supports MPC5777M in 512BGA package
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode power)
  • External Synchronous SRAM (4Mbit) with jumper configurable CS0/CS1 chip select
  • Socket for optional external oscillator
  • Robust Nexus and 14-pin JTAG debug connectors

Buy Options

MPC5777M-416DS-Image

Click to expand

  • MPC5777M-416DS
    Active

  • MPC5775C MAPBGA 416 daughtercard for Engine Management.

  • $729.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

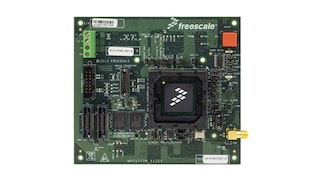

MPC5777M-512DS-Image

Click to expand

  • MPC5777M-512DS
    Active

  • MPC5775C MAPBGA 512 daughtercard for Engine Management.

  • $639.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MPC57XXXMB-Image

Click to expand

  • MPC57XXXMB
    Active

  • MPC57XXX evaluation motherboard.

  • $465.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
