MicroSys miriac™ EK5744 Funcional Safety Evaluation Kit

EK-5744P Active

Roll over image to zoom in

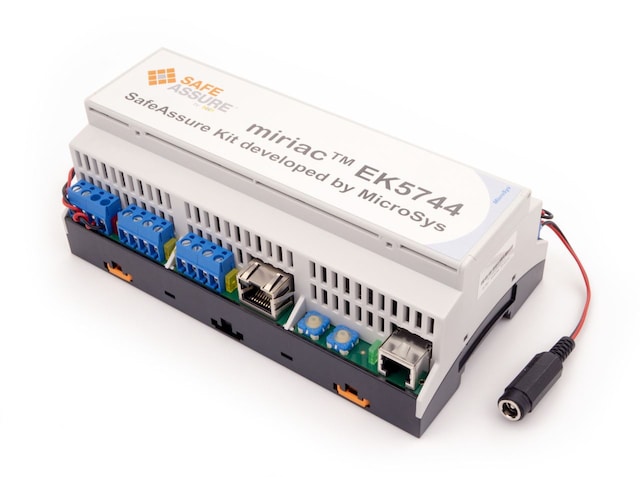

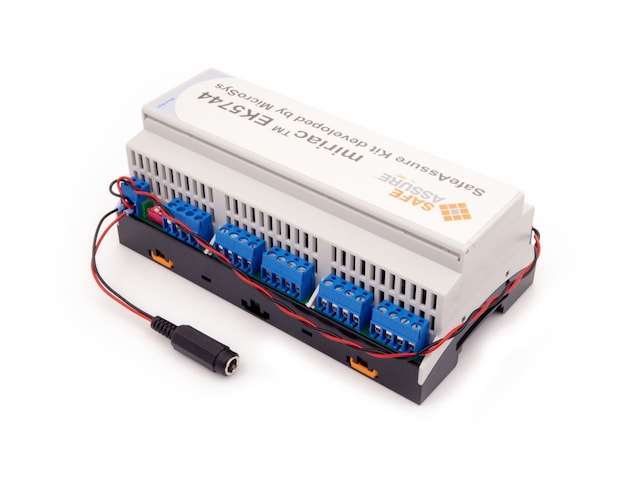

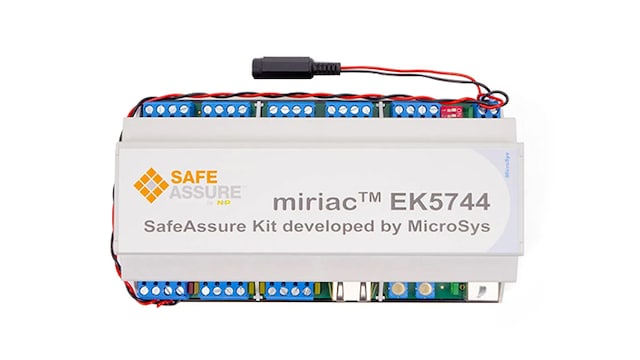

The miriac™ EK5744 is a Functional Safety Evaluation Kit for evaluation, design and prototyping applications requiring IEC 61508/62061 (SIL1 and SIL2), ISO 13849 categories 1 and 2 and performance levels analog-to-digital or similar standards.

Developed in partnership with MicroSys Electronics and based on the 32-bit Power Architecture® MPC5744P ultra-reliable microcontroller, the miriac™ EK5744 supports NXP's SafeAssure program and provides a solid based for custom functional safety developments. A concept study for use according to IEC 61508/62061 SIL3 and ISO 13849 category 2 for the MPC5744P MCU and MC33907 power SBC are in progress.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

Power Management

System Basis Chips

  • MC33907: Safe System Basis Chip DC/DC up to 800 mA

Features

Microcontroller

  • 32-bit Power Architecture e200z4 based MPC574xP

System Basis Chip (SBC)

  • MC33907 Safe System Basis Chip DC/DC up to 800 mA

General Features

  • CANopen safety (CiA 304), Safety over EtherCAT, PROFIsafe safety and openSAFETY protocols on request
  • I/O supports redundancy
  • Customized firmware, PLC on request
  • Advanced diagnostics on all I/Os and power inputs
  • AUTOSAR®-compatible hardware

Interfaces

  • Up to 4 safe analog inputs, upon desired SIL level
  • Up to 4 safe digital inputs, upon desired SIL level
  • Up to 4 safe digital outputs
  • Ethernet
  • Basic abstraction layer for bus interfaces

Buy Options

EK-MPC5744P-Image

Click to expand

  • EK-MPC5744P
    Active

  • MicroSys miriac™ EK5744 Funcional Safety Evaluation Kit.

  • $2608.20 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
