MPC5744P Functional Safety Evaluation Daughter Board

KITMPC5744DBEVM Active

Roll over image to zoom in

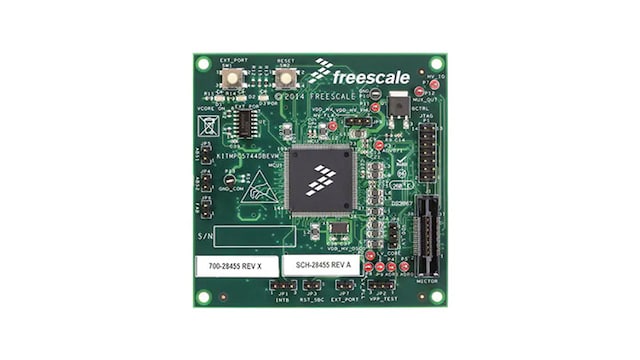

The KITMPC5744DBEVM is an evaluation daughter board for Functional Safety applications. The KITMPC5744DBEVM cannot operate as a standalone board.

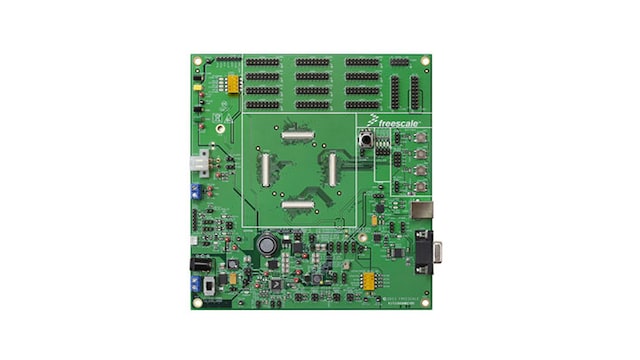

Based on the 32-bit Power Architecture® MPC5744P ultra-reliable microcontroller, the KITMPC5744DBEVM requires the KIT33908MBEVBE mother board to create a safety ecosystem platform base for reaching the highest ISO 26262 functional safety levels.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

Power Management

System Basis Chips

  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z4 based MPC574xP

System Basis Chip (SBC)

  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore
  • Designed to be plugged on the KIT33908MBEVBE mother board
  • Preloaded software in the KITMPC5744DBEVM daughter board to operate the KIT33908MBEVBE mother board.

Power

  • Power supply and intelligent power management including enhanced safety features is provided to the KITMPC5744DBEVM daughter board from the KIT33908MBEVBE mother board.
  • Separated power supplies for the core and the ADC
  • High precision VCCA power supply connected to the ADC reference voltage

Interfaces

  • Nexus and JTAG connectors for simple Debug
  • Possible to connect USB / RS-232 through the KIT33908MBEVBE mother board
