MPC-LS Vehicle Network Processing Reference Design

MPC-LS-VNP-RDB Preproduction

Roll over image to zoom in

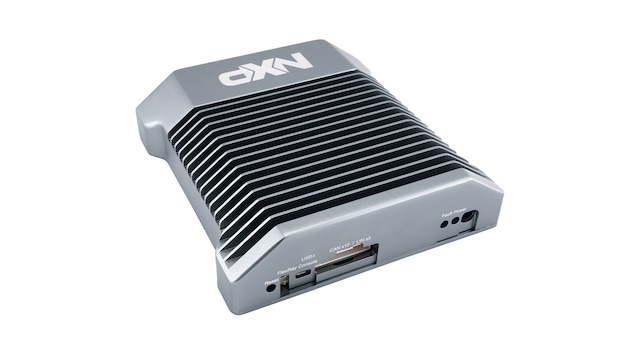

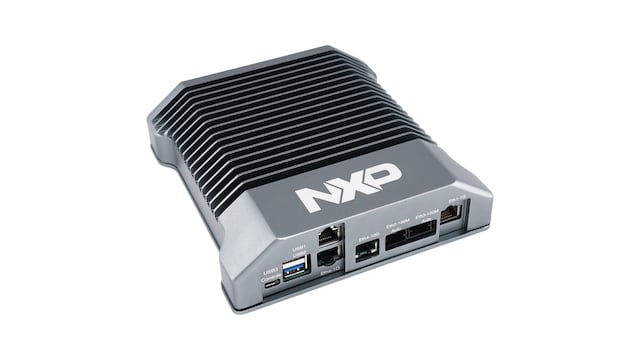

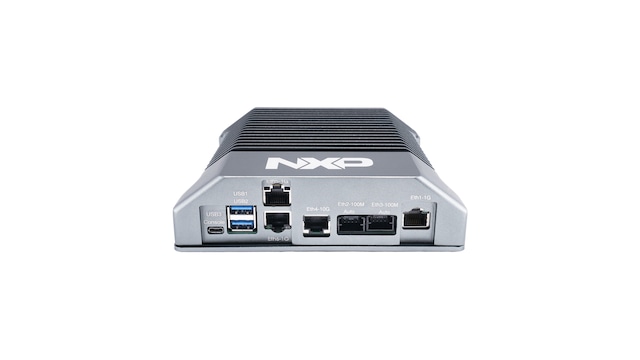

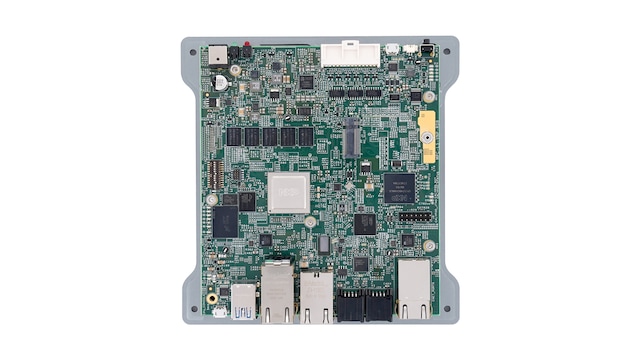

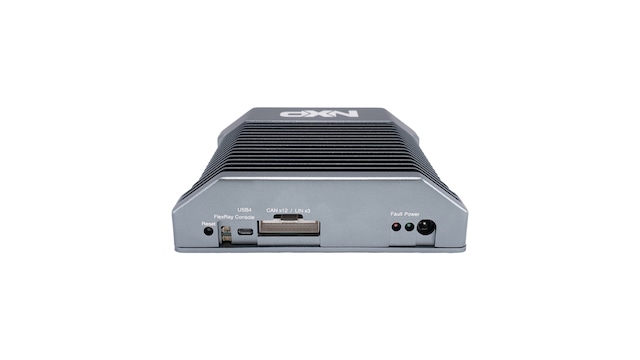

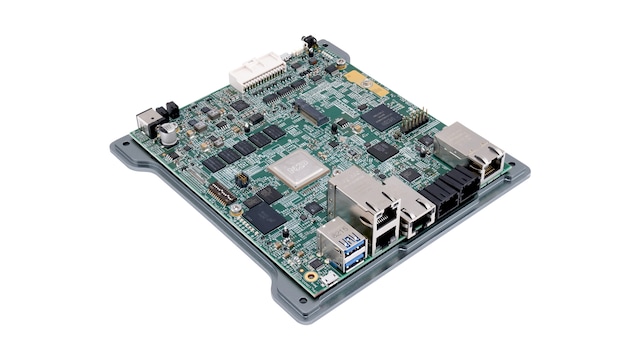

The MPC-LS-VNP-RDB is a reference design engineered for vehicle network processing (VNP) applications, used by carmakers, suppliers, and software ecosystem partners to accelerate the development of next-generation service-oriented gateways. Combining automotive and enterprise networking technology, the MPC-LS-VNP-RDB offers high levels of computing, real-time network performance, multi-gigabit packet acceleration, and security for new service-oriented gateways.

The MPC-LS-VNP-RDB integrates standards-based, open source software with feature-rich hardware for establishing a common and open framework for secure service delivery within a vehicle network.

MPC-LS Vehicle Network Processing Reference Design - Fact Sheet

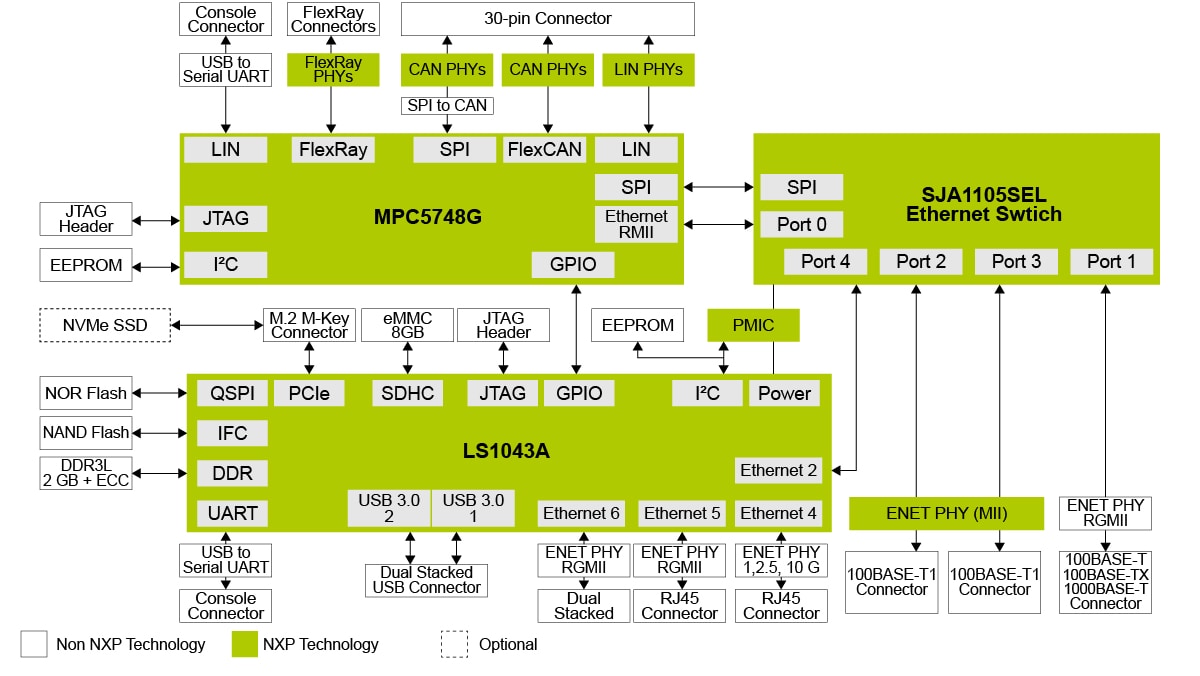

Block Diagram

Vehicle Network Processing

MPC-LS-VNP-RDBD
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xB-C-G: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Layerscape Processors

  • LS1043A: Layerscape® 1043A and 1023A Processors

Power Management

PMICs

  • PF81-PF82: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1105EL: SJA1105EL: Five- Ports AVB Automotive Ethernet Switch

Automotive Ethernet PHYs

  • TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver

Automotive LIN Solutions

  • TJA1024HG: Quad LIN 2.2 A/SAE J2602 Transceiver

Features

  • Up to 10 gigabit Ethernet support with the packet forwarding engine
  • Modular approach for future processor upgrades
  • Software Enablement
    • Support and demos for bare metal, AUTOSAR® and Linux®
  • Interfaces
    • 1 x 10GBASE-T Ethernet
    • 3 x 1000BASE-TX Ethernet
    • 2 x Automotive 100BASE-T1
    • 2 x FlexRay™supported by TJA1081 node transceiver
    • 12 x CAN/CAN FD supported by TJA1048 dual CAN transceiver
    • 7 x LIN by TJA1024 quad LIN transceiver
    • 2 x USB 3.0
    • PCI Express® Gen2

Buy Options

MPC-LS-VNP-RDB-Image

Click to expand

  • MPC-LS-VNP-RDB

  • MPC-LS Vehicle Network Processing Reference Design.

  • Kit contains:

    • MPC-LS-VNP reference design board (with enclosure).
    • Power supply
    • Ethernet cable
    • USB cable
  • $995.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
